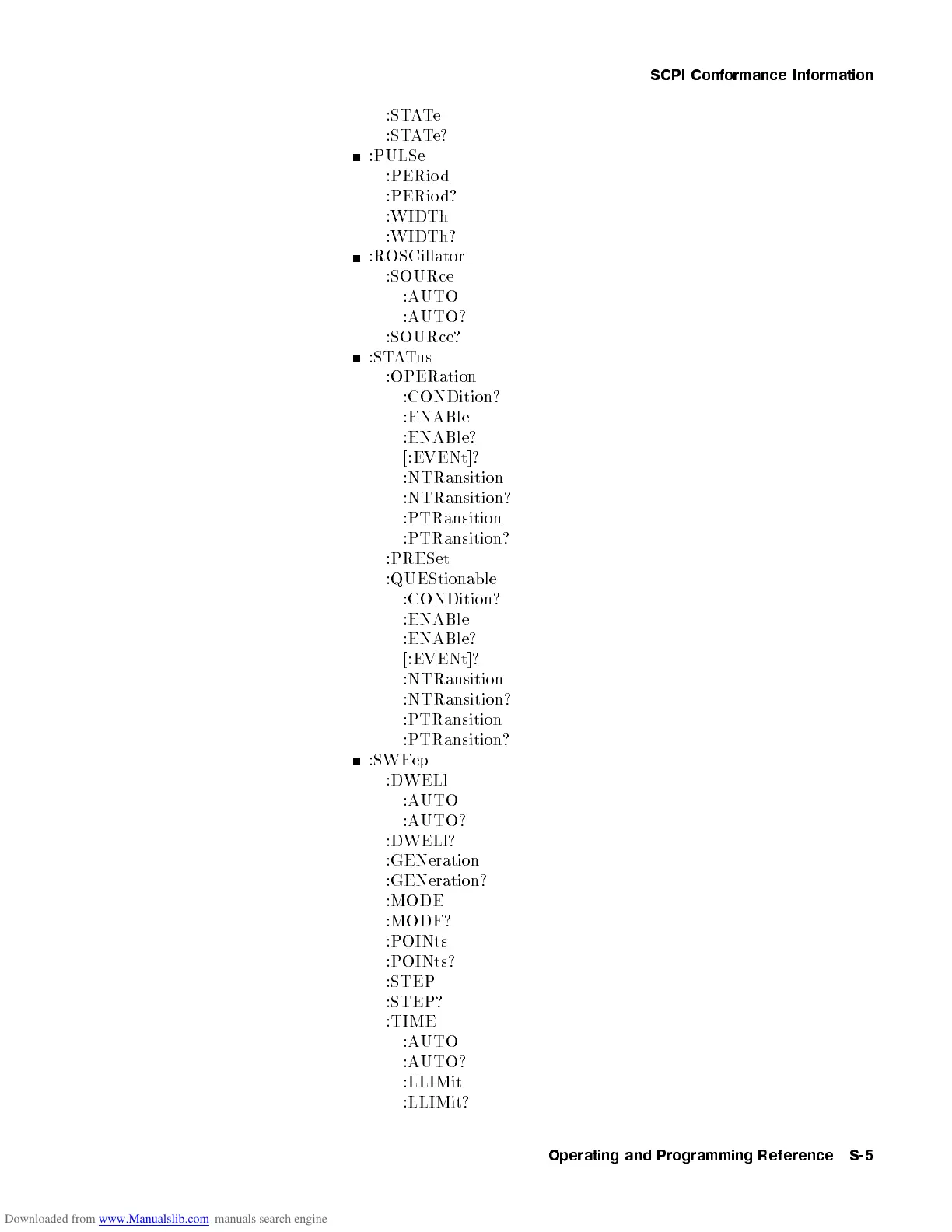

SCPI Conformance Information

:STATe

:STATe?

:PULSe

:PERio d

:PERio d?

:WIDTh

:WIDTh?

:ROSCillator

:SOURce

:AUTO

:AUTO?

:SOURce?

:STATus

:OPERation

:CONDition?

:ENABle

:ENABle?

[:EVENt]?

:NTRansition

:NTRansition?

:PTRansition

:PTRansition?

:PRESet

:QUEStionable

:CONDition?

:ENABle

:ENABle?

[:EVENt]?

:NTRansition

:NTRansition?

:PTRansition

:PTRansition?

:SWEep

:DWELl

:AUTO

:AUTO?

:DWELl?

:GENeration

:GENeration?

:MODE

:MODE?

:POINts

:POINts?

:STEP

:STEP?

:TIME

:AUTO

:AUTO?

:LLIMit

:LLIMit?
