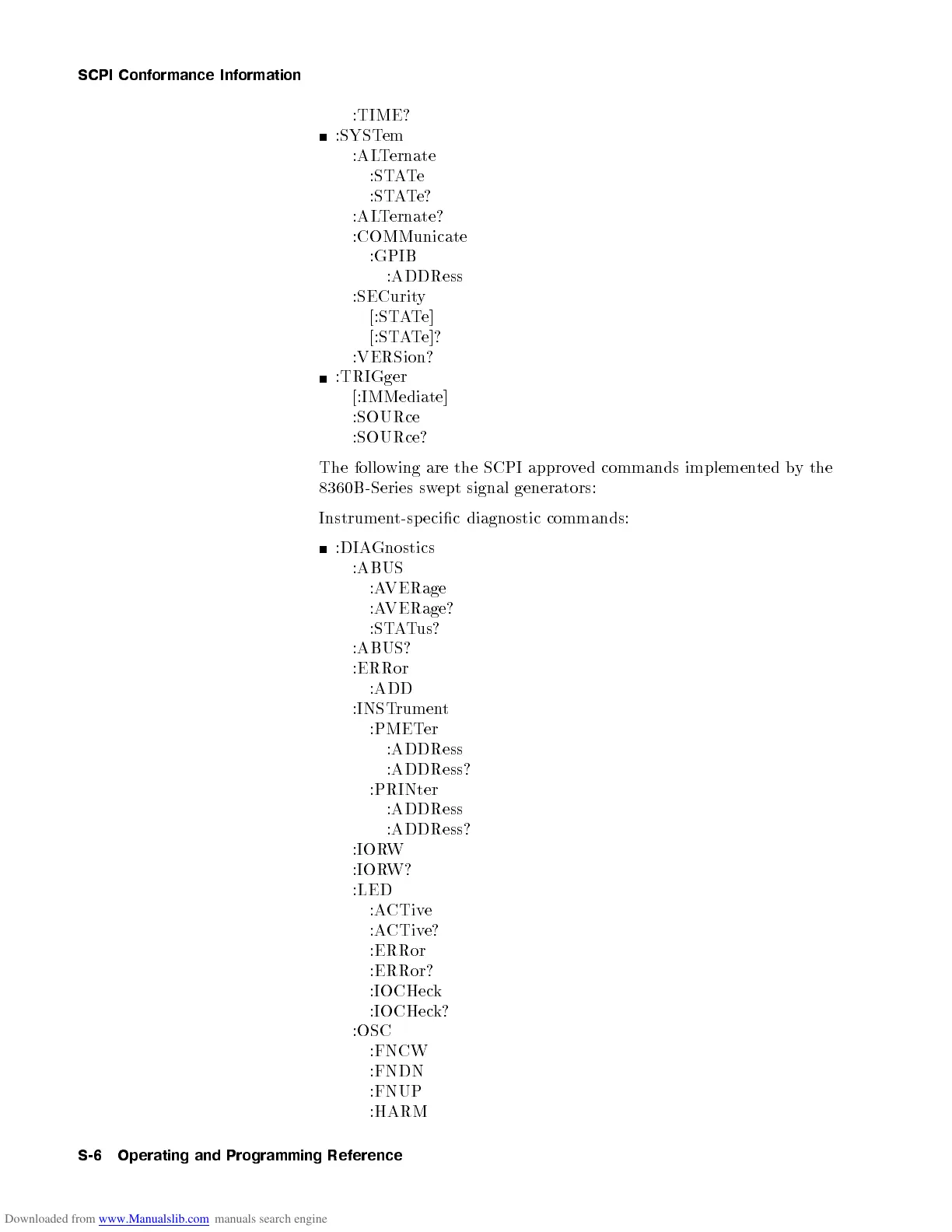

SCPI Conformance Information

:TIME?

:SYSTem

:ALTernate

:STATe

:STATe?

:ALTernate?

:COMMunicate

:GPIB

:ADDRess

:SECurity

[:STATe]

[:STATe]?

:VERSion?

:TRIGger

[:IMMediate]

:SOURce

:SOURce?

The following are the SCPI approved commands implemented by the

8360B-Series swept signal generators:

Instrument-sp ecic diagnostic commands:

:DIAGnostics

:ABUS

:AVERage

:AVERage?

:STATus?

:ABUS?

:ERRor

:ADD

:INSTrument

:PMETer

:ADDRess

:ADDRess?

:PRINter

:ADDRess

:ADDRess?

:IORW

:IORW?

:LED

:ACTive

:ACTive?

:ERRor

:ERRor?

:IOCHeck

:IOCHeck?

:OSC

:FNCW

:FNDN

:FNUP

:HARM
