Agilent Technologies 8560E - Figure 2-56. Trigger Configuration for Gated Method, Non-Option 001

Chapter 2 123
Making Measurements
Example 9: Adjacent Channel Power Measurement
In this implementation , α and the edge of the −∞ dB region are
compensated for the effects of a non-zero resolution bandwidth filter on
the effective weighting function.

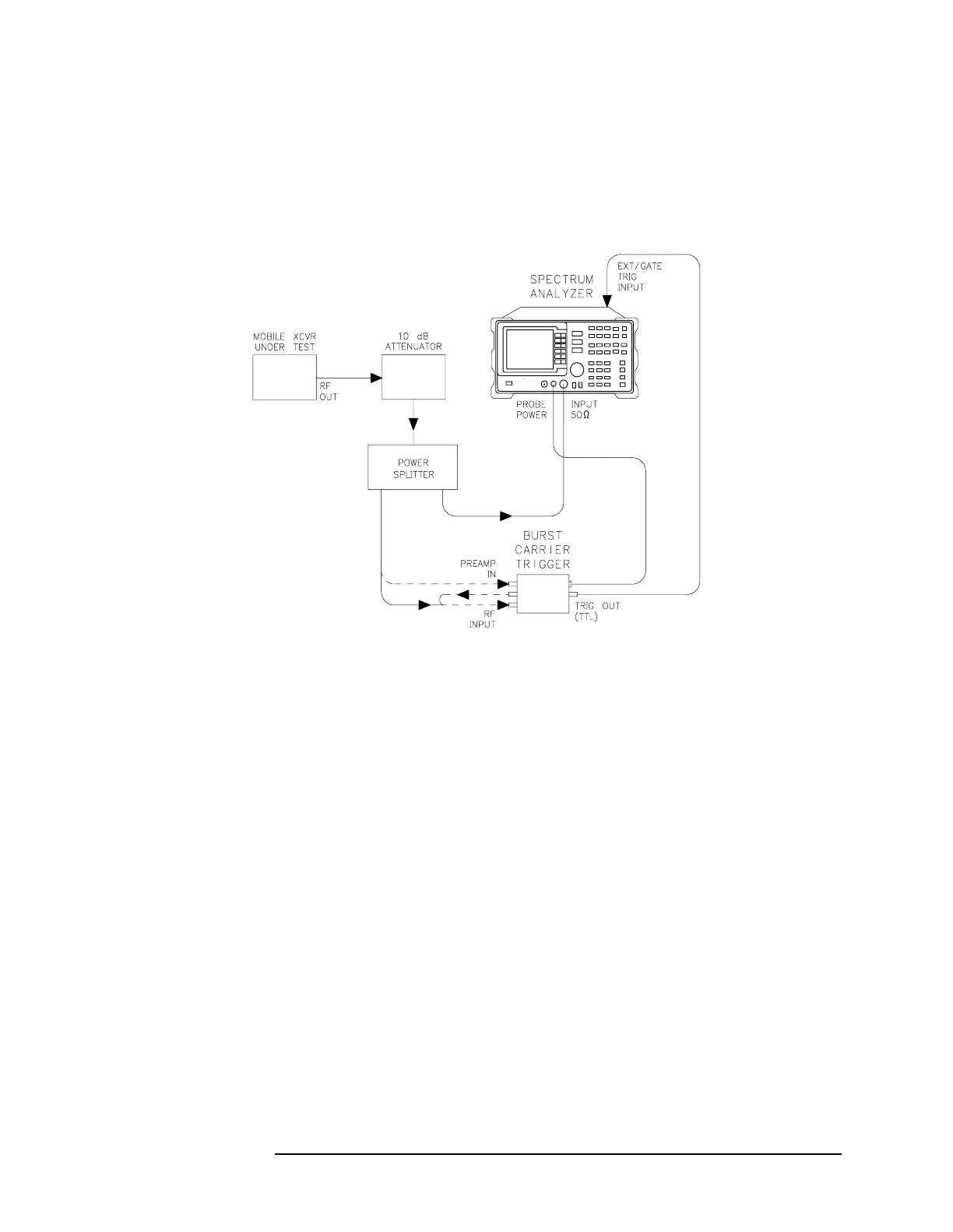

Figure 2-56 Trigger Configuration for Gated Method, Non-Option 001
