Agilent Technologies 8560E - GATECTL Gate Control; Figure 7-124 GATECTL Syntax; Figure 7-125 GATECTL Query Response

Chapter 7 483
Language Reference
GATECTL Gate Control
GATECTL Gate Control
Syntax

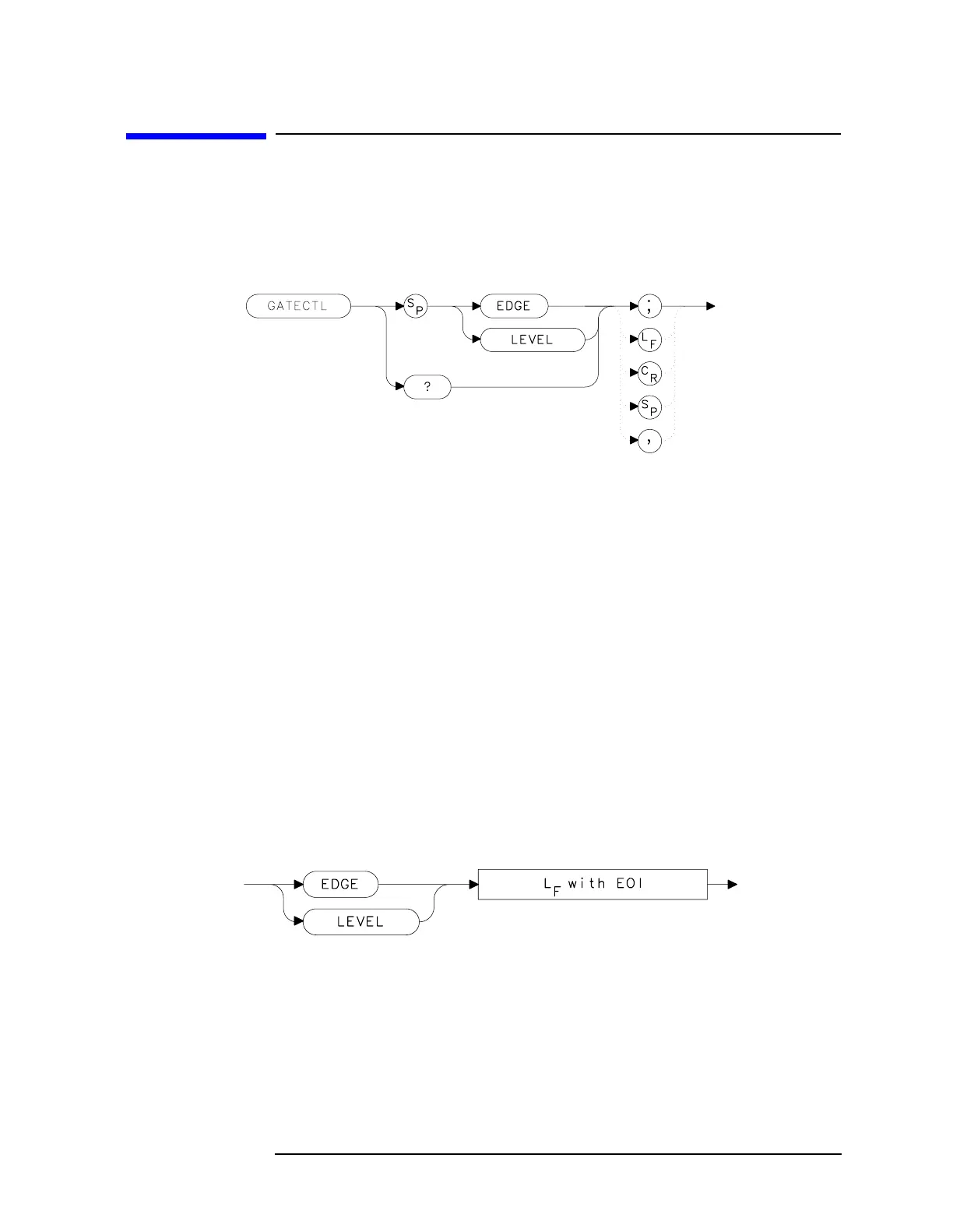

Figure 7-124 GATECTL Syntax
Description
The GATECTL command selects between the edge and the level mode
for time-gate function. In the edge mode, a specified trigger edge starts
the gate delay timer that in turn starts the gate length timer. In the
level mode, the gate follows the trigger input level. The gate polarity
(GP), gate delay time (GD), and gate time length (GL) are operational
in the edge mode, but not in the level mode.
Preset State
Edge
Query Response
Figure 7-125 GATECTL Query Response
Example
OUTPUT 718;"GATECTL LEVEL;"
