652 Chapter7
Language Reference
VTL Video Trigger Level
VTL Video Trigger Level
Syntax

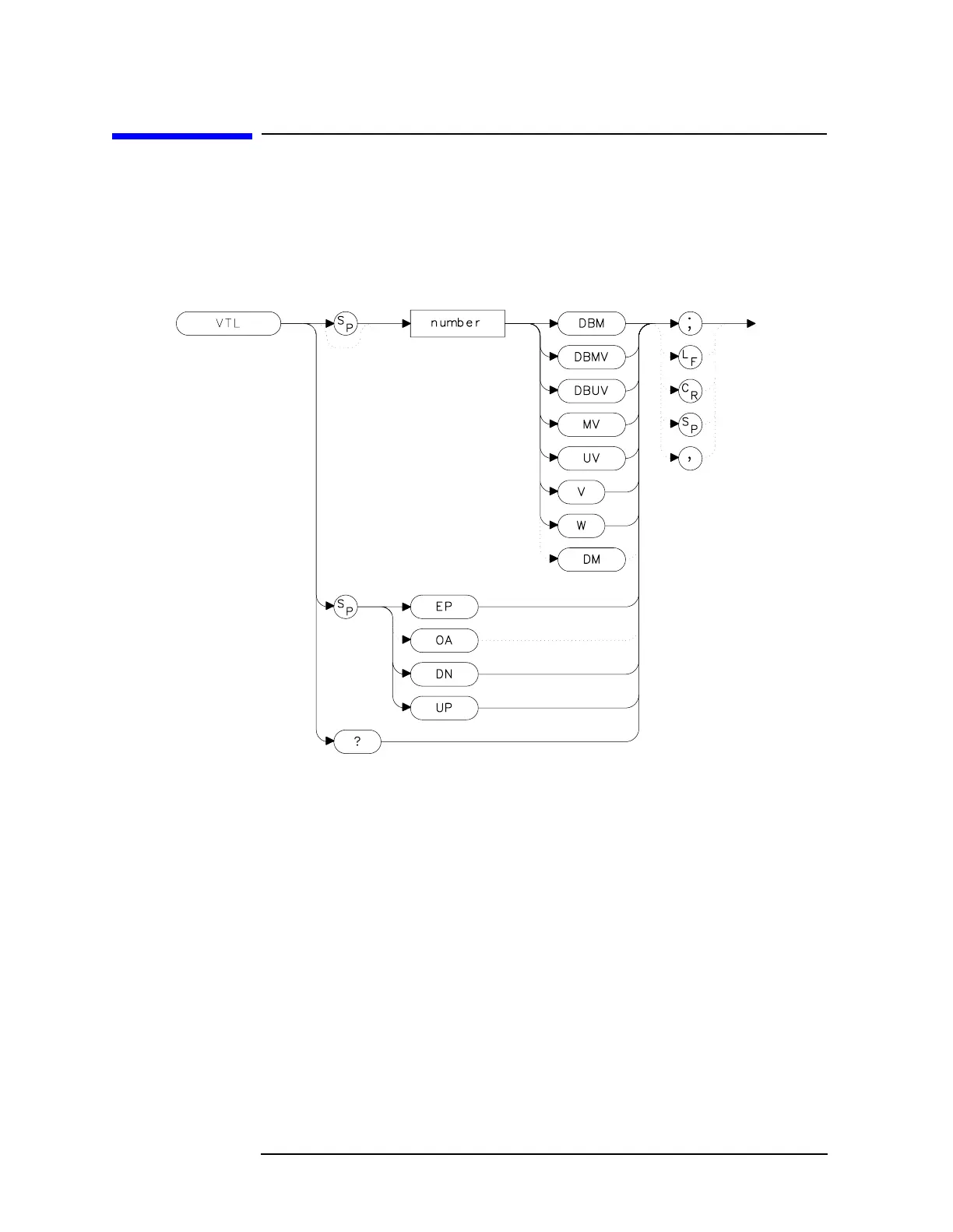

Figure 7-294 VTL Syntax
Description
The VTL commands sets the video trigger level when the trigger mode
is set to VIDEO (refer to the TM command). A dashed line appears on
the display to indicate the approximate level. The default value is 0
dBm.
Parameters
number real from −220 to 30.
UP or DN increments by 1 vertical division.
