Chapter 7
389
Language Reference
A
CPGRAPH Adjacent Channel Power Graph
Query Response
Figure 7-20

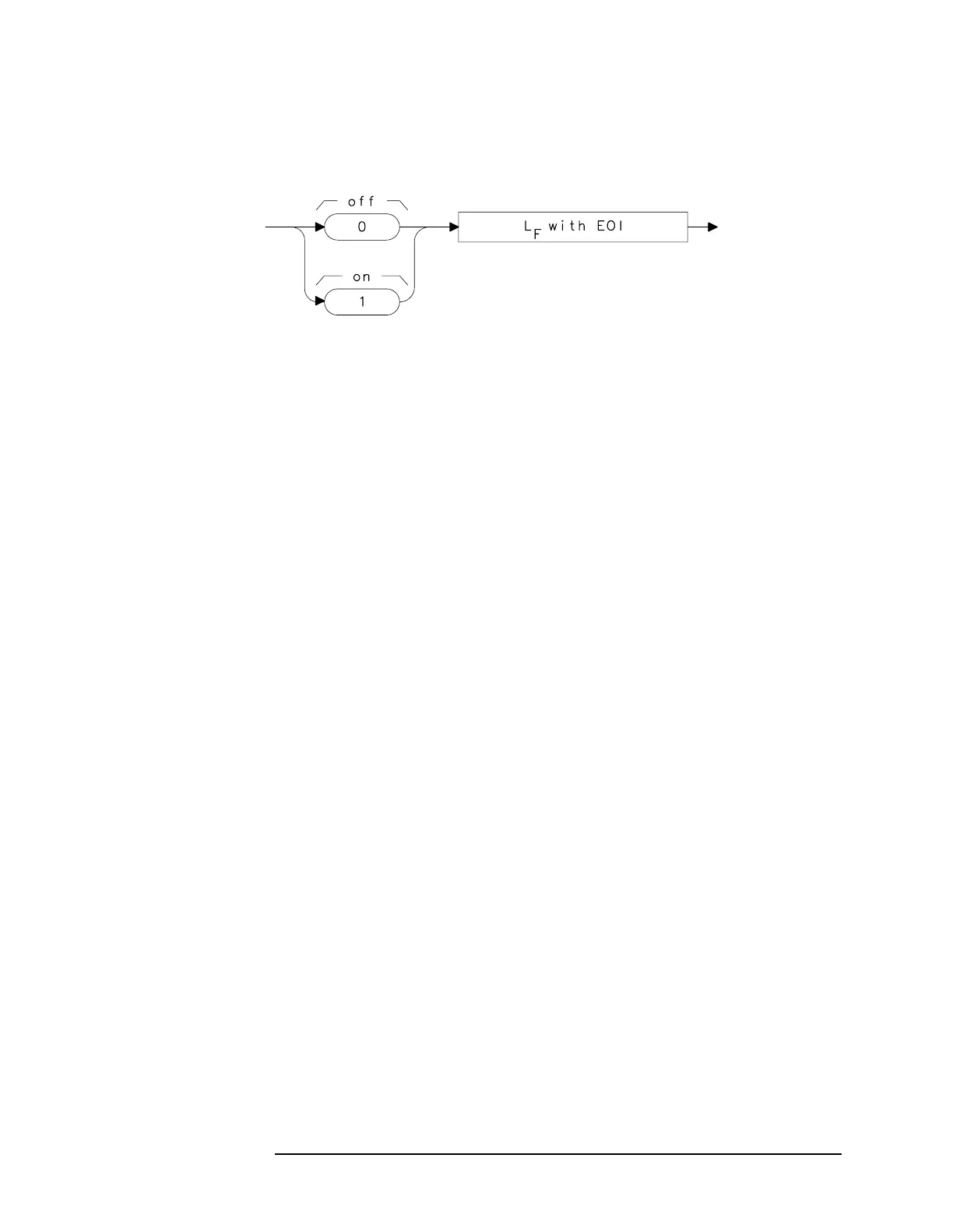

ACPGRAPH Query Response
Example
10
OUTPUT
718;"ACPGRAPH
ON;"
388
390
