Chapter 7 543
Language Reference
MXMH Maximum Hold
MXMH Maximum Hold
Syntax

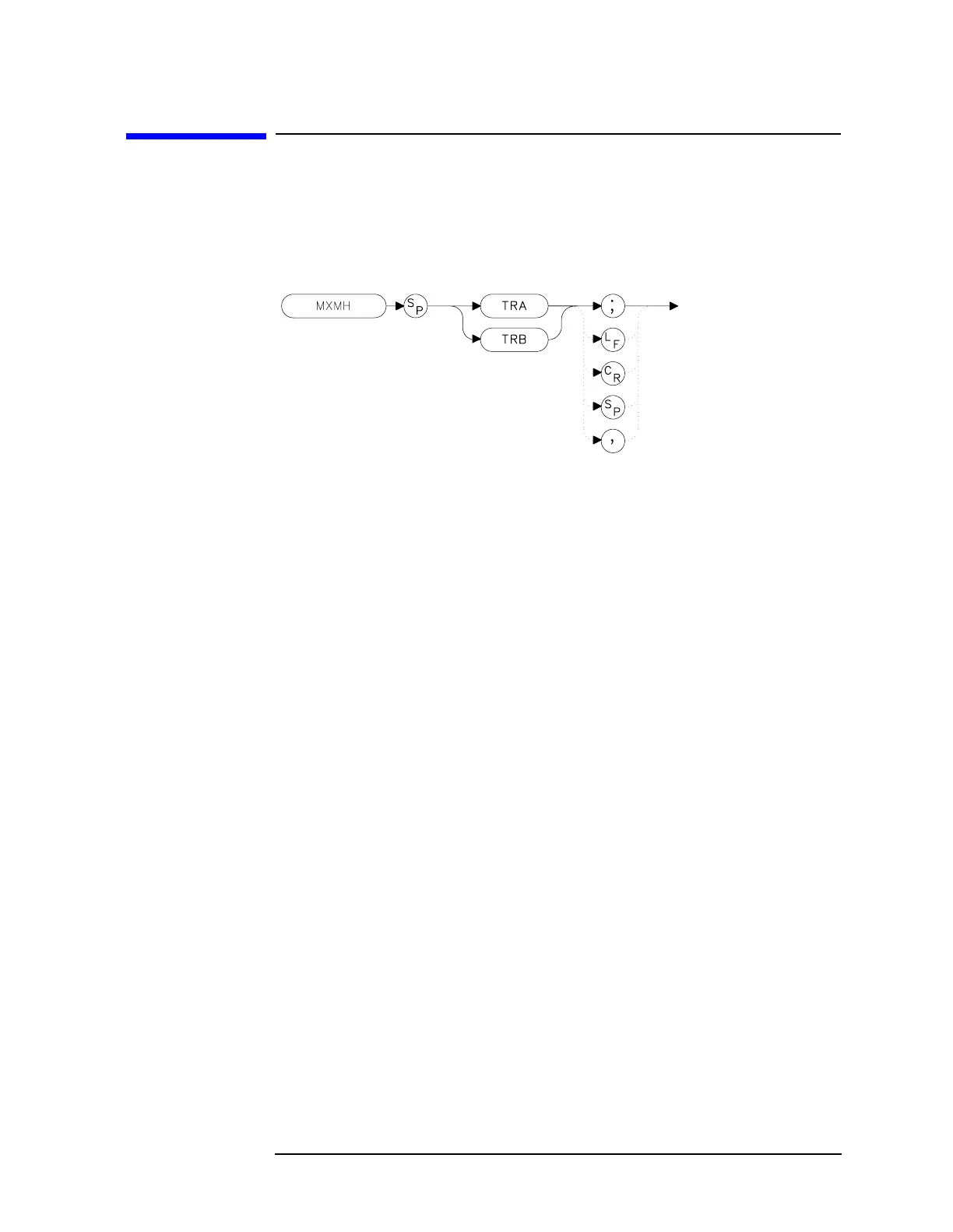

Figure 7-191 MXMH Syntax
Description
The MXMH command updates the chosen trace with the maximum
signal level detected at each trace-data point from subsequent sweeps.
This function employs the positive peak detector (refer to the DET
command). The detector mode can be changed, if desired, after
maximum hold is initialized.
Example
10 OUTPUT 718;"BLANK TRA;CLRW TRB;MXMH TRB;"
20 END
