RCLOSCAL Recall Open/Short Average
RCLOSCAL Recall Open/Short Average
Syntax

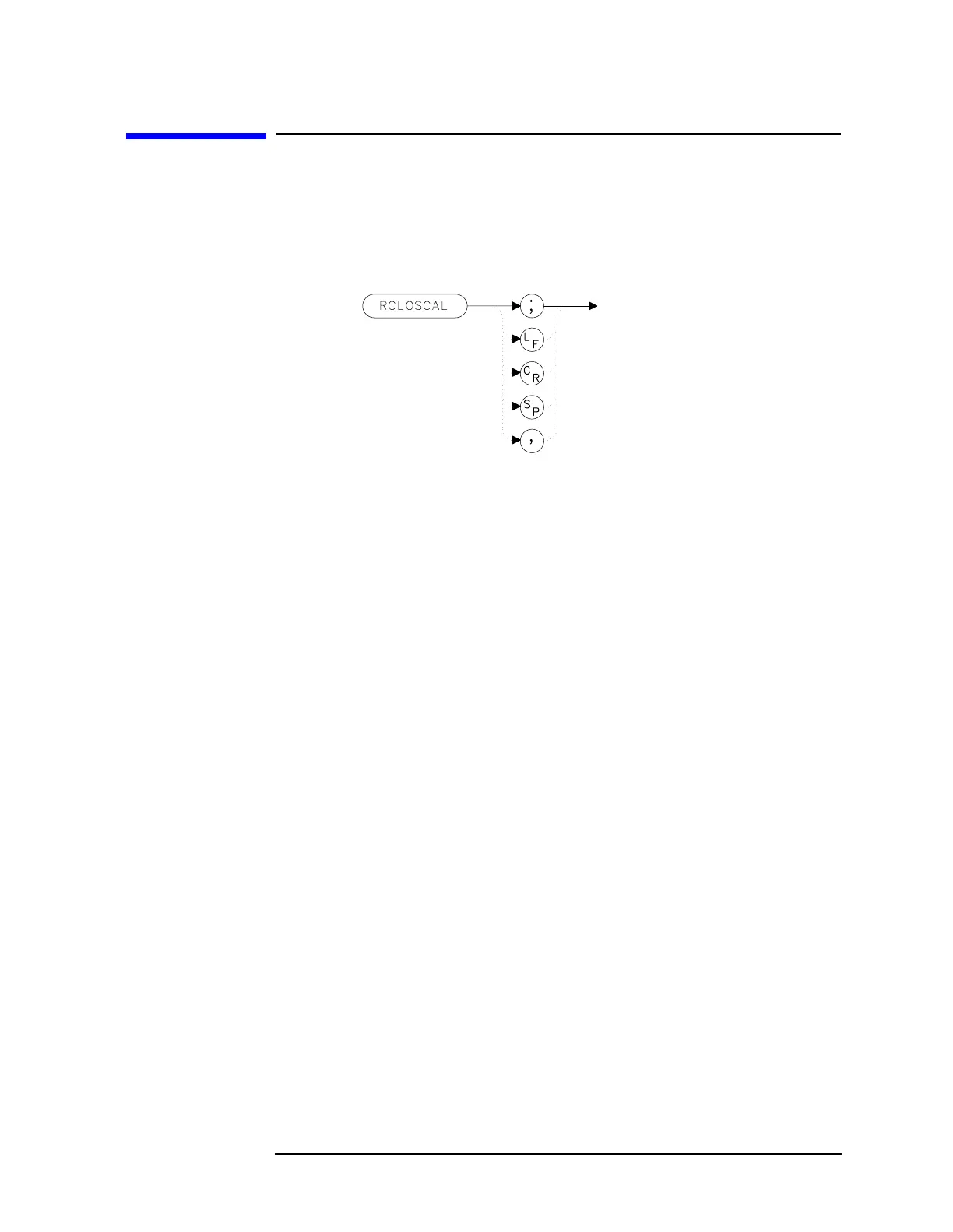

Figure 7-221 RCLOSCAL Syntax
Description
The RCLOSCAL command recalls the internally stored open/short
average reference trace into trace B. The instrument state is also set to
the stored open/short reference state.
Example
The following example applies only to an 8560E/EC Option 002.
However, the RCLOSCAL command can be used on the 8560 E-Series
and EC-Series spectrum analyzers when they are being used with an
Agilent 85640A tracking generator, or an Agilent 85644A/645A tracking
source.
10 OUTPUT 718;"IP;SNGLS;"
20 OUTPUT 718;"FA 300 KHZ;FB 1GHZ;"
30 OUTPUT 718;"SRCPWR ON;"
40 OUTPUT 718;"SWPCPL SR;"
50 OUTPUT 718;"SRCTKPK;DONE?;"
60 ENTER 718;Done
70 PRINT "CONNECT OPEN. PRESS CONTINUE WHEN READY TO STOR
E."
80 PAUSE
90 OUTPUT 718;"TS;DONE?;"
100 ENTER 718;Done
110 OUTPUT 718;"STOREOPEN;TS;DONE?;"
120 ENTER 718;Done
130 PRINT "CONNECT SHORT. PRESS CONTINUE WHEN READY
TO STORE AND AVERAGE."
140 PAUSE
150 OUTPUT 718;"STORESHORT;TS;DONE?;"
