134 Chapter2
Making Measurements
Example 11: Time-Gated Measurement

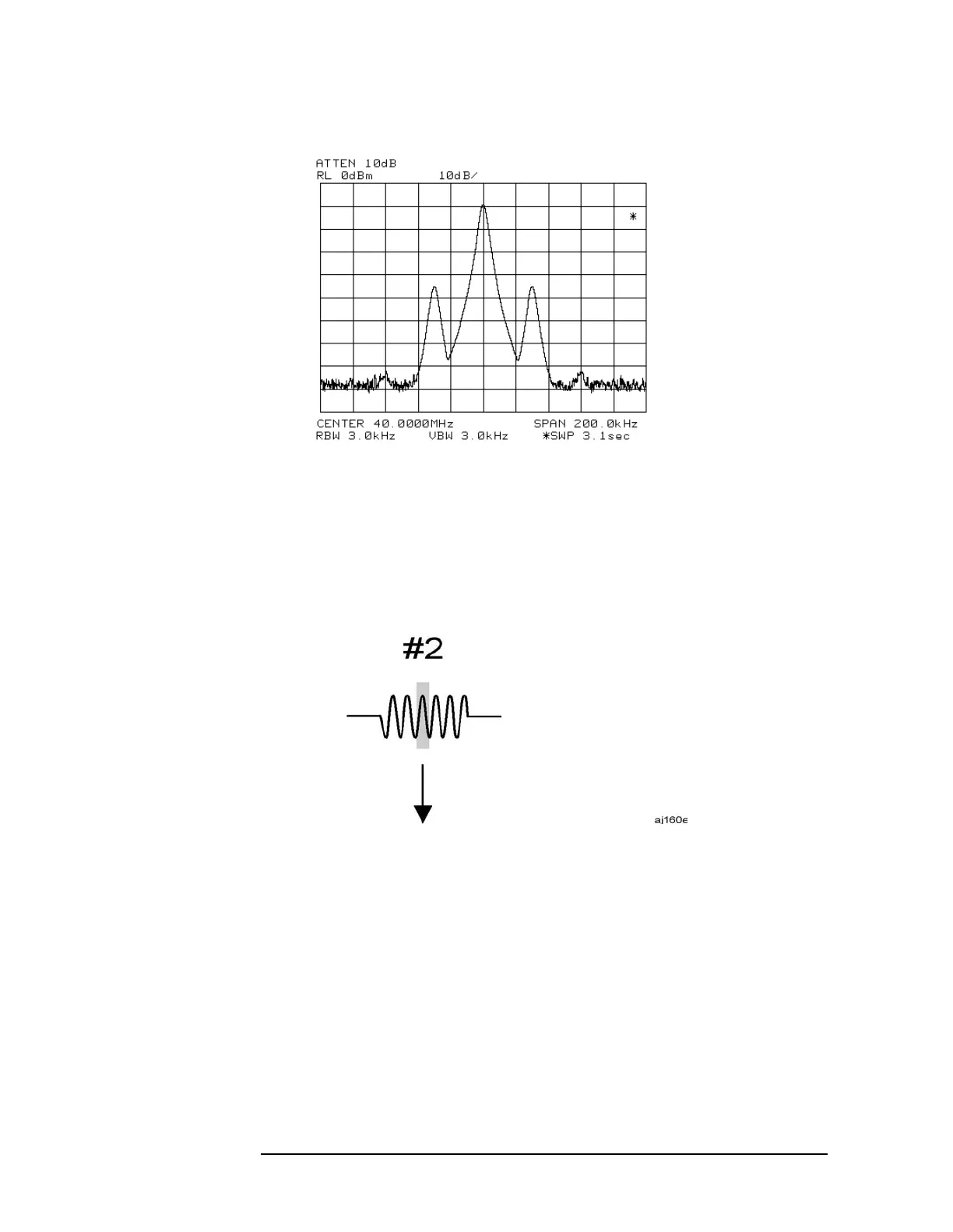

Figure 2-65 Using Time-Gating to View Signal 1
Moving the gate so that it is positioned over the middle of pulse train
number 2 produces a result such as that shown in Figure 2-67. Here,
you see only the spectrum within the pulses of signal number 2; both
signal number 1 and the pulse spectrum of signal number 2 are
excluded.
Figure 2-66 Spectrum within pulse #2
