Language Reference
IP Instrument Preset
IP Instrument Preset
Syntax

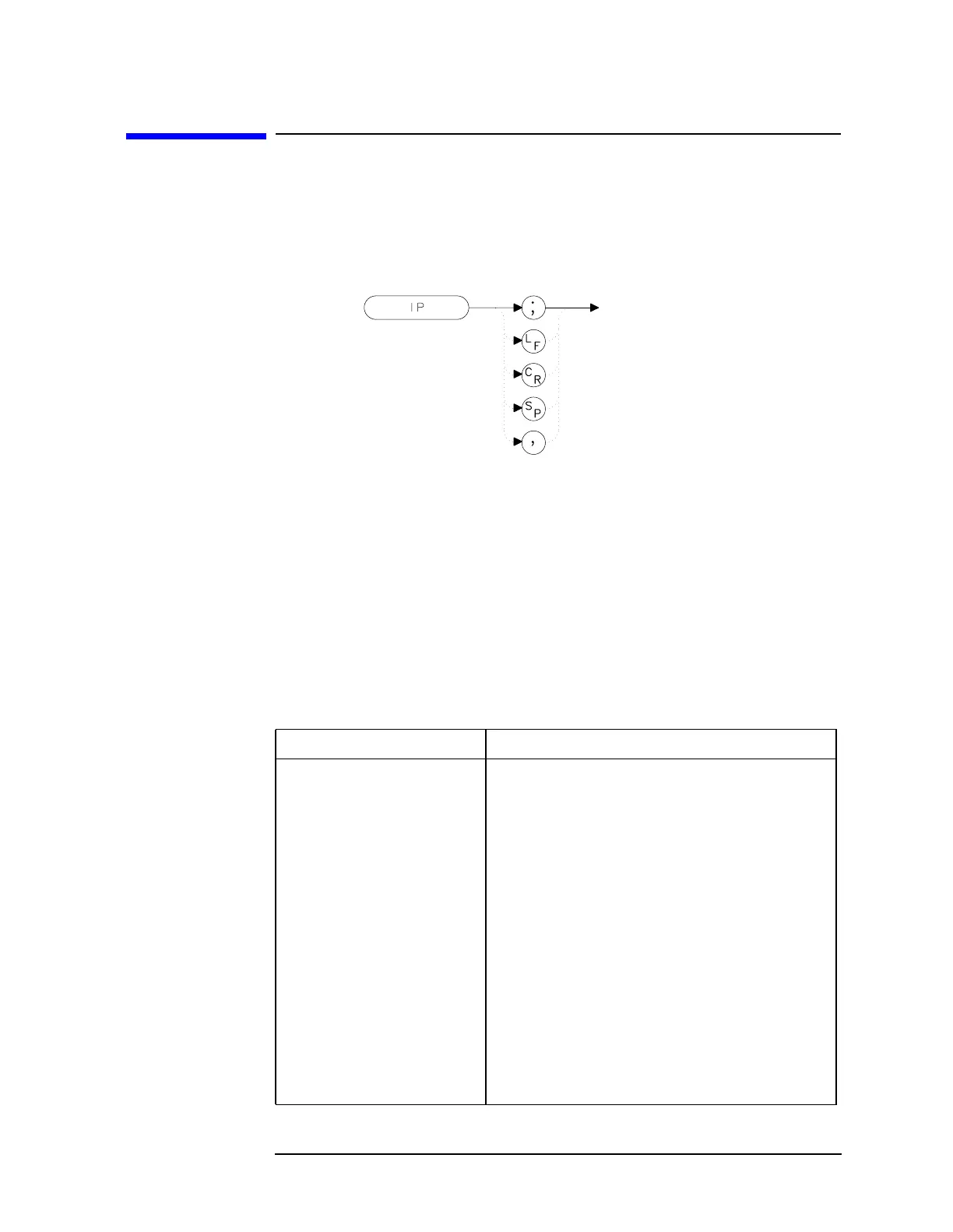

Figure 7-143 IP Syntax
Description
The IP command sets the spectrum analyzer to a known, predefined
state, shown in Table 7-1 on page 372. IP does not affect the contents of
any data or trace registers or stored preselector data. IP does not clear
the input or output data buffers; to clear these, execute the statement
CLEAR 718. Include the TS command after IP when the next command
will operate on trace data (such as TRA).
Table 7-7 8560 E-Series and EC-Series Preset States
Function State
10 MHz REF INTERNAL
A−B → A OFF
A−B+DISPLAY LINE → A OFF
AGC OFF
ANNOTATION ON
AUTO IF ADJUST ON
BAND LOCK OFF
CENTER FREQUENCY 1.45 GHz (8560E/EC) 3.25 GHz (Agilent
8561E/EC) 6.6 GHz (Agilent 8562E/EC) 13.25
GHz (Agilent 8563E/EC) 20 GHz (Agilent
8564E/EC) 25 GHz (Agilent 8565E/EC)
CF STEP 290 MHz (8560E/EC) 650 MHz (Agilent
8561E/EC) 1.32 GHz (Agilent 8562E/EC) 2.65
GHz (Agilent 8563E/EC) 4.0 GHz (Agilent
8564E/EC) 5.0 GHz (Agilent 8565E/EC)
DELAY SWEEP 2 µs, OFF
