Chapter 7 435
Language Reference
CF Center Frequency
0 to 13.2E+9 (Agilent 8562E/EC)
0 to 26.5E+9 (Agilent 8563E/EC)
0 to 40E+9 (Agilent 8564E/EC)
0 to 50E+9 (Agilent 8565E/EC)
from 18E+9 to 325E+9 in external mixer mode.
UP or DN 10 percent of the frequency span or the amount set by
the SS command.
Preset State
• 1.45 GHz (8560E/EC)
• 3.25 GHz (Agilent 8561E/EC)
• 6.6 GHz (Agilent 8562E/EC)
• 13.25 GHz (Agilent 8563E/EC)
• 20 GHz (Agilent 8564E/EC)
• 50 GHz (Agilent 8565E/EC)
Query Response

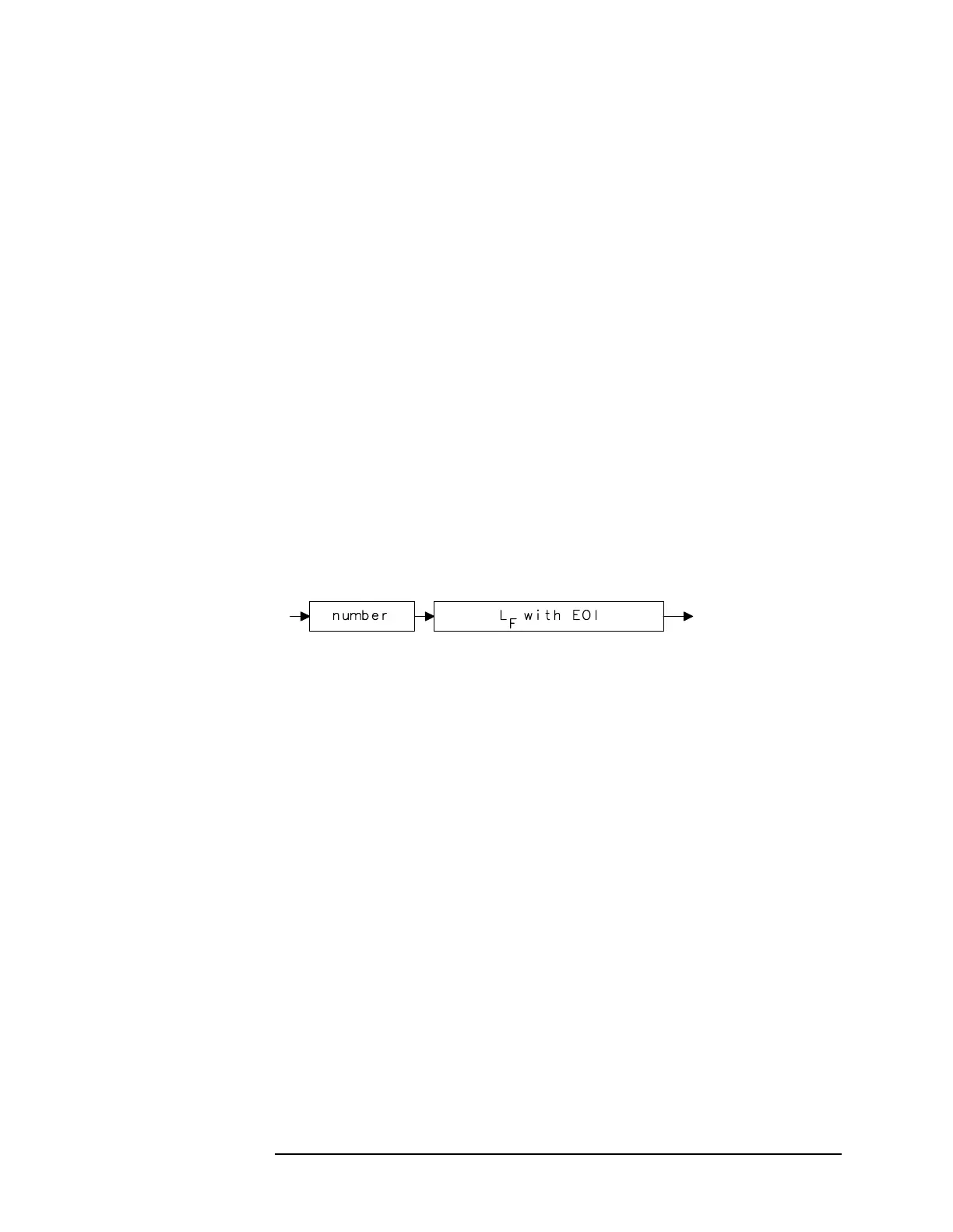

Figure 7-73 CF Query Response
Example
10 OUTPUT 718;"IP;"
20 OUTPUT 718;"CF 300MHZ;SP 20MHZ;TS;"
30 OUTPUT 718;"CF?;"
40 ENTER 718;Cf
50 PRINT Cf
60 END
