Agilent Technologies 8560E - RCLTHRU Recall Thru; Figure 7-224 RCLTHRU Syntax

Chapter 7 577
Language Reference
RCLTHRU Recall Thru
RCLTHRU Recall Thru
Syntax

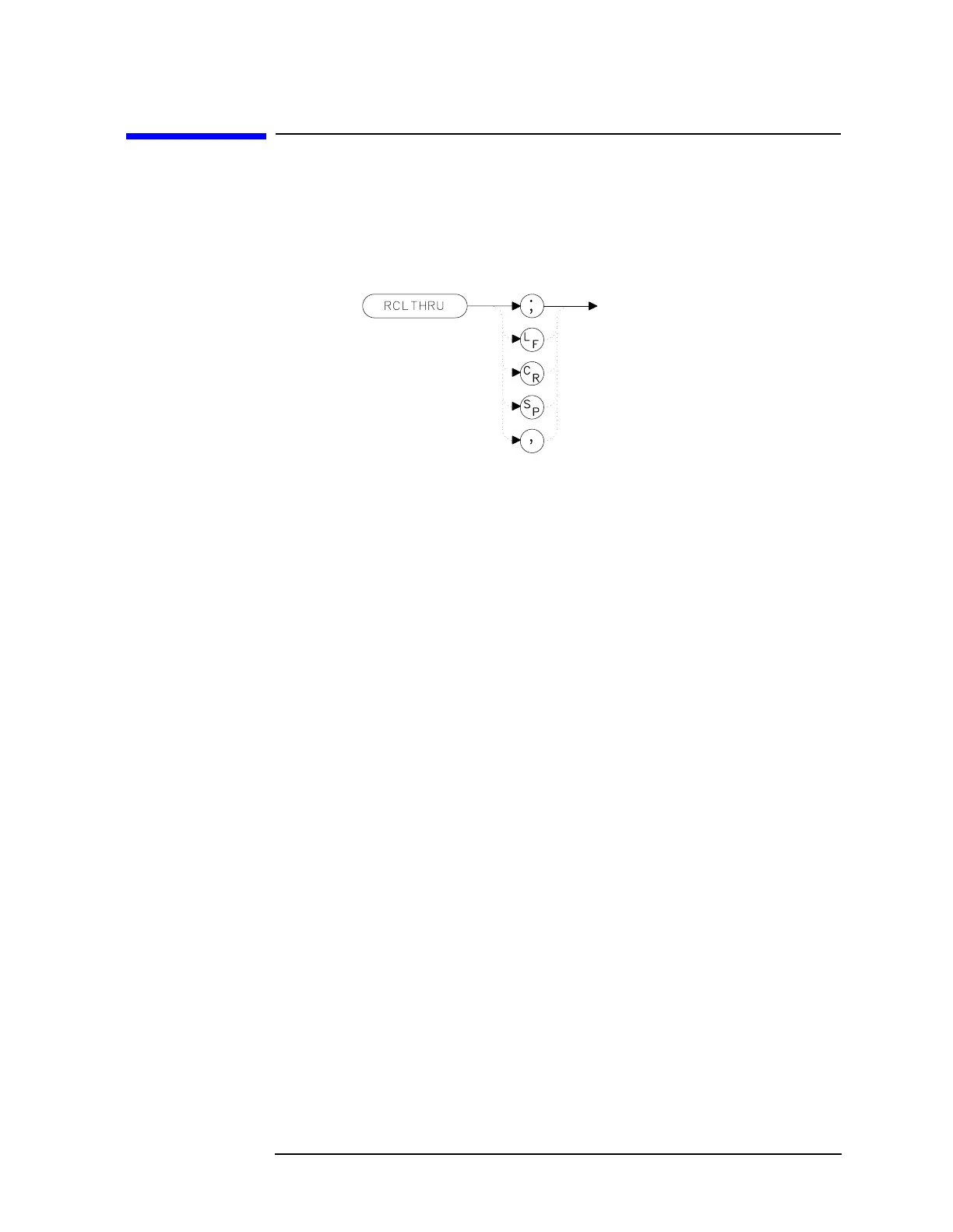

Figure 7-224 RCLTHRU Syntax
Description
The RCLTHRU command recalls the internally stored thru-reference
trace into trace B. The instrument state is also set to the stored
thru-reference state.
Example
The following example applies only to an 8560E/EC Option 002.
However, the RCLTHRU command can be used on the 8560 E-Series and
EC-Series spectrum analyzers when they are being used with an Agilent
85640A tracking generator, an Agilent 85644A tracking source, or
Agilent 85645A tracking source.
10 OUTPUT 718;"IP;SNGLS;"
20 OUTPUT 718;"FA 300 KHZ;FB 1GHZ;"
30 OUTPUT 718;"SRCPWR ON;"
40 OUTPUT 718;"SWPCPL SR;"
50 OUTPUT 718;"SRCTKPK;DONE?;"
60 OUTPUT 718;"ENTER 718;Done
70 PRINT "CONNECT THRU. PRESS CONTINUE WHEN READY TO STO
RE."
80 PAUSE
90 OUTPUT 718;"TS;DONE?;"
100 ENTER 718;Done
110 OUTPUT 718;"STORETHRU;TS;DONE?;"
120 ENTER 718;Done
130 PRINT "RECONNECT DUT. PRESS CONTINUE WHEN READY."
140 PAUSE
150 OUTPUT 718;"NORMLIZE ON;"
160 OUTPUT 718;"TS;DONE?;"
