Agilent Technologies 8560E - Figure 5-5 Invalid Trace Information

Chapter 5 299
Programming
Program Timing
Connect the calibrator signal to the analyzer 50Ω INPUT before
performing this example.
10 CLEAR 718
20 OUTPUT 718;"IP;SNGLS;TS;"
Initialize analyzer.
30 OUTPUT 718;"CF 300MHZ;SP 1MHZ;"
Change measurement
range.
40 END

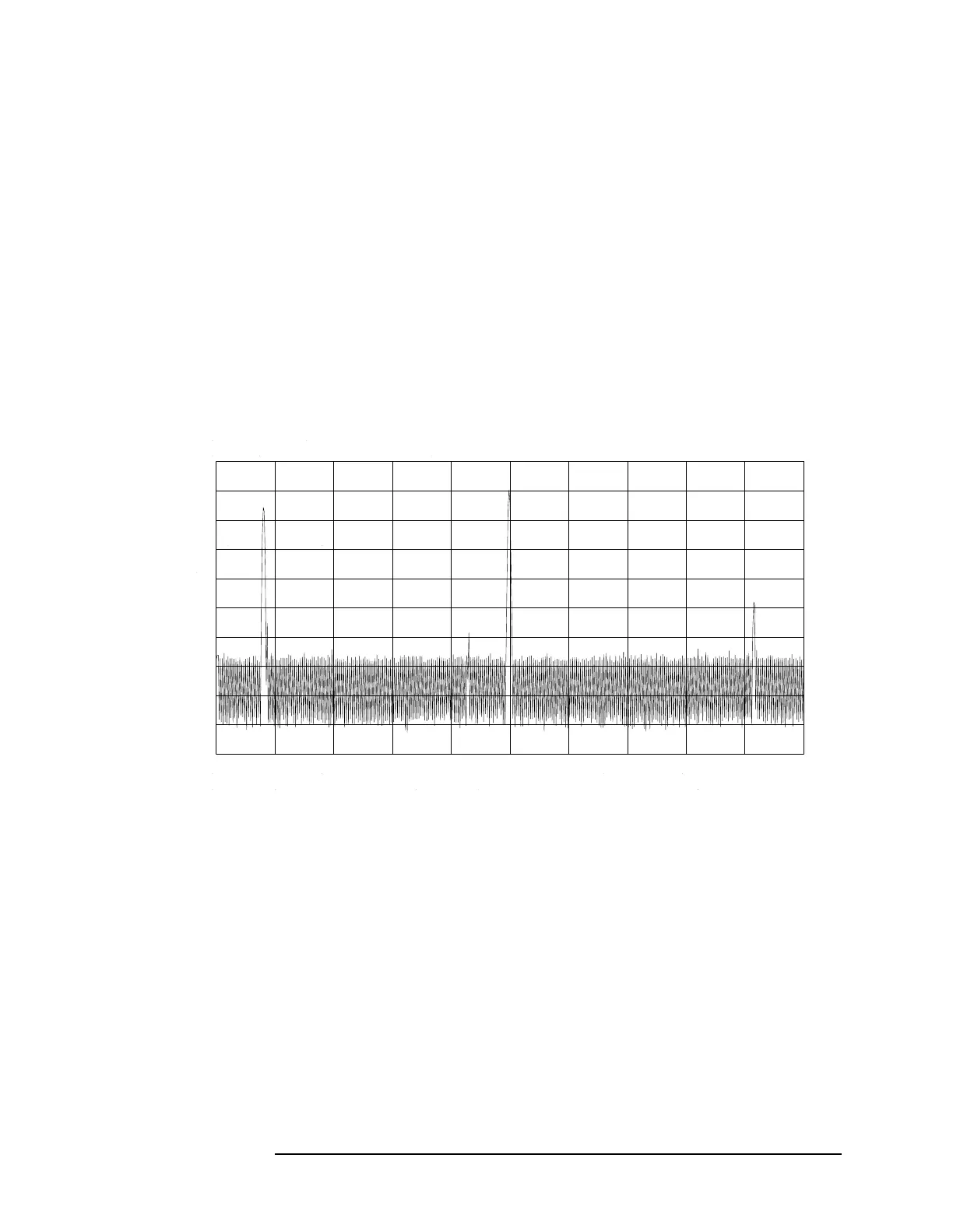

Figure 5-5 Invalid Trace Information
