550 Chapter7
Language Reference
NRPOS Normalized Reference Position
NRPOS Normalized Reference Position
Syntax

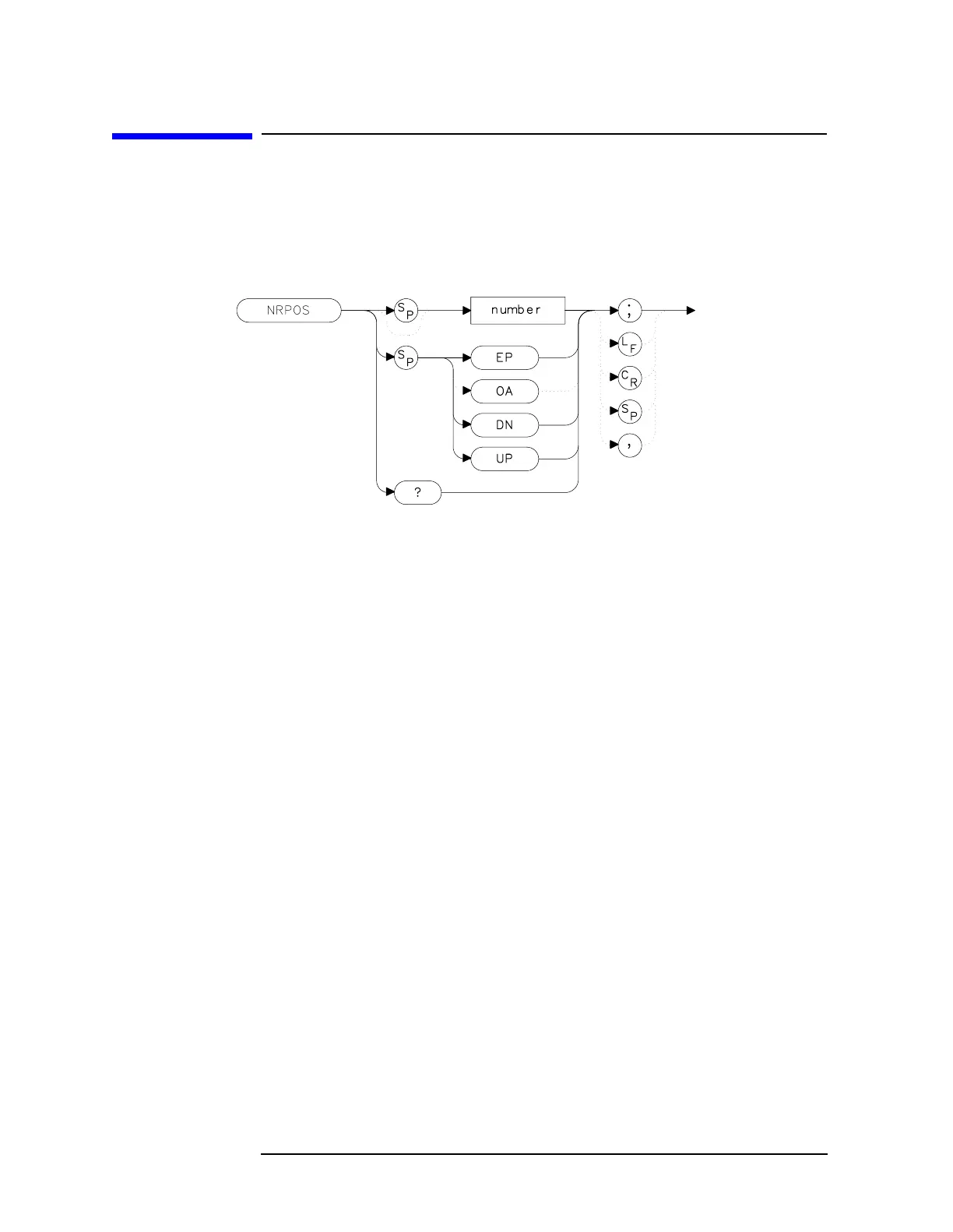

Figure 7-198 NRPOS Syntax
Description
The NRPOS command adjusts the normalized reference-position that
corresponds to the position on the graticule where the difference
between the measured and calibrated traces resides. The dB value of
the normalized reference-position is equal to the normalized reference
level. The normalized reference-position can be adjusted between 0.0
and 10.0, corresponding to the bottom and top graticule lines,
respectively.
Parameters
number real from 0.0 to 10.0.
UP or DN increments by 1.0.
Preset State
10.0 (top graticule line)
