7-2 HP IBASIC Supplement
Graphics and Display Techniques
Display Partitions
Display Partitions
IBASIC programs have the ability to allocate portions of the
instrument's display for program output, including text and graphics.
This section provides a description of the various programming
techniques used to do both. Any of three measurement display areas,
called display partitions, can be used by an IBASIC program. These
partitions are shown in Figure 7-1.
The analyzer has two measurement channels which can be displayed
simultaneously. The instrument's screen can be split into two trace areas
for this purpose (upper for measurement channel 1 and lower for
measurement channel 2). Additionally, the two measurements can be
overlaid onto one full size screen (the default setting). For more
information, refer to the Automating Measurements User’s Guide
Supplement for more information.

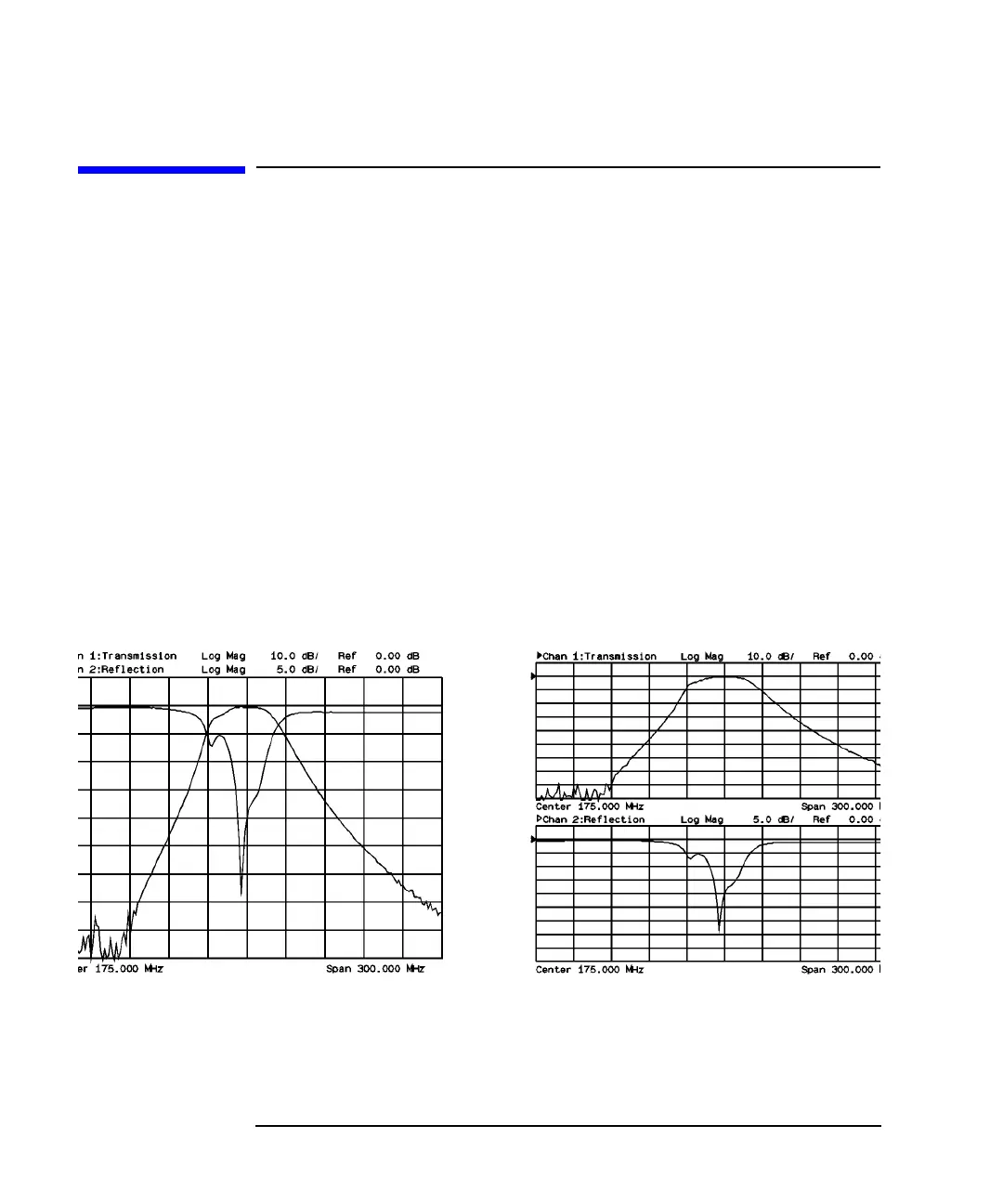

Figure 7-1 Display Partitions on the Analyzer
