B Cabling Diagrams and Remote Start/Stop
Installation and First Startup 67
Cable Diagrams

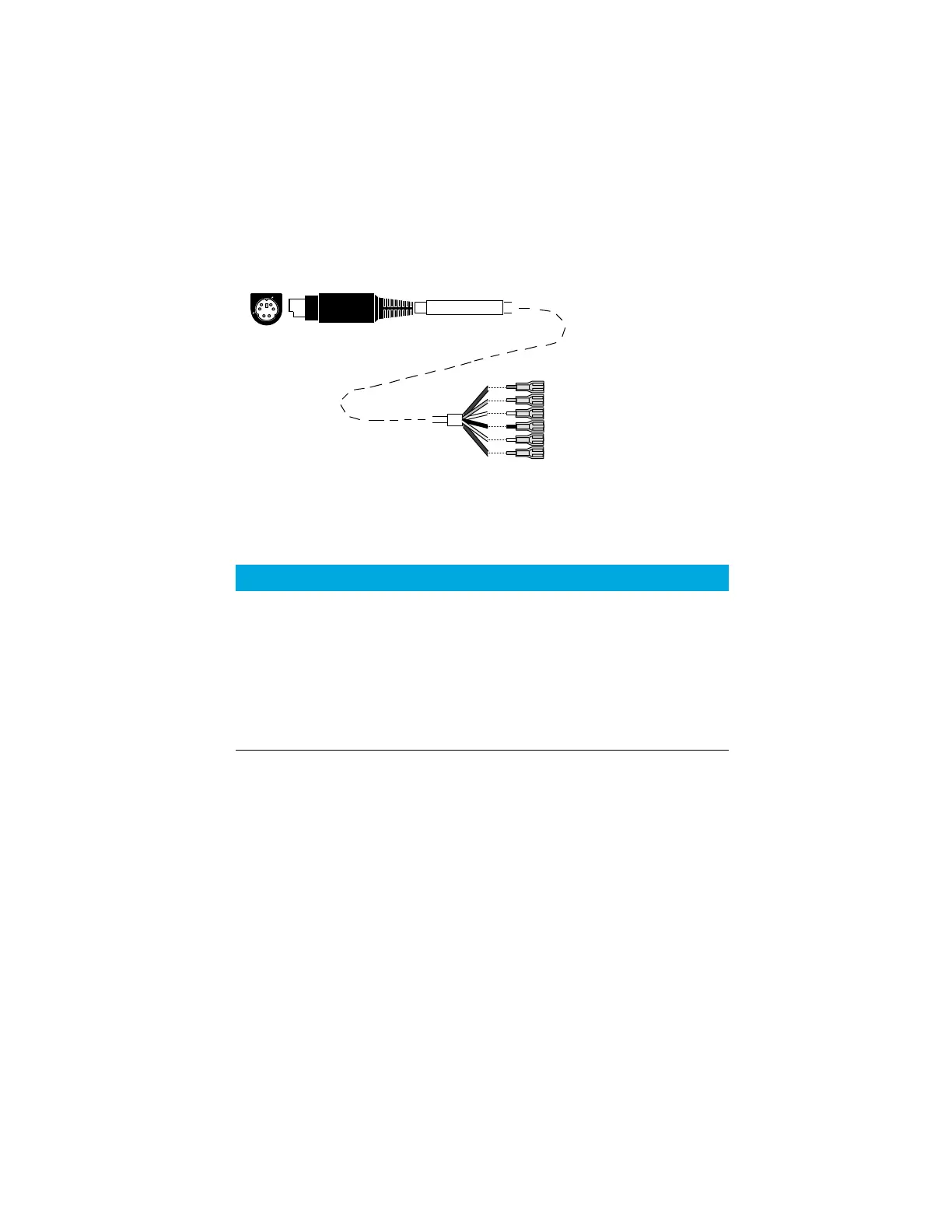

Analog signal cable, general use, G1530-60560
Connects GC signal outputs to non-Agilent products. Also used for the Analog Input Board
(AIB).
The pin assignments for the general use analog out cable are listed in Table 11.
Table 11 Analog cable, general use, output connections
Connector 1 Connector 2, wire color Signal
1 Brown or violet Not used
2 White 0 to 1 V, 0 to 10 V (–)
3 Red Not used
4Black1 V (+)
6Blue10 V (+)
Shell Orange Ground
G1530-60560
1
2
3
4
5
6
Connector 1
Connector 2
