1-3
Installing Your Agilent 8922M/S
Fuses and Power Cords
Fuses and Power Cords
CAUTION Before plugging this instrument into the Mains (line) voltage, be sure the correct
voltage on the line voltage selection card has been selected.
Line Voltage and
Fuse Selection
Verify that the line voltage selection card is matched to the power source
(see Figure 1-1 on page 1-3). Order fuse Agilent part 2110-0083 (2.5 A 250 V,
normal blow) for replacement.

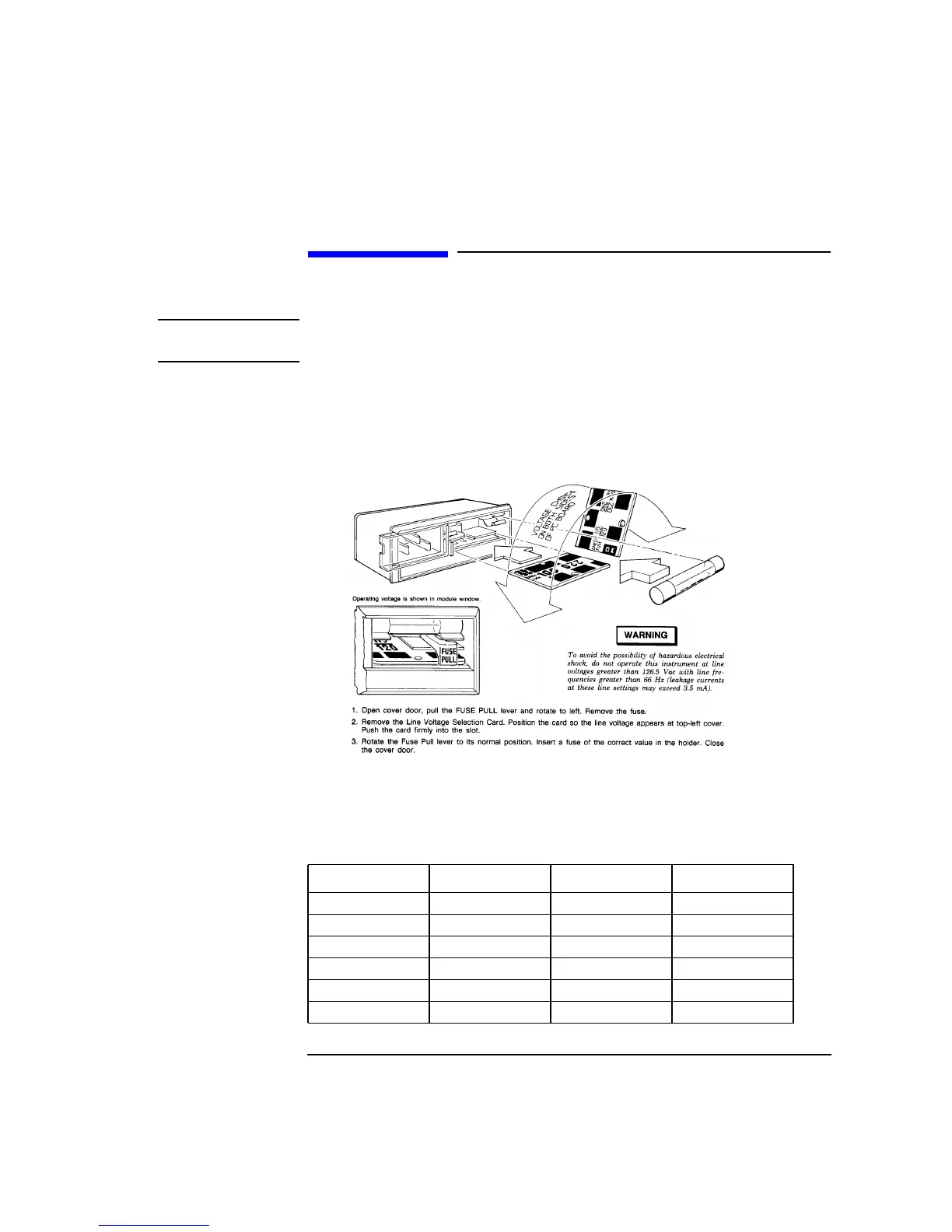

Figure 1-1 Voltage Selection Card and Fuse Installation
Other Fusing Non user replaceable fusing on the secondary of this instrument power supply are;
Fuse Current Type Volatge
F1 5A F 5.0A H 250V
F2 3A F 3.0A H 250V
F3 10A F 10A 32V
F4 3A F 3.0A H 250V
F5 0.5A F 0.5A H 250V
F6 3A F 3.0A H 250V
