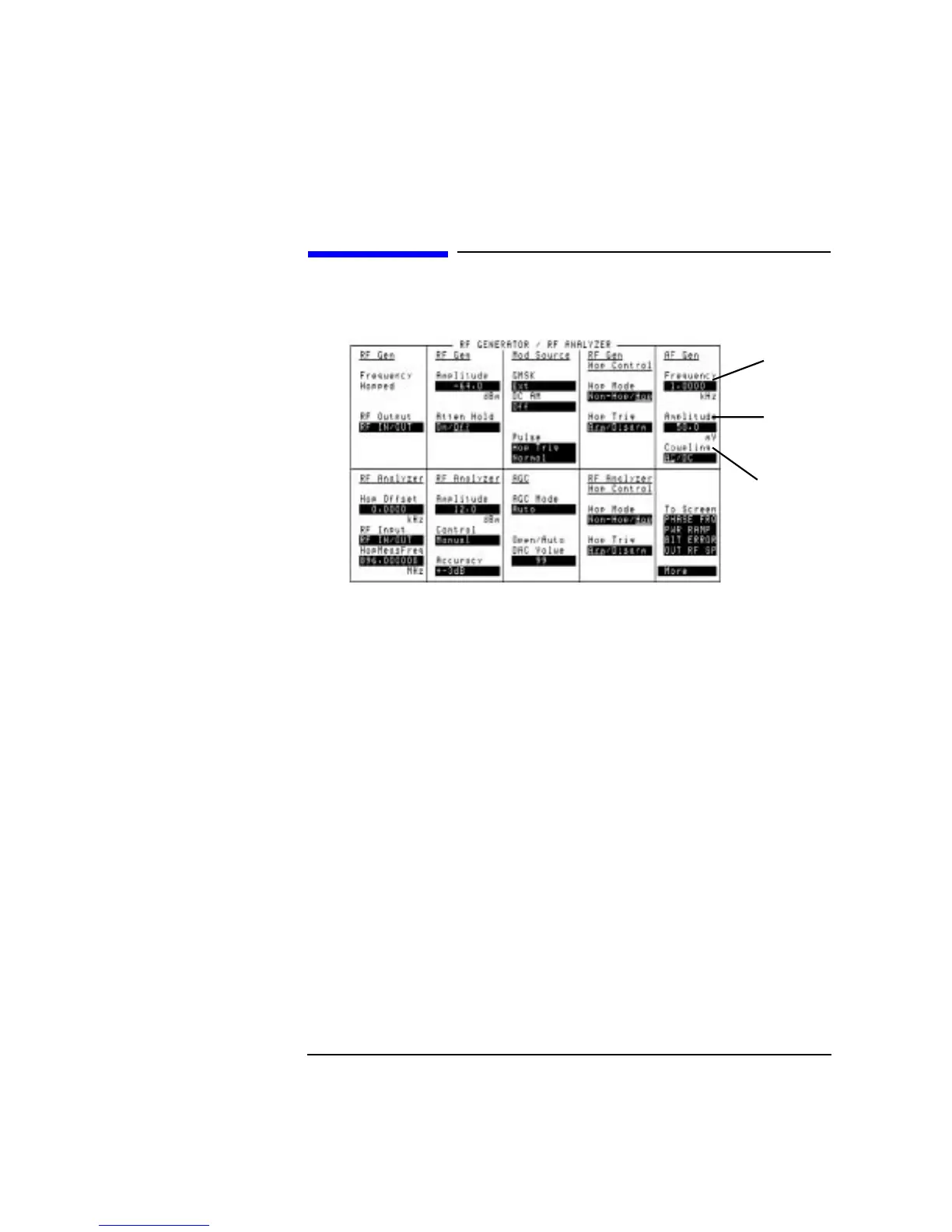

RF Generator / RF Analyzer (AF Gen)
RF Generator / RF Analyzer (AF Gen)
1. Amplitude This field is the AF Generator Audio Out amplitude setting.
Range 0.0 mV rms to 8.84 V rms.
2. Coupling This field selects ac or dc coupling of the AF Generator Audio Out signal.
3. Frequency This field is the AF Generator Audio Out Frequency setting.
Range dc to 30 kHz.
3
1
2
