Phase/Freq, Phase Err
Phase/Freq, Phase Err

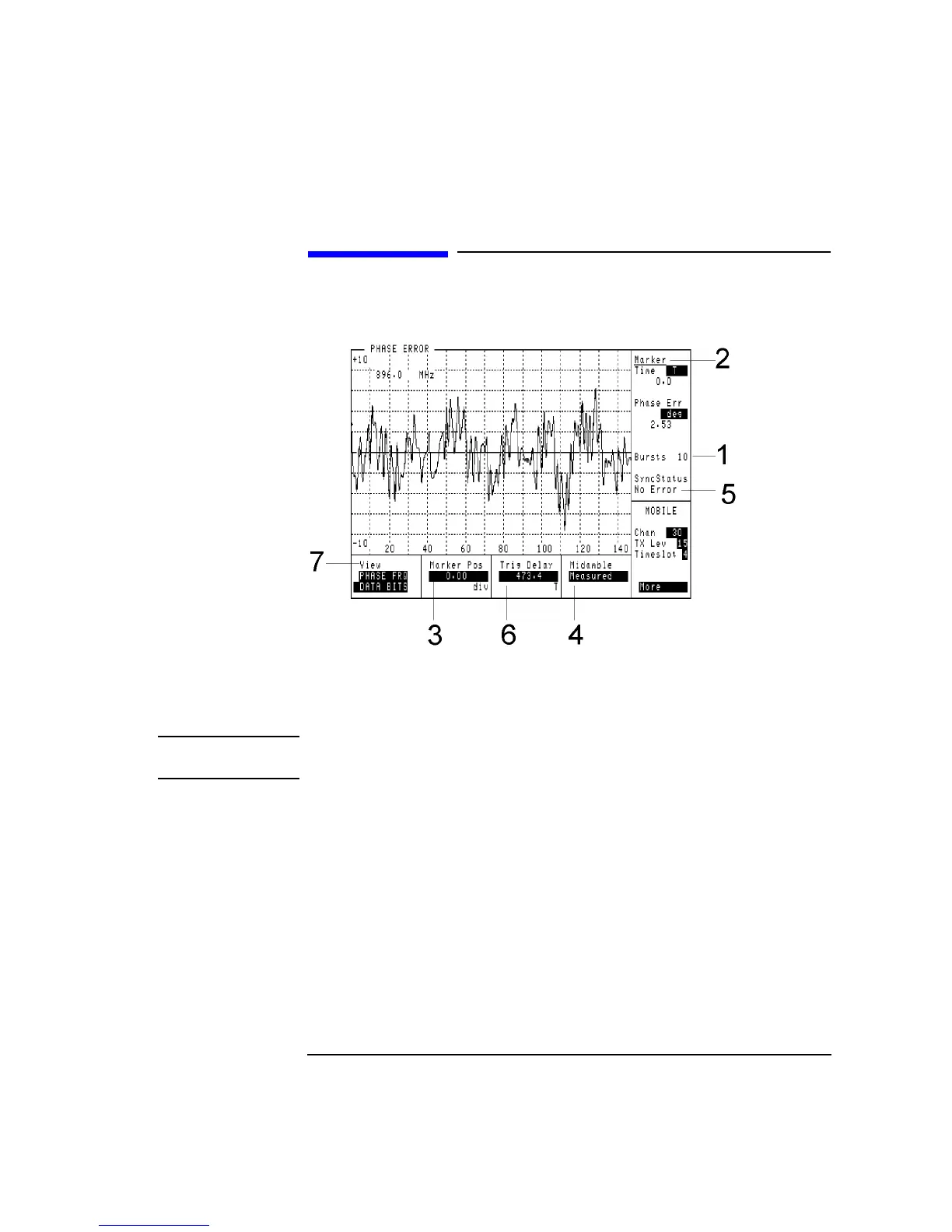

This view displays phase error versus time. The vertical range is scaled to the
measurement. The horizontal range is 0 to 147 or 0 to 87 bit periods depending on
the burst type.
NOTE When multiburst is turned on, display update rate for power versus time and phase
traces will be slowed down while multiple bursts are collected.
1. Bursts This field is only shown when multi-burst is ON. It shows the burst count setting.
2. Marker This field displays the marker position in time relative to bit 0 of the received burst.
3. Marker Pos This field sets the position on the trace that phase error will be measured and
displayed. The marker position is settable in units of division (div) only.
