4-124
Screens

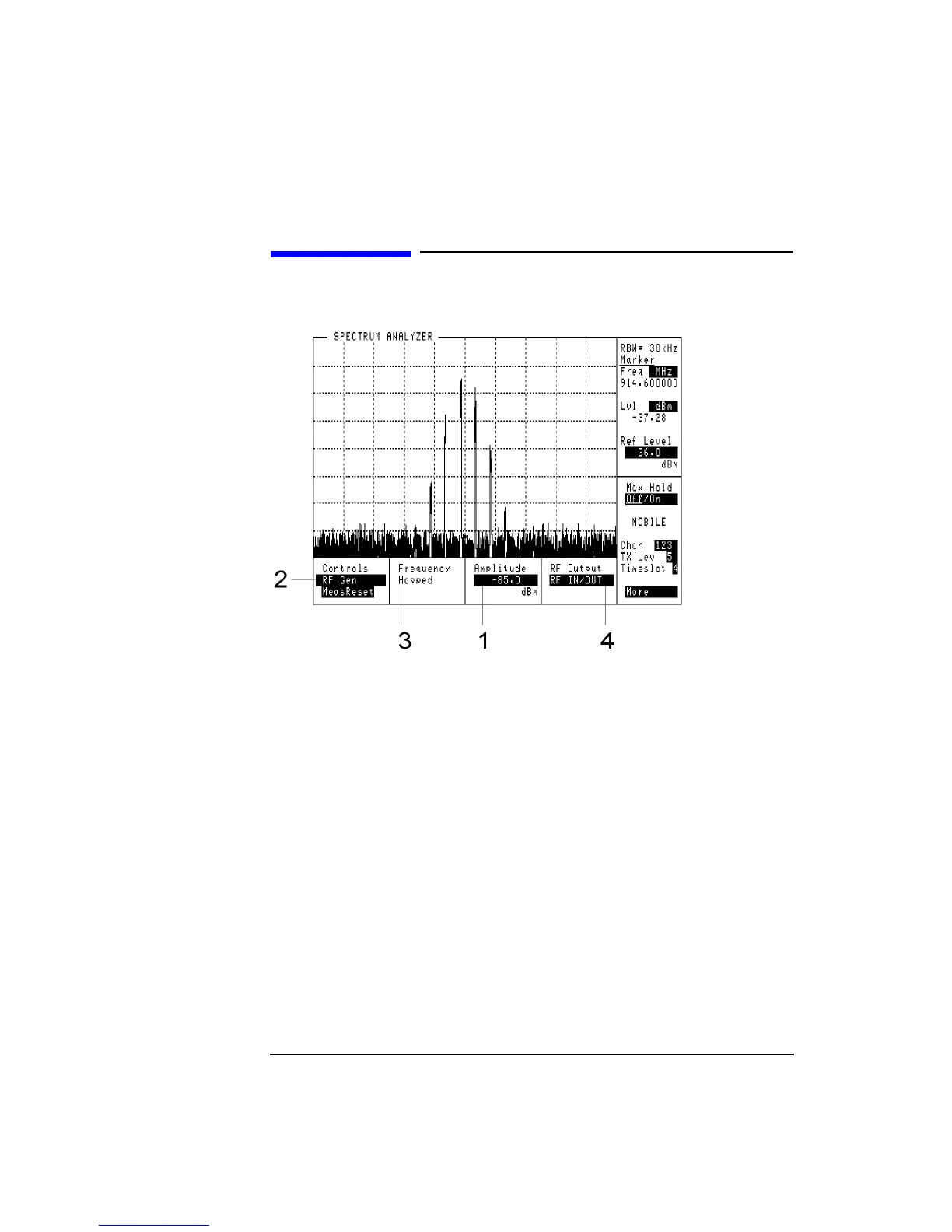

Spectrum Analyzer, RF Gen Controls (Option 006 Only)
Spectrum Analyzer, RF Gen Controls (Option 006 Only)
1. Amplitude This field sets the RF generator’s amplitude. The amplitude shown is for the port
selected in the RF Output field.
Range RF IN/OUT: −127.0 to −6.0 dBm. AUX RF OUT: −127.0 to
+14.0 dBm.
2. Controls This field selects the alternate Controls of the Spectrum Analyzer measurement.
Choices Main
RF Gen
Marker
Auxiliary
3. Frequency This field sets the non-hopped frequency; or if the RF Gen, Hop Control, Hop Mode
is set to Hop, this field will show the frequency status as Hopped.
Range 10.0 to 1015.0 MHz.
4. Marker This field displays the frequency and the level of the current marker position.
