Screens

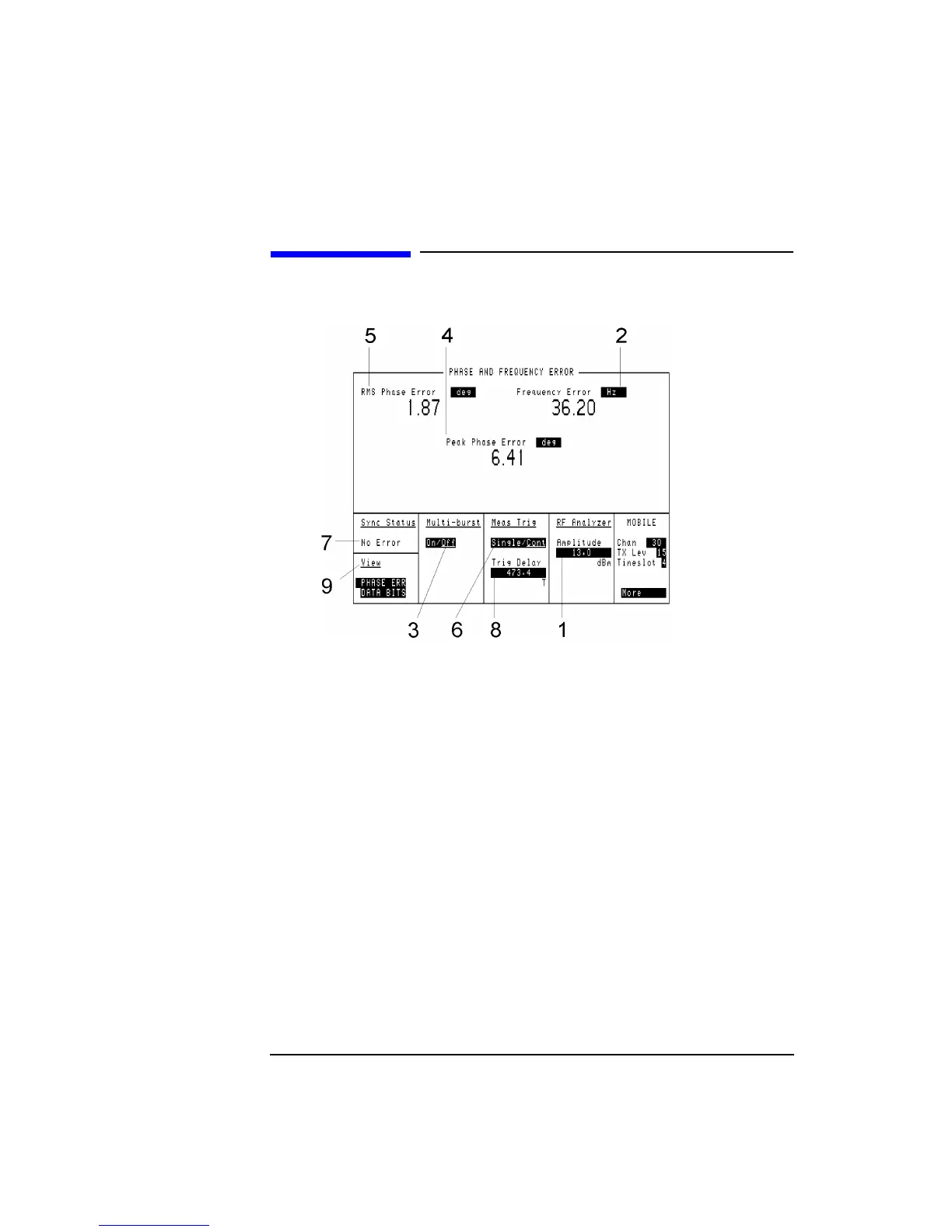

Phase and Frequency Error - Multiburst OFF
Phase and Frequency Error - Multiburst OFF
1. Amplitude This is a copy of the RF Analyzer Amplitude field. This is the amplitude to be
assumed at the selected input port.
Range RF IN/OUT: −27.9 to +41.0 dBm. AUX RF IN: −58.0 to +20.0
dBm.
See Also Screens: RF Generator/RF Analyzer, (RF Analyzer)
2. Frequency Error This field displays the derived Frequency Error over the useful bits in the measured
burst.
See Also Keys: ON/OFF, HI LIMIT, LO LIMIT, REF SET, AVG,
METER, Units
To Next Page
