Pwr Ramp: Pulse Rise (Option 006 Only)
Pwr Ramp: Pulse Rise (Option 006 Only)

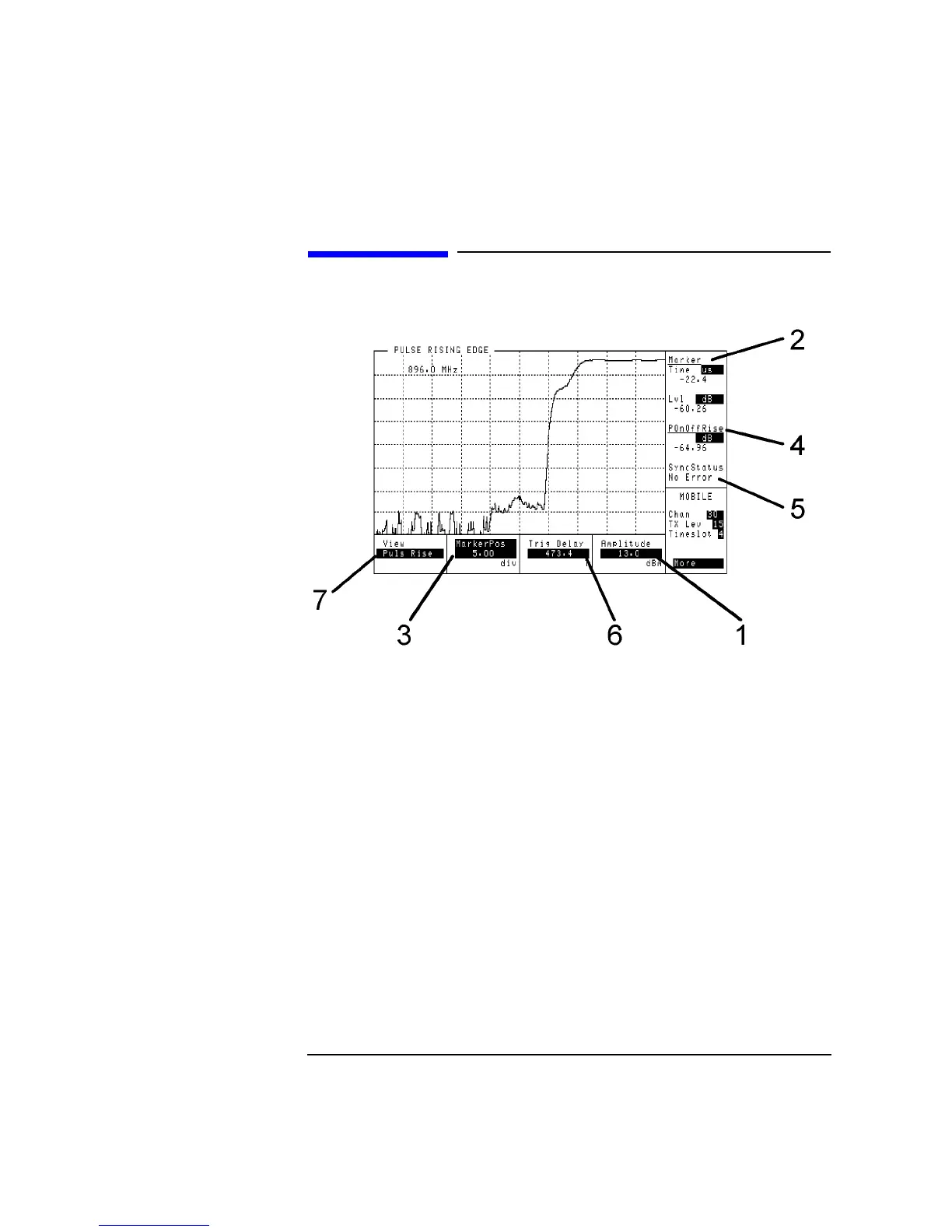

This view displays Pulse On/Off power spectral density versus time for the rising
portion of the burst.
1. Amplitude This is a copy of the RF Analyzer Amplitude field. This is the amplitude to be
assumed at the selected input port,
Range RF IN/OUT: −27.9 to +41.0 dBm. AUX RF IN: −58.0 to +20.0
dBm.
See Also Screens: RF Generator/RF Analyzer, (RF Analyzer) Chapter 3:
Specifications
2. Marker This field displays the level at the current marker position.
See Also Keys: ON/OFF, HI LIMIT, LO LIMIT, REF, AVG, Units
3. MarkerPos This field selects the marker position for the rising trace.
Choices MarkerPos
Rise Pos
