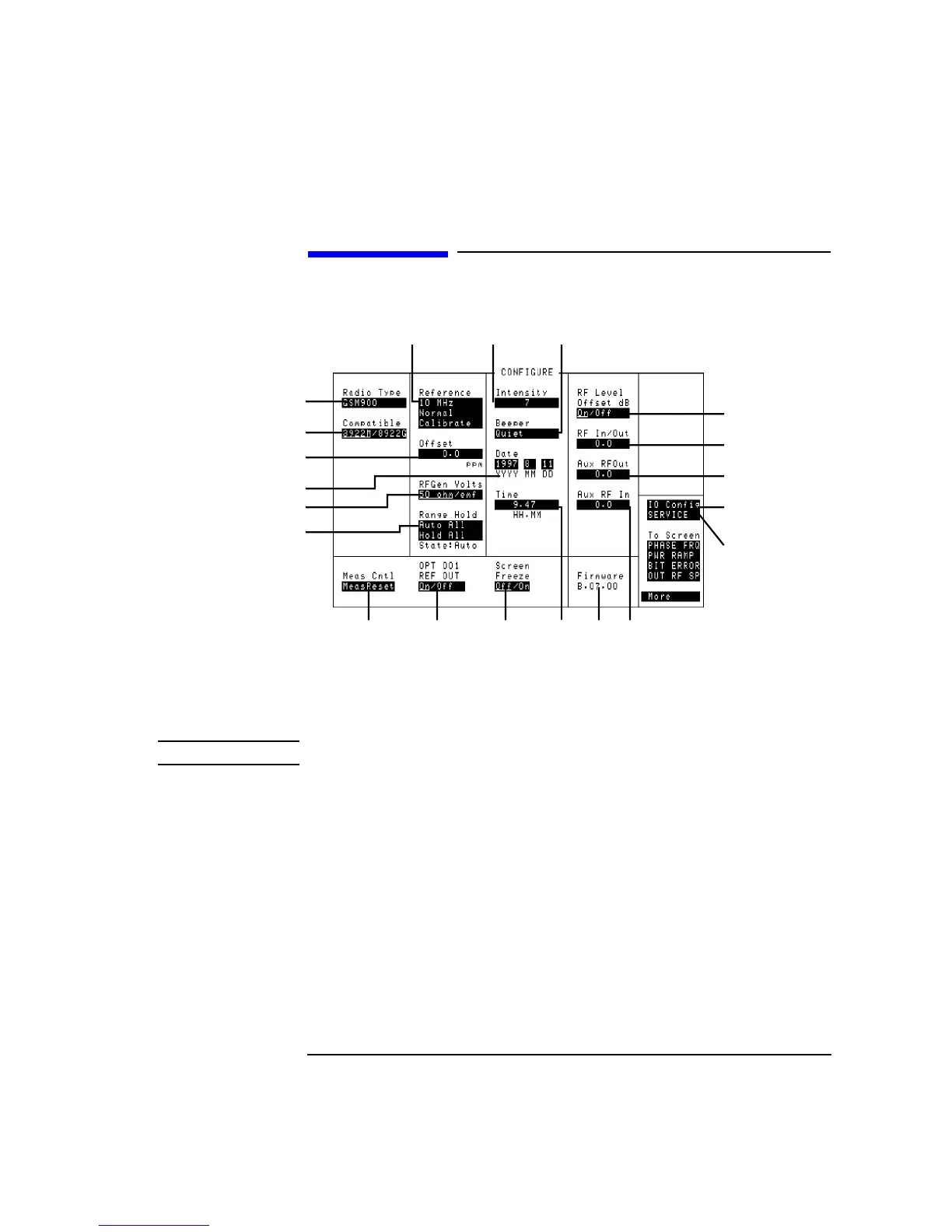

1. Aux RF In This field is used to indicate losses or gains between the AUX RF IN port and the
device under test.
NOTE This field is only used when the RF Level Offset field is set to On.
Enter a positive value to indicate a gain (such as an amplifier). The Spectrum
Analyzer Marker Level (Lvl), measurements are automatically reduced. (The
Spectrum Analyzer Ref Level is automatically decreased, so the trace position
does not appear to change.)
Enter a negative value to indicate a loss (such as cable loss). The Spectrum
Analyzer Marker Level (Lvl), measurements are automatically increased. (The
Spectrum Analyzer Ref Level is automatically increased, so the trace position
does not appear to change.)
See Also RF Level Offset
