Screens
Cell Control - CW Generator
Cell Control - CW Generator

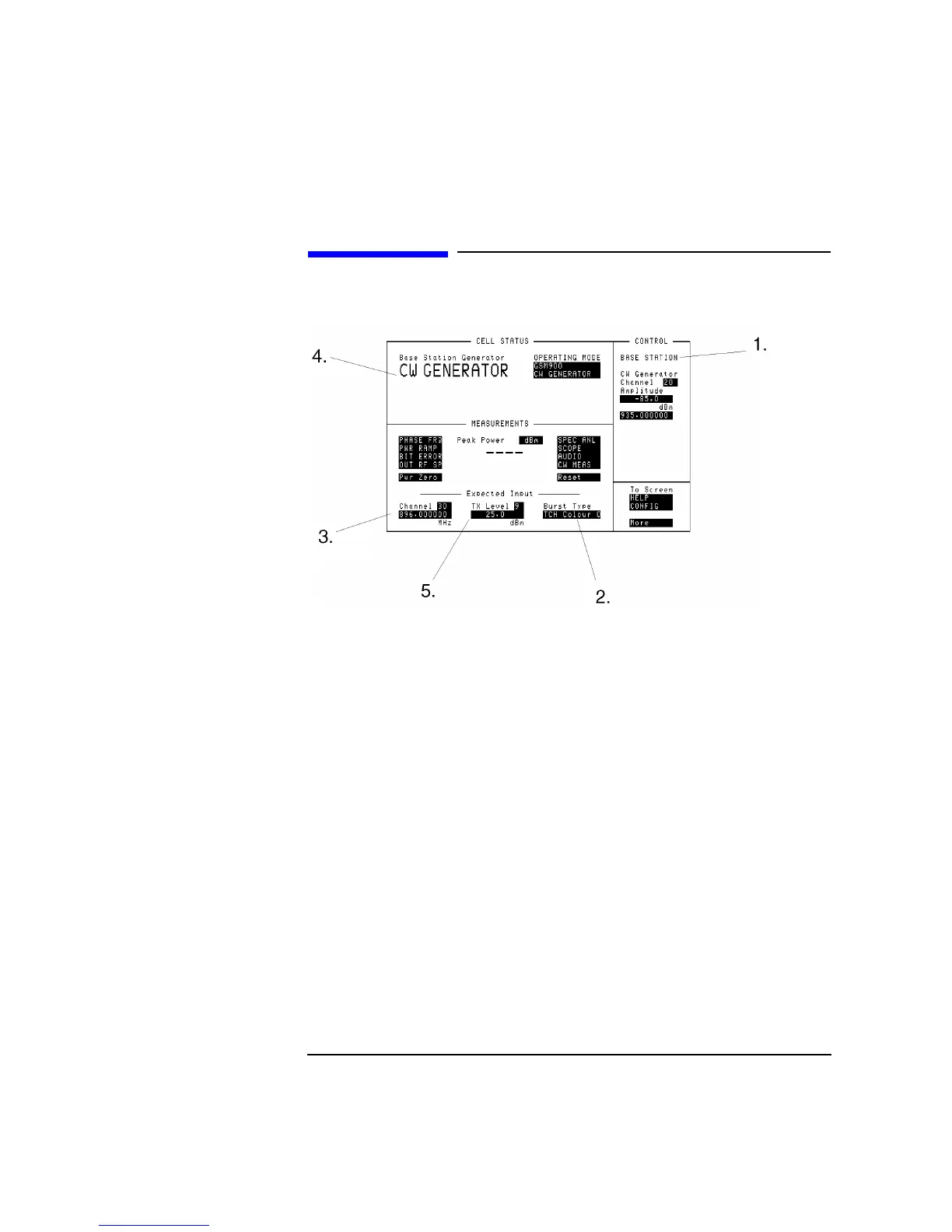

This screens allows you to set the Agilent 8922M/S up as a CW Signal Generator.
1. Base Station There are two Base Station fields. The Amplitude field sets the amplitude of the
Agilent 8922M/S transmission. The Channel field selects which channel the
Agilent 8922M/S transmits the Broadcast Control Channel (BCCH) information. If
this is changed during a call, the call will be deactivated. The frequency can also be
set explicitly between 10 MHz and 1000 MHz.
2. Burst Type. This field defines the expected burst type of the mobile phone’s transmitted bursts.
When the Traffic Channel (TCH) is selected, the correct Colour Code should be
chosen.
3. Channel This field displays the channel number the Agilent 8922M/S is taking measurements
from. For a GSM900 mobile phone the channel number may vary from 1 through
124. For an E-GSM mobile phone the channel number may vary from 0 through 124
and 975 through 1023. If you change the channel number, the frequency field value
also changes. The converse of this is not the case. You may enter a non GSM
standard channel frequency on another screen, between 10 MHz and 1000 MHz.
To Next Page
