Spectrum Analyzer, Main Controls (Option 006 Only)
Spectrum Analyzer, Main Controls (Option 006 Only)

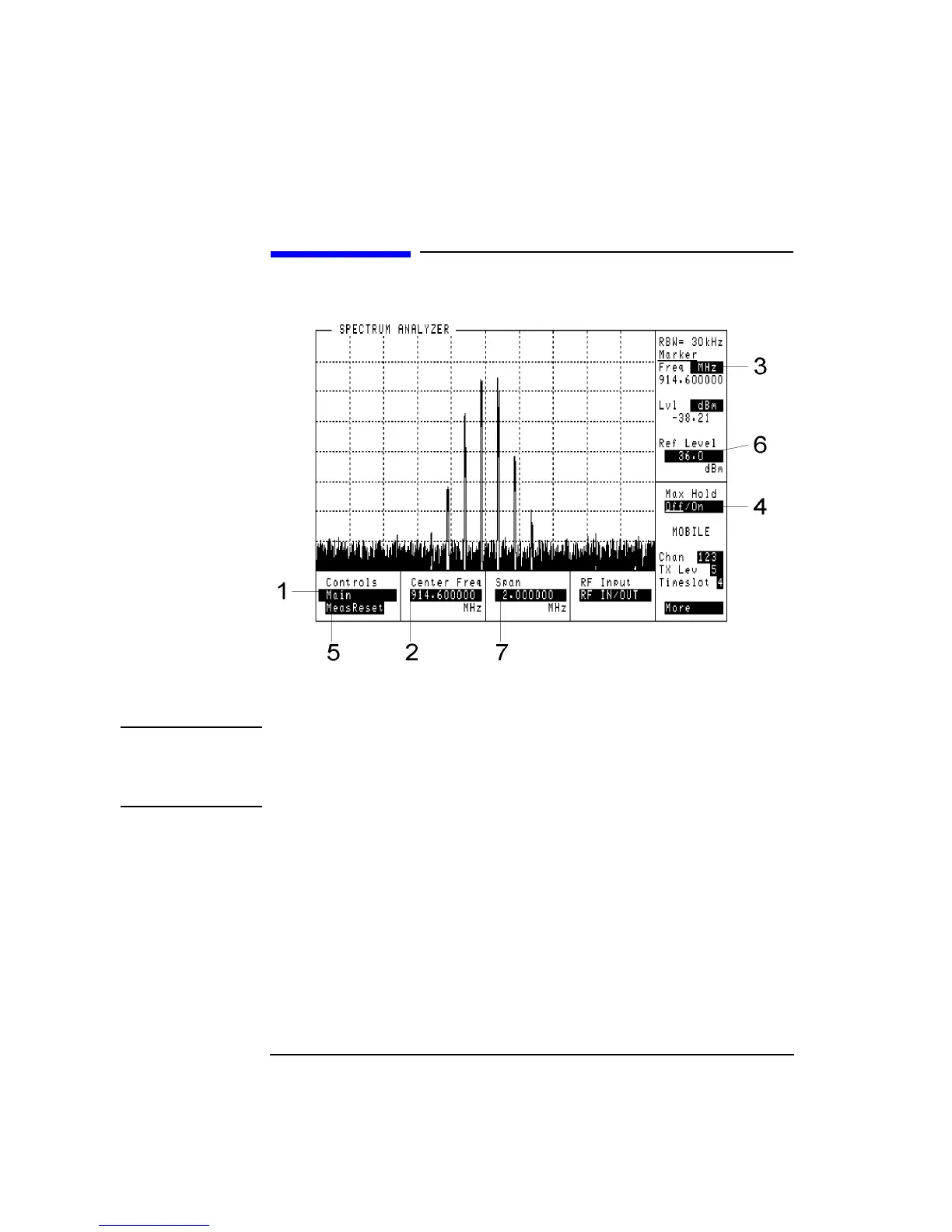

This screen displays the Spectrum Analyzer power spectral density versus frequency
trace.
IMPORTANT When Reference is set to Tunable (see Configure screen) and Offset is ≠0 ppm, the
frequency calibration of the Spectrum Analyzer will be inaccurate.
This also affects RF Analyzer outputs such as FM DEMOD OUT, DSP Analyzer
frequency measurement results, Phase, and Output RF Spectrum.
1. Controls This field selects the alternate Controls of the Spectrum Analyzer measurement.
Choices Main
RF Gen
Marker
Auxiliary
To Next Page
