Agilent Technologies 8922M - RF Generator; RF Analyzer (RF Gen)

4-115
Screens

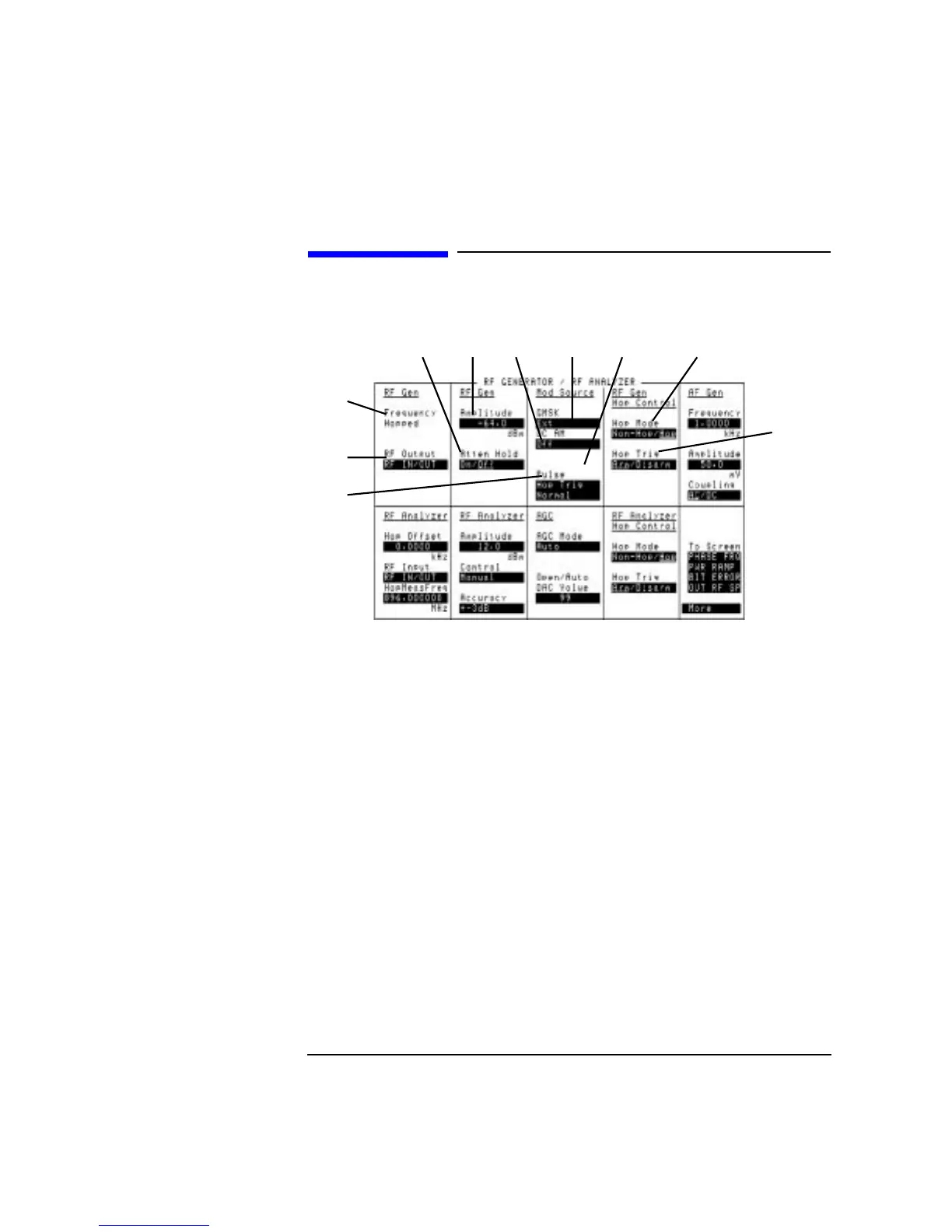

RF Generator / RF Analyzer (RF Gen)
RF Generator / RF Analyzer (RF Gen)
1. Amplitude This is the amplitude entry field. The amplitude shown is for the port selected in the
RF Output field.
Range RF IN/OUT: −127.0 to −7.0 dBm. AUX RF OUT: −127.0 to
+10.0 dBm.
See Also Chapter 3: Specifications
2. Atten Hold This field prevents attenuator switching when On is selected.
3. DAC Value This field allows the DC AM modulation level to be set through the modulation
source DAC.
Range 0 through 255
