6-12
Connectors
Rear-Panel Connectors of the Agilent Technologies 8922M/S
Electrical Characteristics of the DAI/EMMI
The state of a signal pin is defined by the voltage (V) between the pin and its
associated ground.

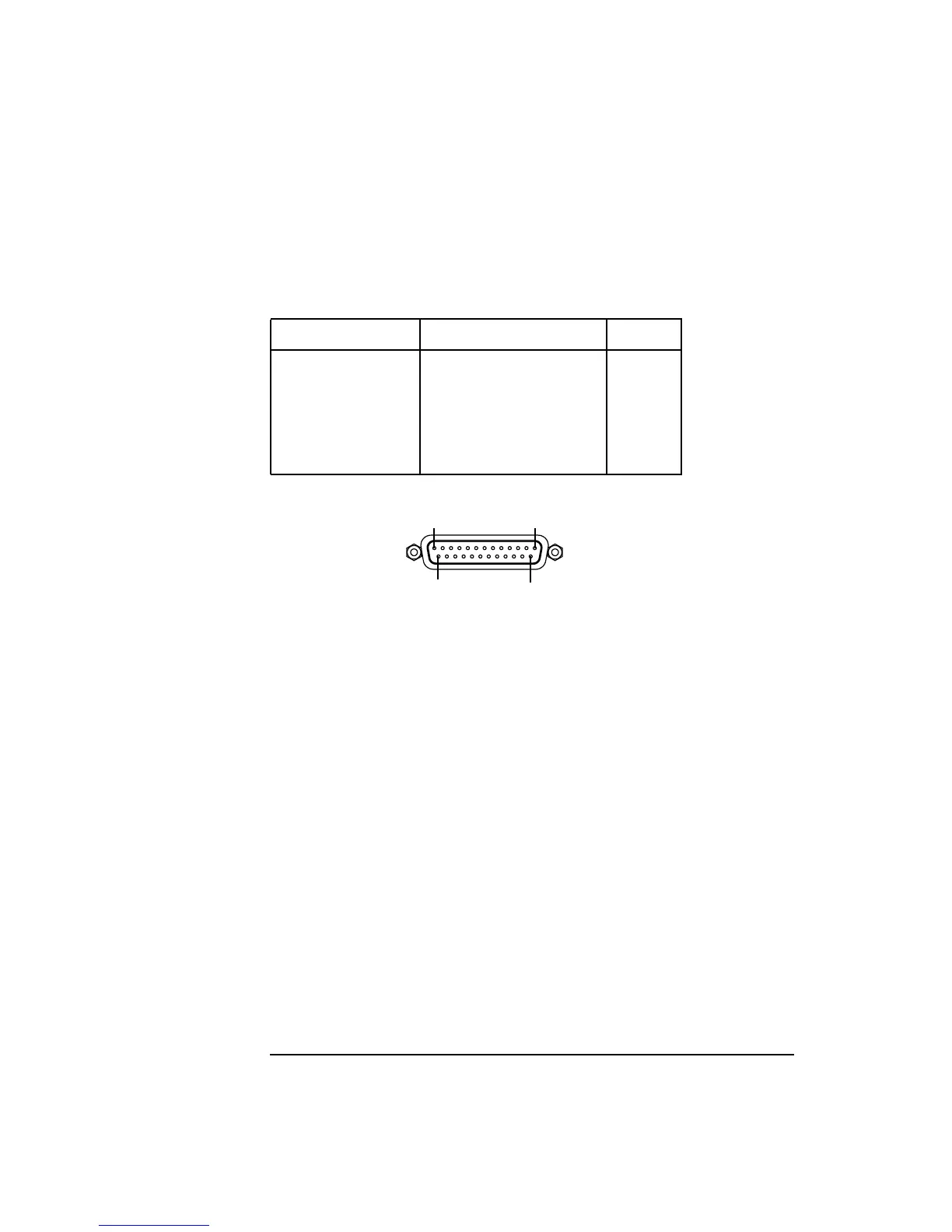

Figure 6-1 EMMI Connector Pin Numbers
See Also
Screens: Cell Control (DAI: Test, Norm)
5. GPIB The General Purpose Interface Bus is an IEEE-488.1 connector. It is connected to
the main microprocessor. This connector is used for IEEE-488.1 operation and
control of other instruments using IBASIC (if available).
The instrument can be talker and listener, or a controller, depending on selection
made in the Mode field on the Configure screen.
GPIB is always active.
See Also
Screens: Configure Specifications, GPIB,GPIB Connections
Logical State Voltage (V) Current
0 or LOW or ON 0 V < V < +0.8 V 2.4 mA
1 or HIGH or OFF +3.5 V < V < +5 V −400 µA
Undefined +0.8 V < V < 3.5 V
Forbidden V < 0 V or V > +5 V
1
13
1425
