204
Chapter 7 Plug-in Modules
N2266A 40-Channel MUX Module
7
N2266A Wiring Information
There are four methods available to connect to the N2266A:
•
A screw terminal block, the N2296A (described on page 277).
•
A direct wiring (insulation displacement) connector, the N2296A
(described on page 278).
•
A DIN96 to twin D50 Cable, the N2297A (described on page 279).
•
A DIN96 to four D25 Cable, the N2299A (described on page 281).

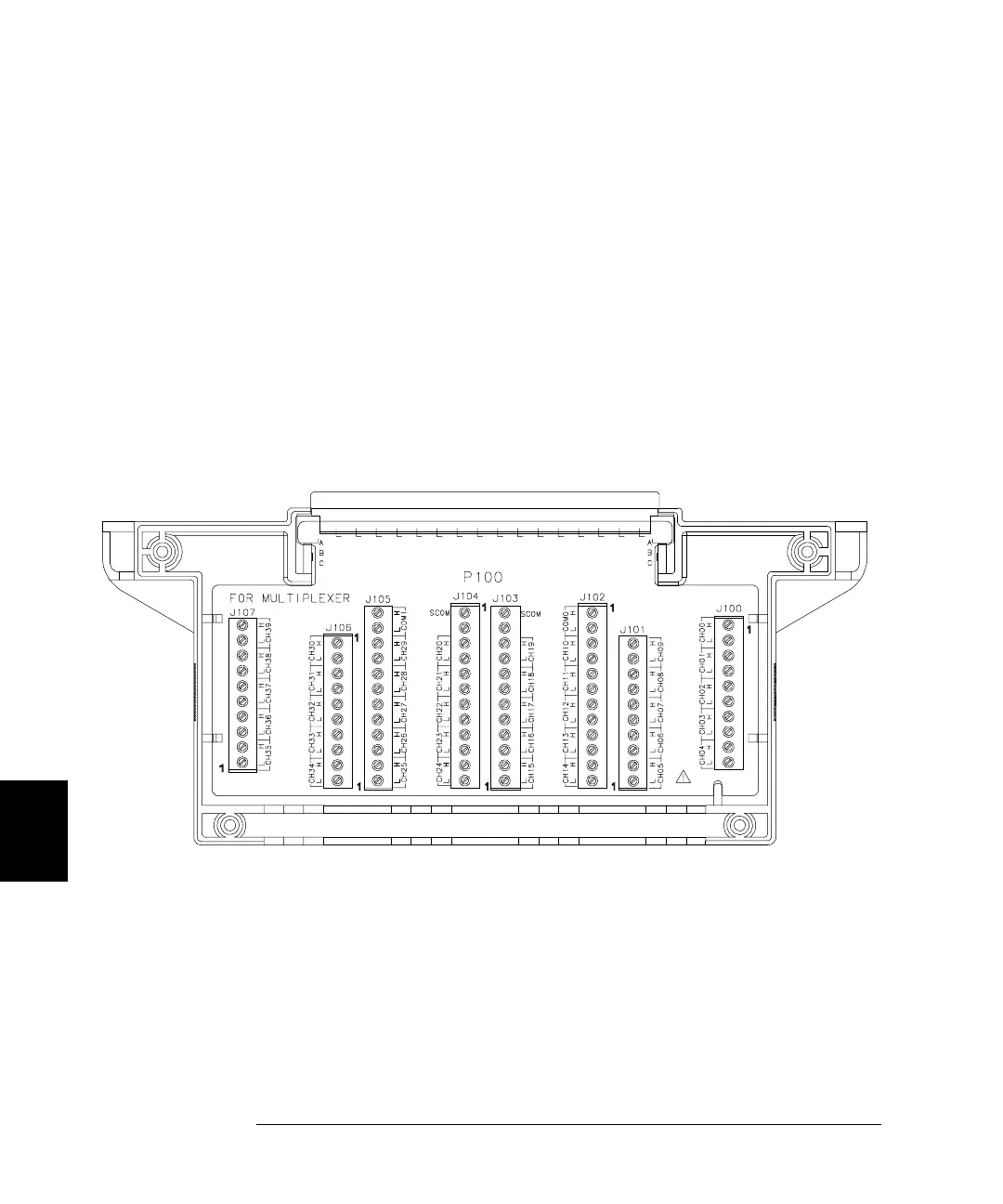

The screw terminal block (N2290A) is shown below. To use the other
connection options, you will need to use the pinout information on page
205.
