2. Set the center frequency to 50 MHz and the span to 75 MHz: press
FREQUENCY, 50 MHz, SPAN, 75 MHz.
The reference signal appears on the display.
3. View trace 1 and put it into maximum hold by pressing
View/Trace,
Max Hold. (Trace 1 should already by underlined, but if not, press
Trace 1 2 3 until 1 is underlined. and then press Max Hold.) Your
analyzer display should look similar to Figure 2-8.

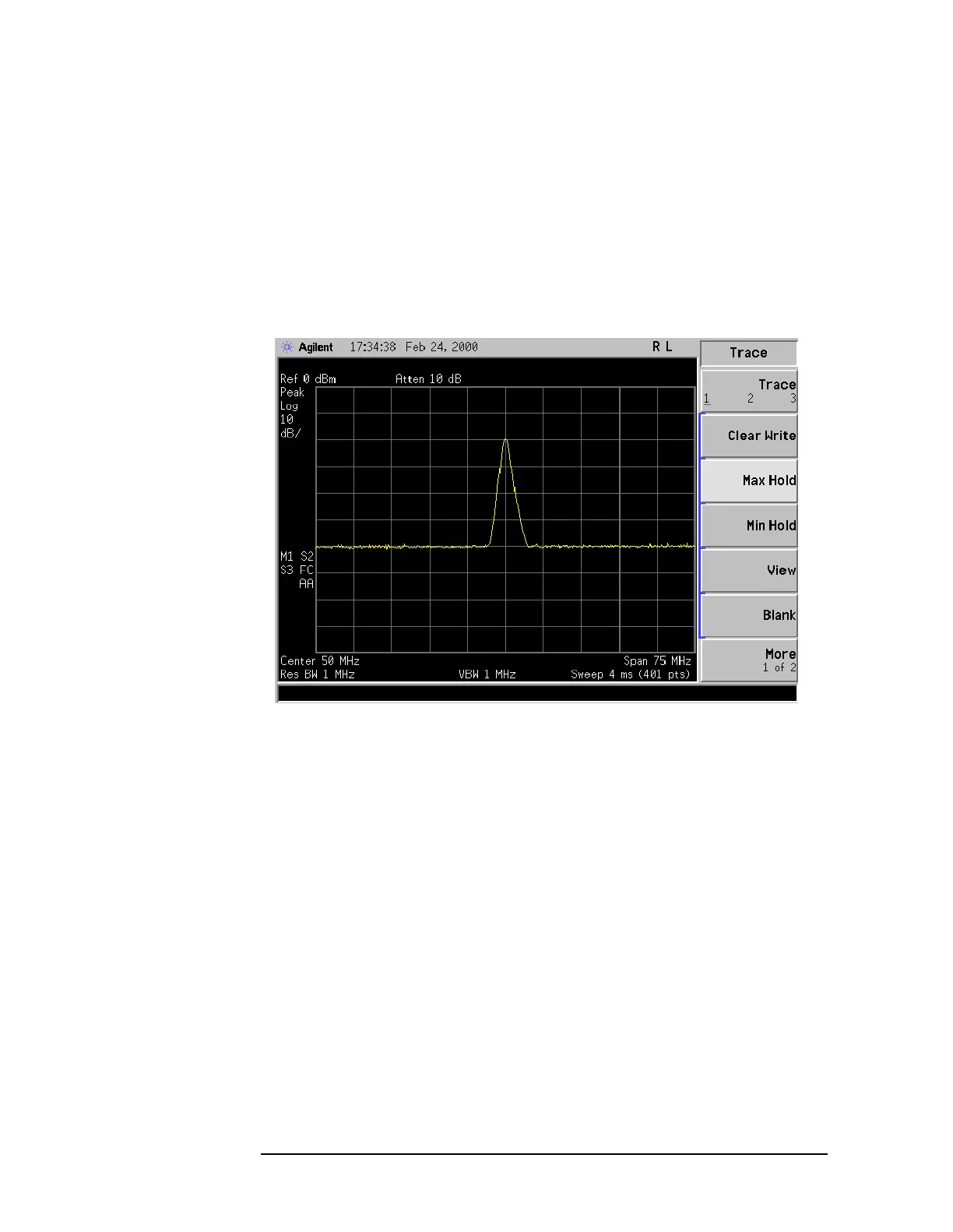

Figure 2-8 Viewing Trace 1
4. Activate trace 2 and put it into minimum hold by pressing
Trace (2),
Min Hold. Your analyzer display should look similar to Figure 2-9.
