2-85

Assembly Replacement

A31 Motherboard (E8247C/57C)

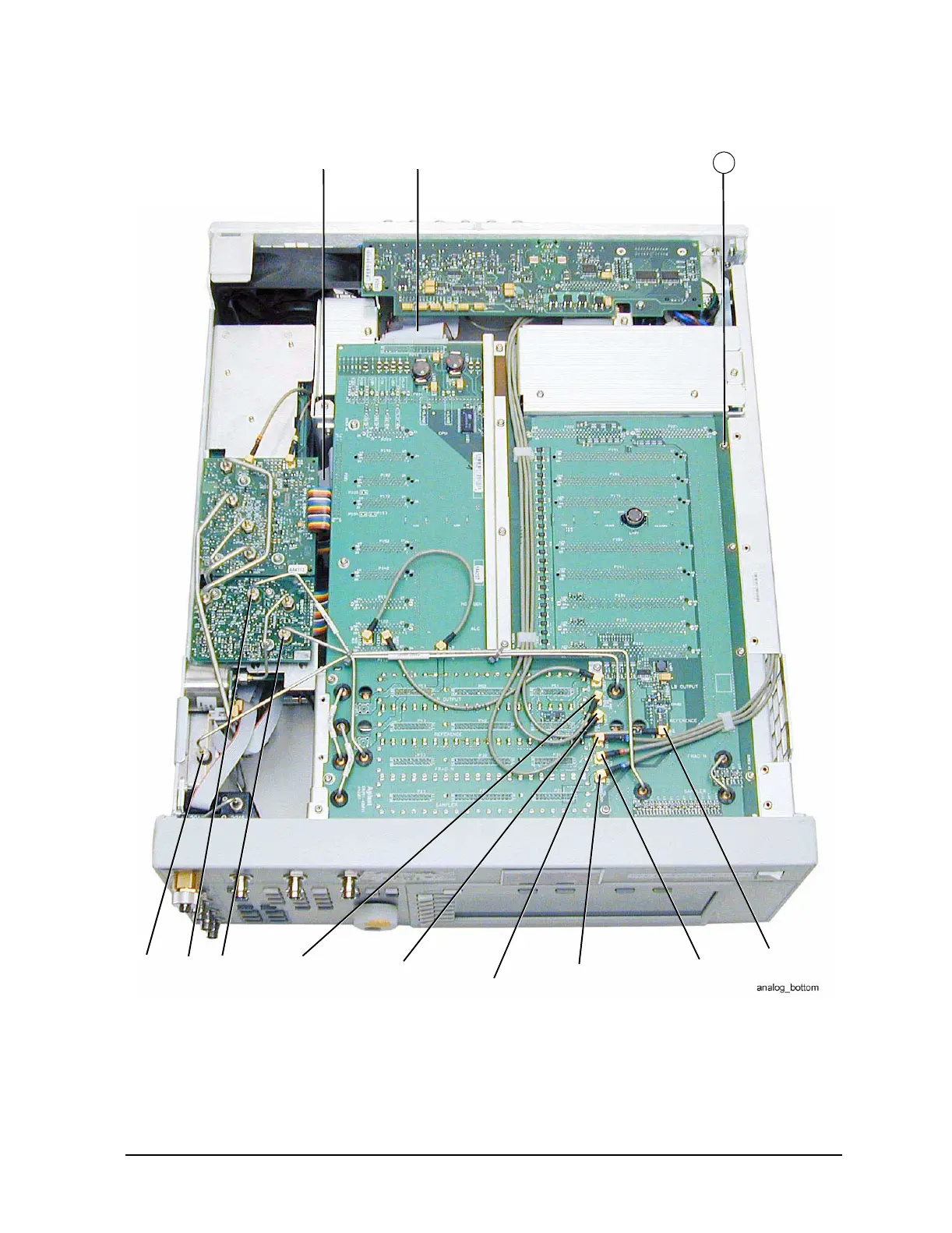

Figure 2-41 A31 Motherboard (E8247C/57C)

W35

W23

W37

W39

W40

W11/A31J1021

W21/A31J1043

W10/A31J1031

W22/A31J1042

W47/A31J1041

W54/A31J1032

Table of Contents3
