3-12

Replaceable Parts

Assemblies and Hardware Options

Assemblies from the Inside Rear Panel View

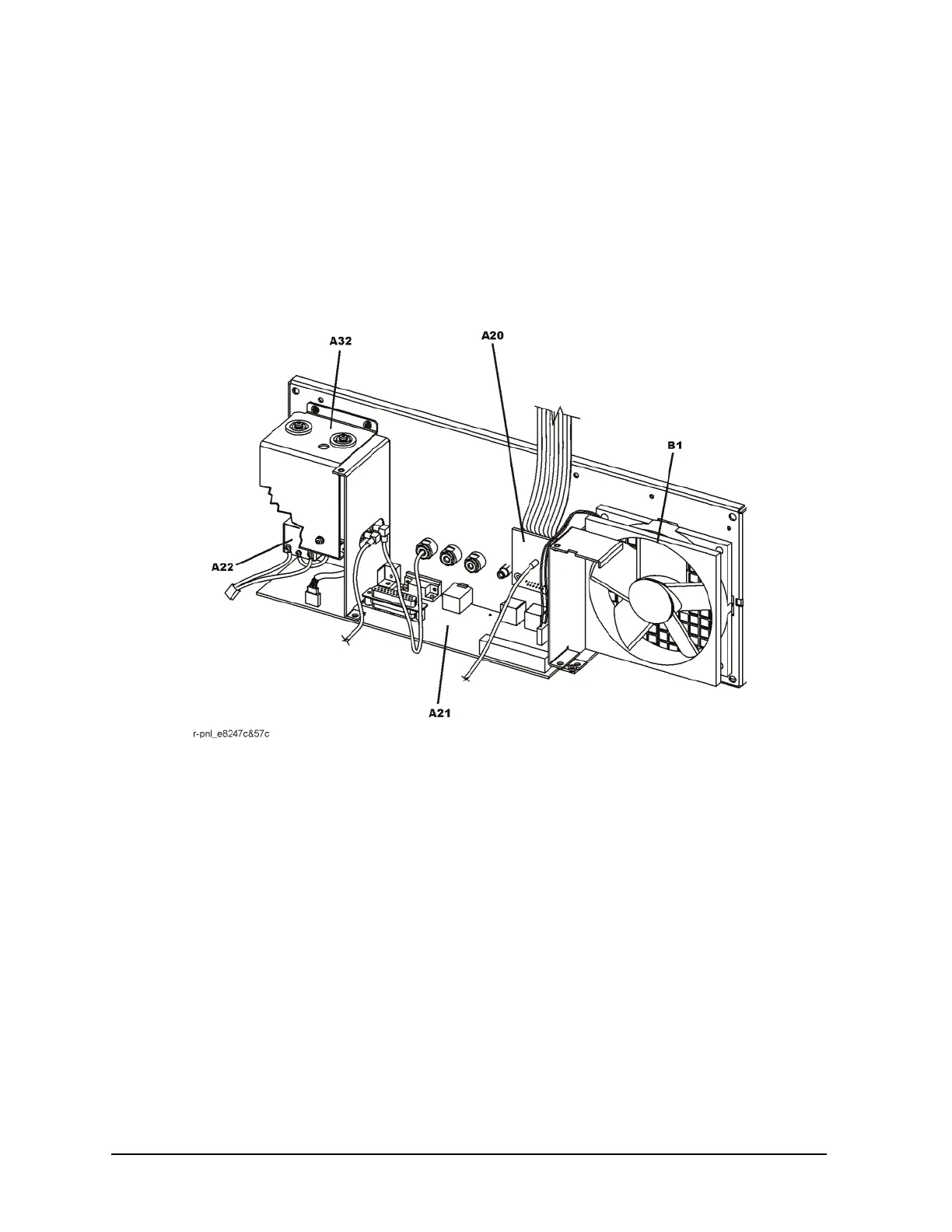

Figure 3-5 Assemblies from the Inside Rear Panel View (E8247C and E8257C)
