Agilent Technologies E8257C User Manual

1-32
Troubleshooting
Troubleshooting Assembly–Level Problems

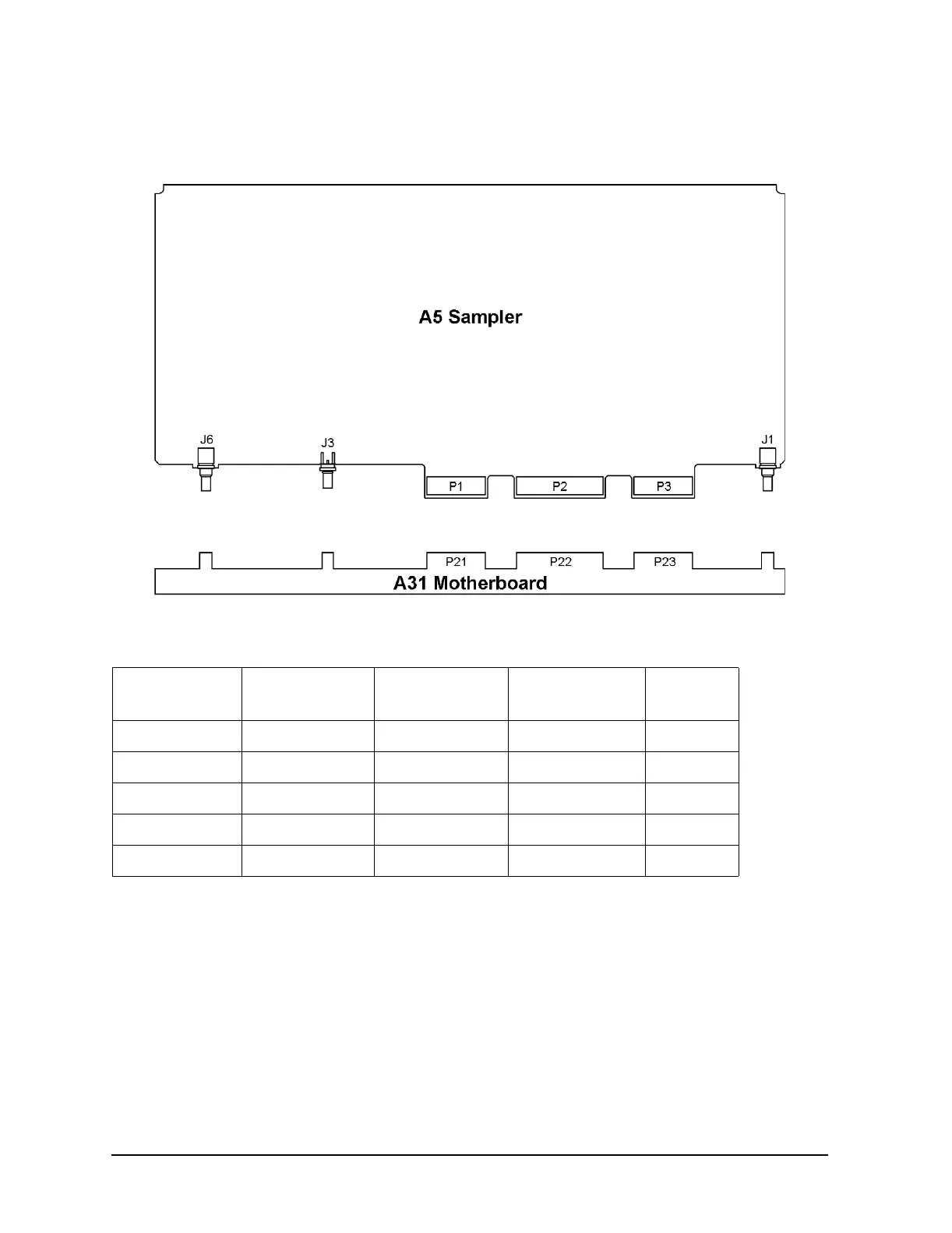

Self–Tests 2xx: A5 Sampler Self–Test Errors
Before proceeding to the reported self–test error code, check the following voltages. If any voltages
are out of specification troubleshoot the supply problem first.
200 Power Supply
1. If the supply voltages are good on the connector pins indicated, replace the A5 Sampler.
2. If the supply voltages are bad on any of the connector pins indicated, check the origin of the
supply.
3. If the supply voltages are good at the origin, replace the A31 Motherboard.
4. If the supply voltages are bad at the origin, troubleshoot the problem using that assembly’s
troubleshooting procedure.
Supply Voltage
(Vdc)
Connector Pins Minimum Value
(Vdc)
Maximum Value
(Vdc)
Origin
+32
P22
–7
+31.04 +32.96 Main Supply
+15
P22
–6, 21
+14.55 +15.45 Main Supply
–15 P22–2, 17 –14.55 –15.45
Main Supply
+5.2
P22
–14, 29
+5.04 +5.37 Main Supply
+9
P22
–5, 20
+8.82 +9.18 YIG Driver
