44 Agilent 1260 Infinity VWD User Manual
3 Installing the Detector
Installing the Detector
3 Ensure the line power switch at the front of the detector is OFF.

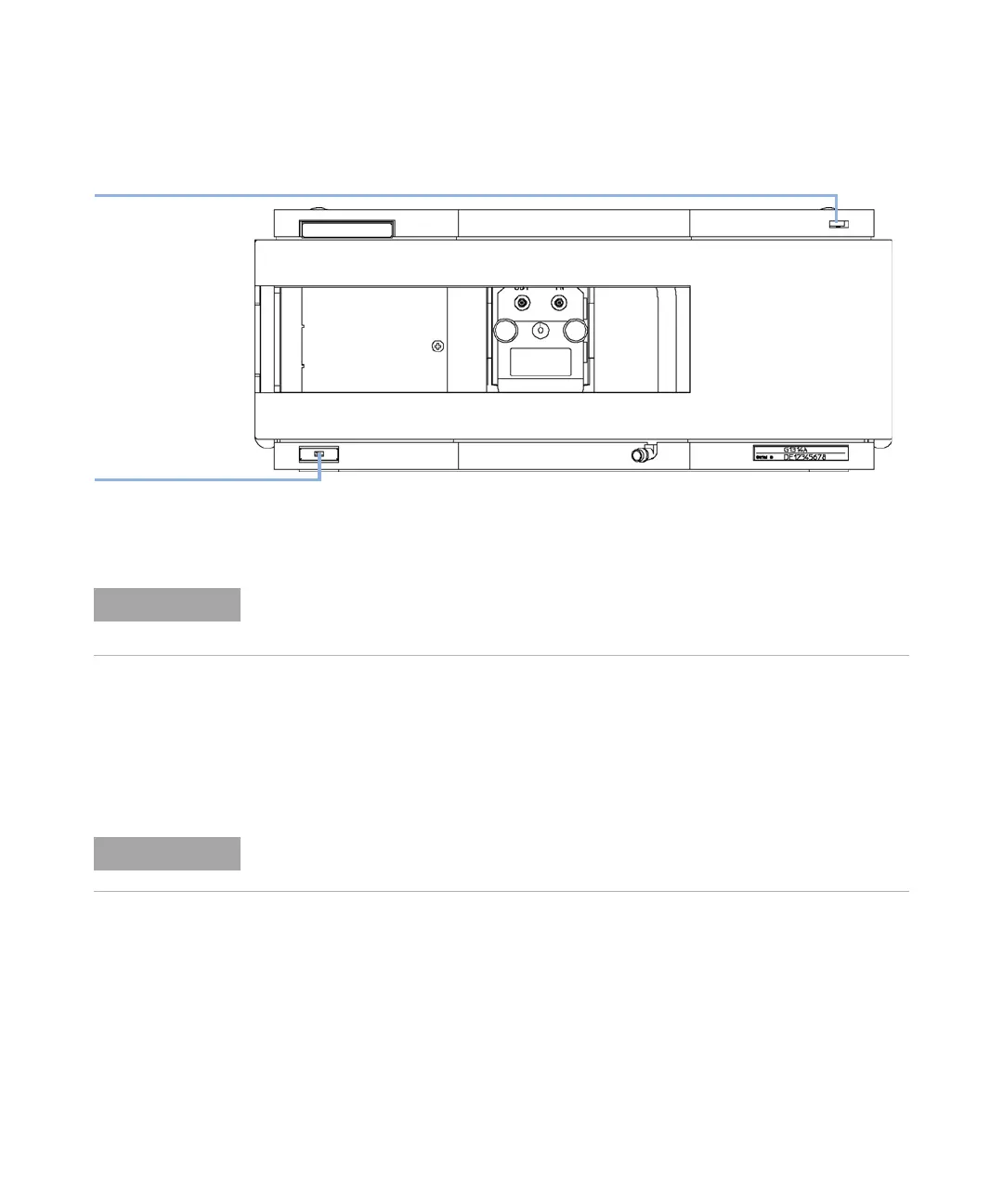

Figure 11 Front View of Detector
4 Connect the power cable to the power connector at the rear of the
detector.
5 Connect the CAN cable to other Agilent 1260 Infinity modules.
6 If a Agilent ChemStation is the controller, connect the LAN connection
to the LAN interface board in the detector.
7 Connect the analog cable (optional).
8 Connect the APG remote cable (optional) for non- Agilent 1260 Infinity
instruments.
HiVijh^cY^XVidg
\gZZc$nZaadl$gZY
A^cZedlZghl^iX]l^i]
\gZZca^\]i
NOTE
The figure above shows the flow cell already installed. The flow cell area is closed with a
cover. The flow cell has to be installed as described in “Flow Connections to the
Detector” on page 46.
NOTE
If an Agilent 1200 Infinity Series DAD/MWD/FLD is in the system, the LAN should be
connected to the DAD/MWD/FLD (due to higher data load).
