Agilent 1260 Infinity VWD User Manual 45
Installing the Detector
3
Installing the Detector
9 Turn ON power by pushing the button at the lower left- hand side of the
detector. The status LED should be green.

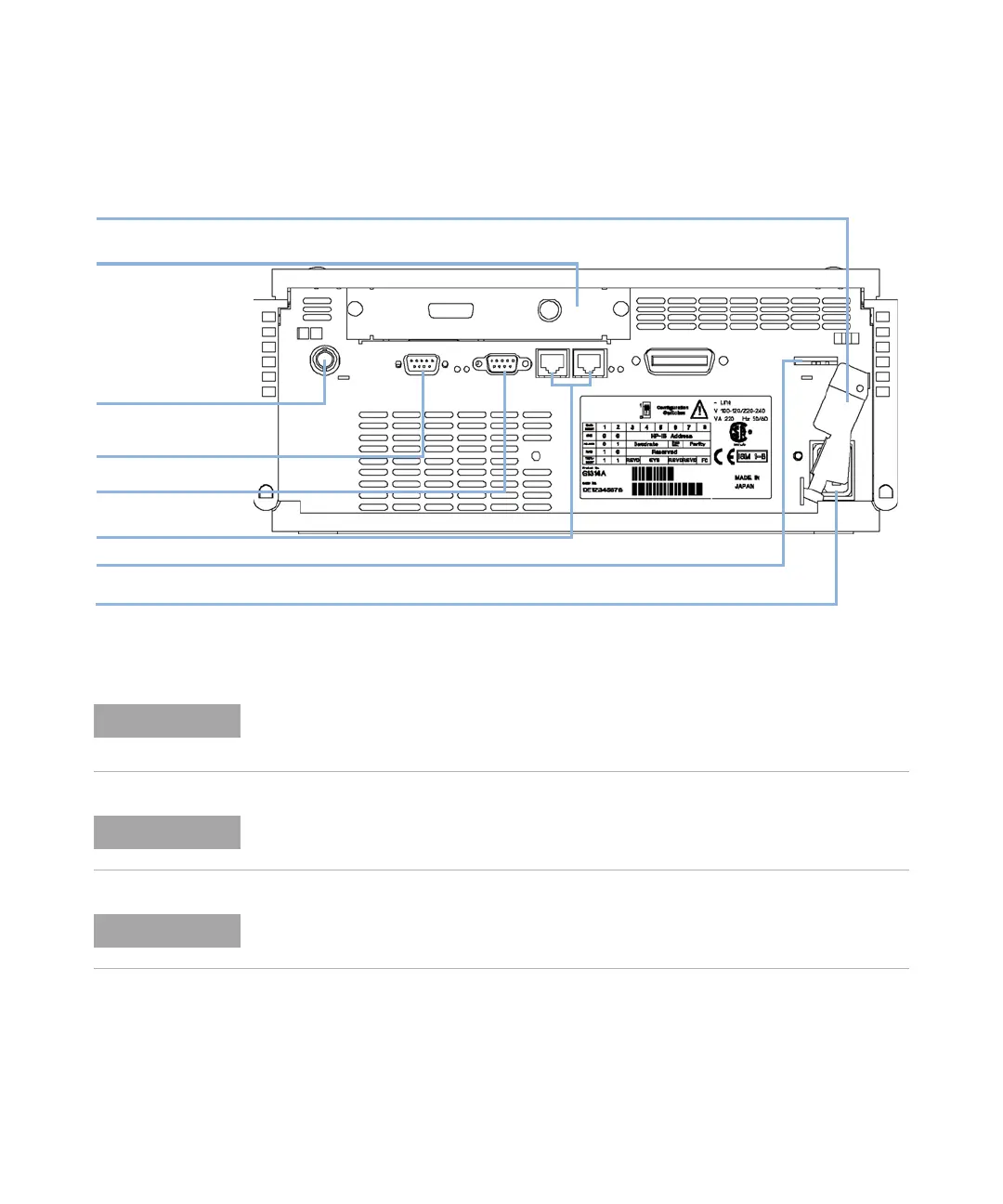

Figure 12 Rear View of Detector
>ciZg[VXZWdVgY
HZXjg^inaZkZg
6E<GZbdiZ
GH"'('8
86C
8dc[^\jgVi^dchl^iX]
EdlZg
6cVad\h^\cVa
The detector is turned ON when the line power switch is pressed and the green indicator
lamp is illuminated. The detector is turned OFF when the line power switch is protruding
and the green light is OFF.
To disconnect the detector from line, unplug the power cord. The power supply still uses
some power, even if the power switch at the front panel is turned OFF.
The detector was shipped with default configuration settings. To change these settings,
see “Setting the 8-bit Configuration Switch (without On-board) LAN” on page 182.
