Installing the GC 1
Agilent Intuvo 9000 GC Installation 21
4

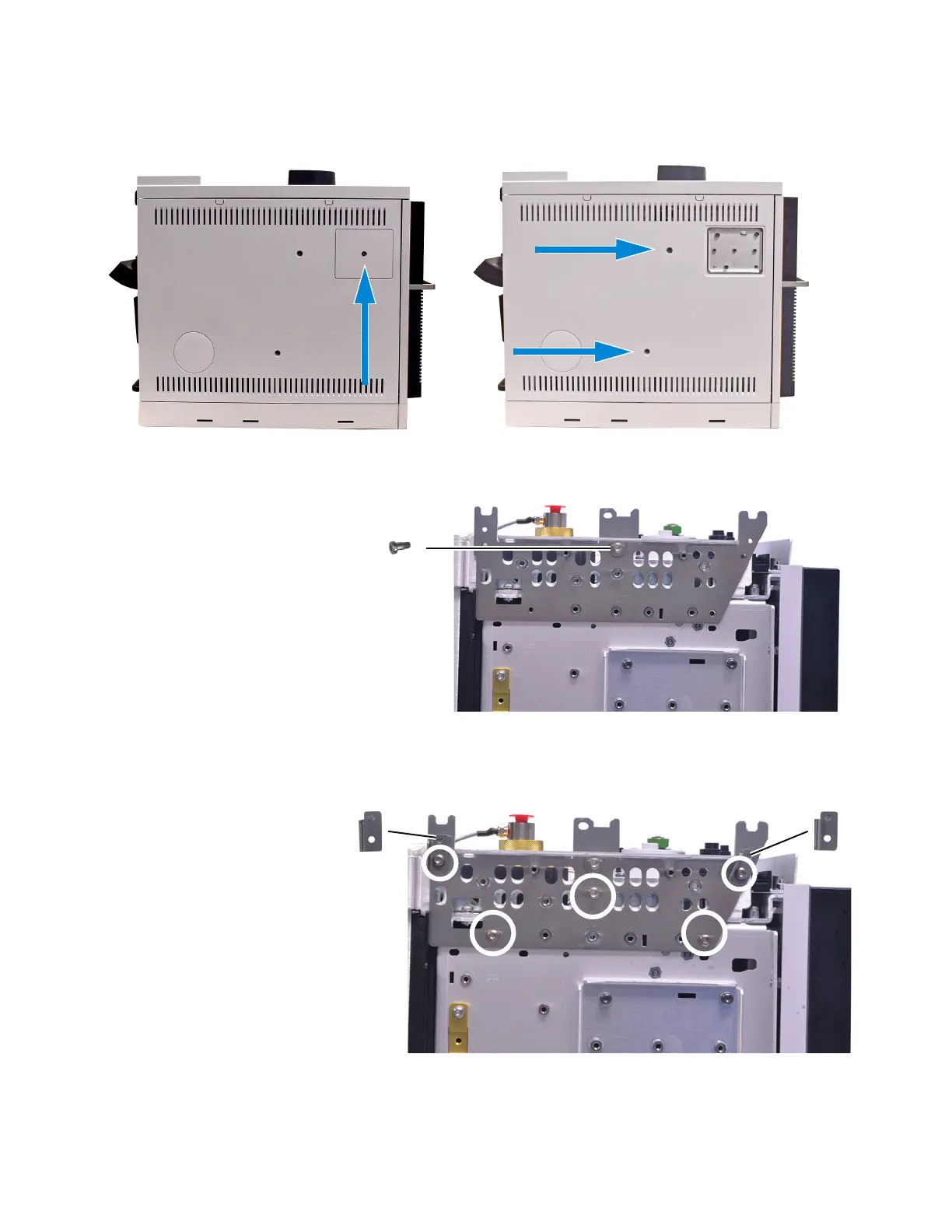

Install pivot block with shoulder screw (0515-3005).
5 Install the two pivot block backers (G4580-00272) with two
screws (0515-2113), then attach three screws (0515-2113) to
the bottom three holes of the pivot block.
6 If not using a D2 or MSD, remove the two captive screws in
the left-side panel. Install the left side panel onto the GC
0515-3005
