22 Agilent Intuvo 9000 GC Installation
1 Installing the GC
(without screws — you will install two new screws in a later
step). Install the MSD frame cover.

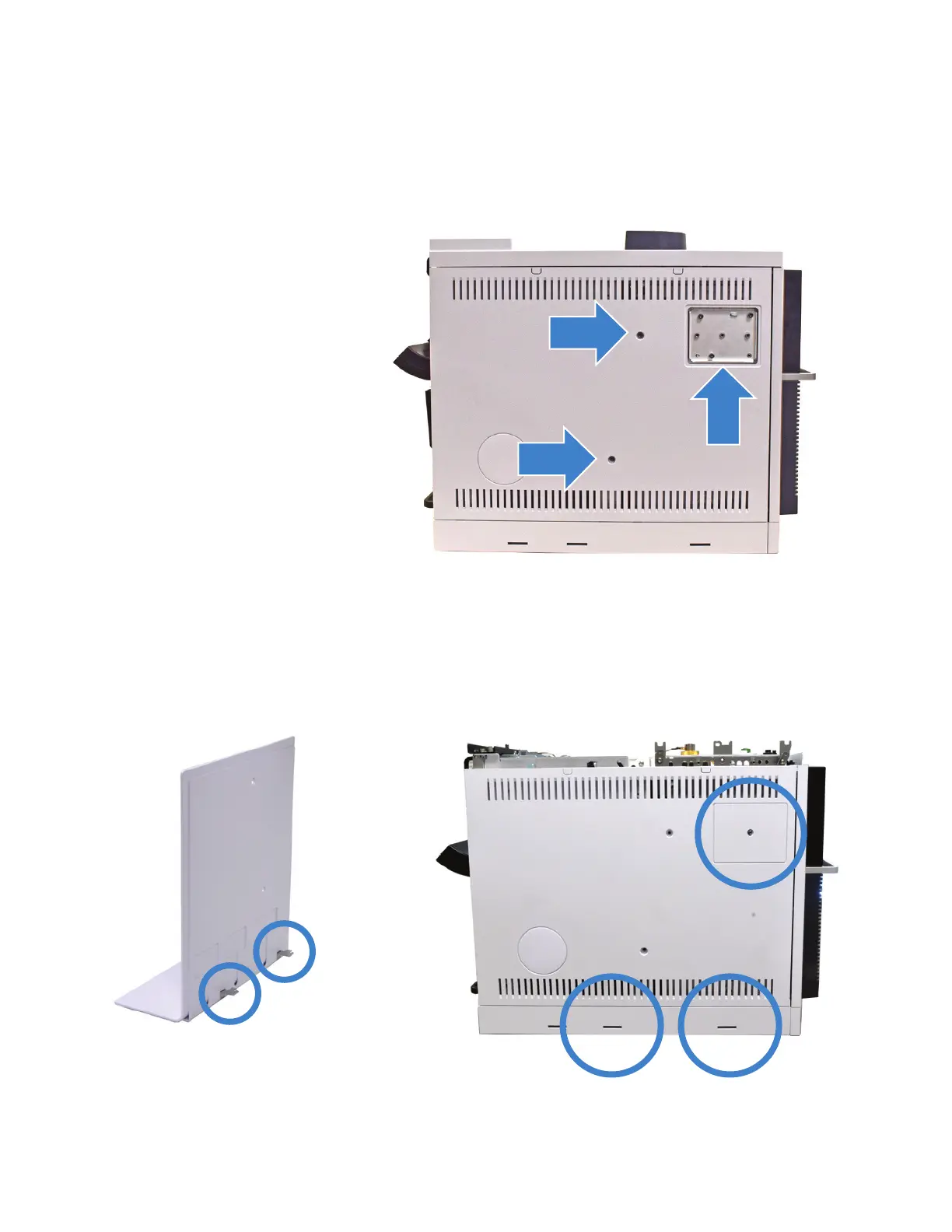

7 If using a D2 or MSD, install the left side panel onto the GC.
(Do not install the MSD frame cover.)
8 If not using a D2 or MSD, install the MSD cover insert, then
attach the support truss (G4580-60517) to left side of GC.
If using a D2 configuration or MSD, you will not have a
support truss. Skip this step.
