Agilent Technologies Velocity11 VSpin User Manual

27
Chapter 3: Installation
VSpin User Guide

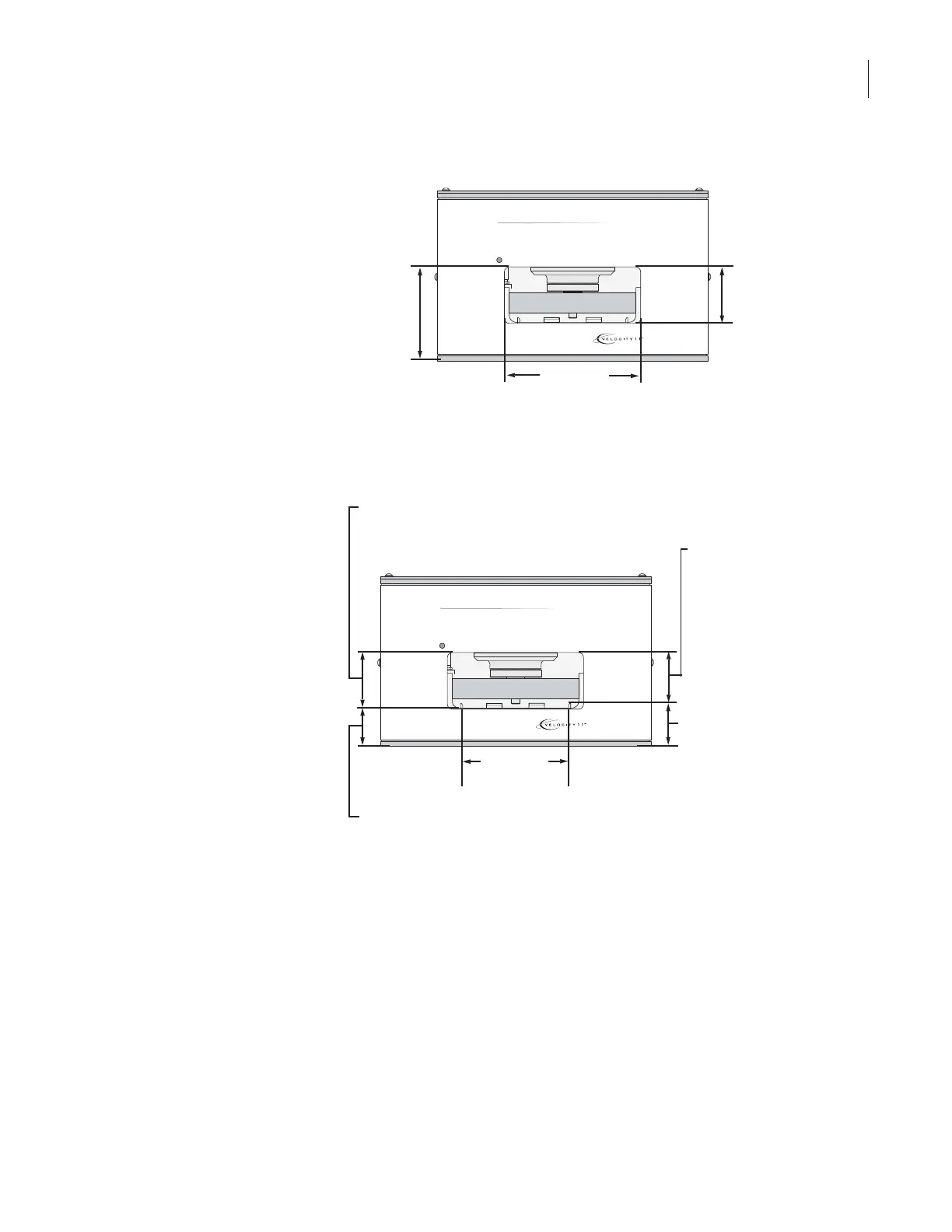

2. Reference the following diagram for the VSpin door dimensions.
This is the front view, with the door open.
3. Reference the following diagram for the VSpin plate entry
dimensions.
This is the front view, with the door open.
00074
Vspin
door dimensions
00074
VSpin
6.50 inches
(16.5cm)
4.47 inches
(11.4cm)
2.70 inches
(6.86cm)
00074
Vspin
door dimensions
00074
VSpin
5.04 inches
(12.8 cm)
Bucket width
2.65 inches
(6.74 cm)
From door top edge to
bucket bottom surface
2.51 inches
(6.38 cm)
From door top edge to
top of front bucket tabs
1.82 inches
(4.62 cm)
From bucket surface to VSpin
bottom mounting surface
1.96 inches
(4.98 cm)
From VSpin bottom mounting
surface to top of bucket tabs
