31
Chapter 3: Installation
VSpin User Guide
Installing the Buckets
Overview After unpacking the VSpin, you need to install the buckets. The buckets
are packaged in their own box to minimize damage to the VSpin during
shipment.
Procedure To install or replace a bucket:
1. Open the door manually.
See “Unlocking and Opening the Door Manually” on page 69.

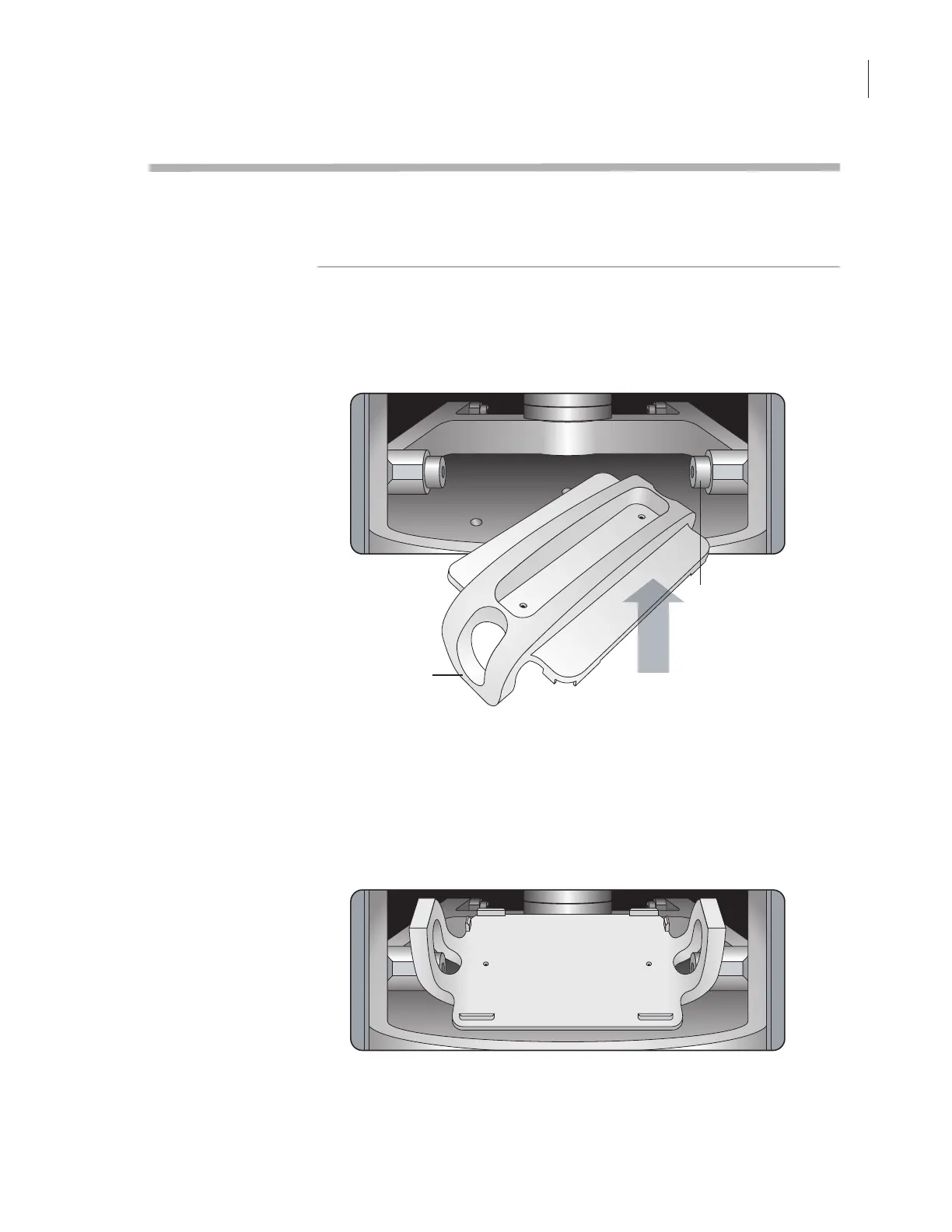

2. Pass the bucket through the door as shown in the diagram.
3. Flip the bucket right-side-up so that the bucket hangers line up with
the rotor pins.
4. Align the bucket hangers so they are positioned over the rotor pins
on the rotor.
Make sure that after you turn the bucket over, the side of the bucket
with the four tabs is facing towards the center of the VSpin as shown
in the next diagram.
5. Push the bucket onto the pins until it seats snugly and can pivot
freely.
00112
VSpin
bucket insertion
00112
Bucket hanger
Rotor pin
00106
VSpin
bucket removed
00106
00102
VSpin
Bucket
00102
