29
Chapter 3: Installation
VSpin User Guide
Mounting the VSpin
Required
Preparation
This procedure assumes that you have already:
❑ Prepared your mounting surface
❑ Drilled the necessary holes
❑ Tapped the screw threads in your benchtop or mounting plate.
About the Procedure Velocity11 provides four M6 X 30 flathead screws. You may need to
obtain screws that are a more suitable length for your particular
laboratory setup.
!! DAMAGE HAZARD !! When you remove the VSpin covers
during this procedure, the circuit board will be exposed. This
can be easily damaged. Do not touch the circuit board, and
ground yourself with a device such as an anti-static wrist-band to
avoid static discharge.
!! INJURY HAZARD !! Do not turn on the VSpin power when
the covers are off. Touching the circuit board when the power is
on could give you a shock.
Mounting the VSpin To mount the VSpin to a stable surface:

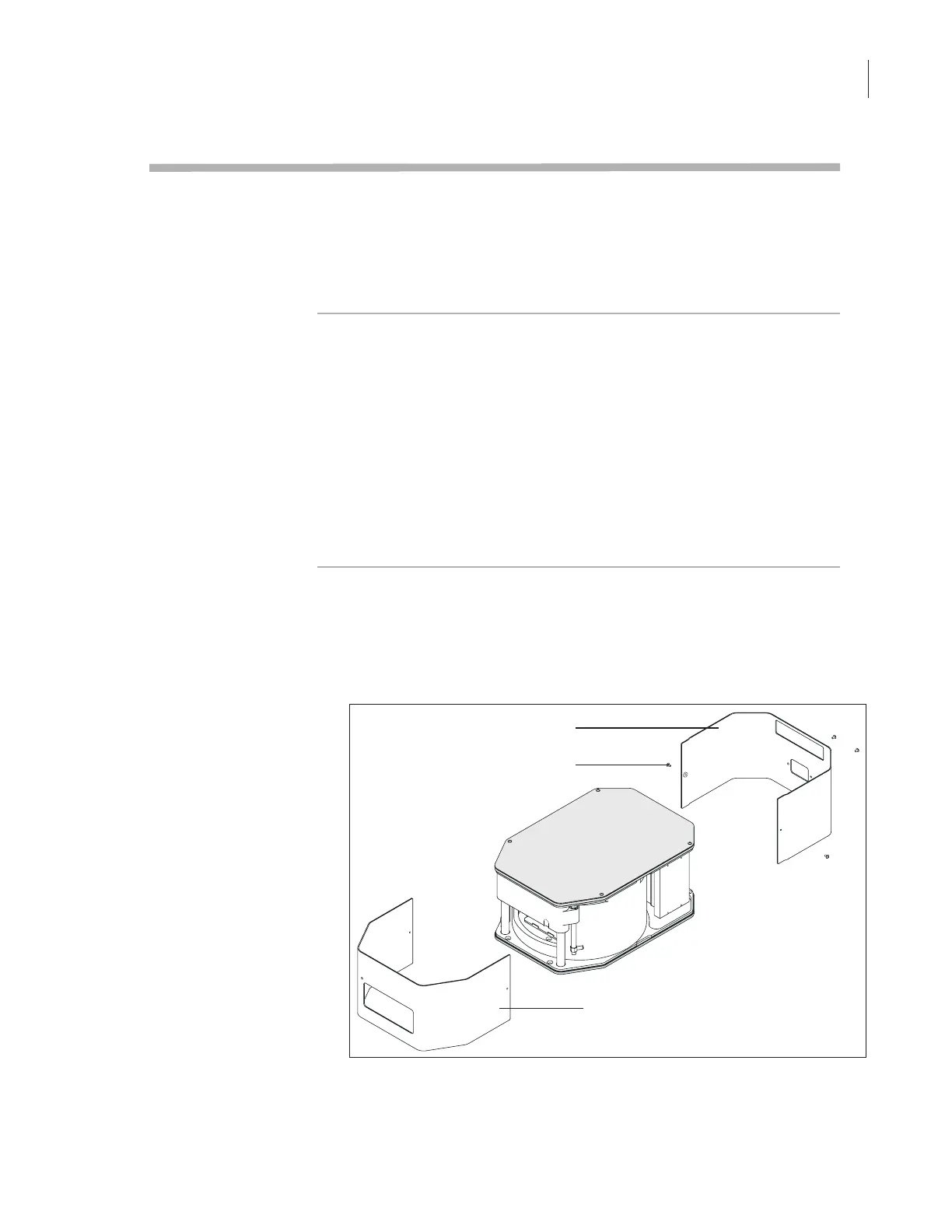

1. Remove the front and back VSpin covers, using the following
diagram for reference.
There are four retention screws and washers for each cover.
Use a 2.5mm allen wrench to remove the screws.
00076
VSpin
shroud removal
00076
Front cover
Back cover
Cover retention screw and washer (x4)
