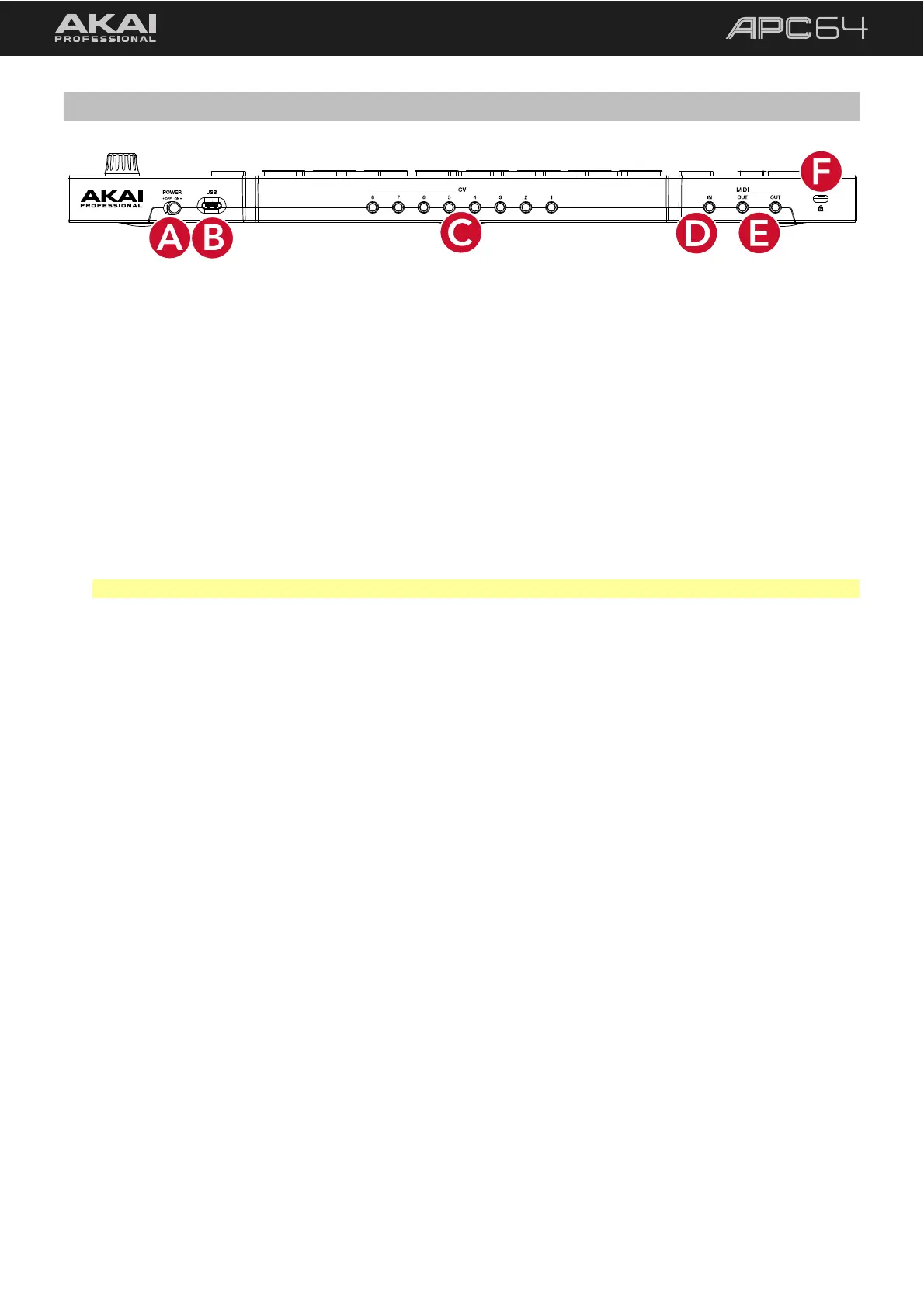

3.2 Rear Panel
A. Power Switch: Use this switch to power APC64 on and off.
B. USB Port: Connect the included USB cable here and connect the other end to your computer’s USB 3.0 port
to use APC64 with Ableton Live or send MIDI data over USB. You can also connect this port to a standard USB
power adapter (sold separately) to power the unit for standalone use.
C. CV/Gate Outputs: Insert a 1/8” (3.5 mm) TS cable into one of eight outputs and connect to an external
device’s CV input to send CV/Gate signals from APC64 to the connected device. See 5.8 Operation > CV
Operation for more information.
D. MIDI Input: Use the included 1/8” (3.5 mm)-to-MIDI adapter and a standard 5-pin MIDI cable (not included)
to connect APC64 to another MIDI controller.
E. MIDI Outputs: Use the included 1/8” (3.5 mm)-to-MIDI adapter and a standard 5-pin MIDI cable (not
included) to connect to an external device to send MIDI messages to.
Note: The two MIDI Output ports are mirrored and send the same data.
F. Kensington
®
Lock Slot: You can use this slot to secure your APC64 to a table or other surface.
