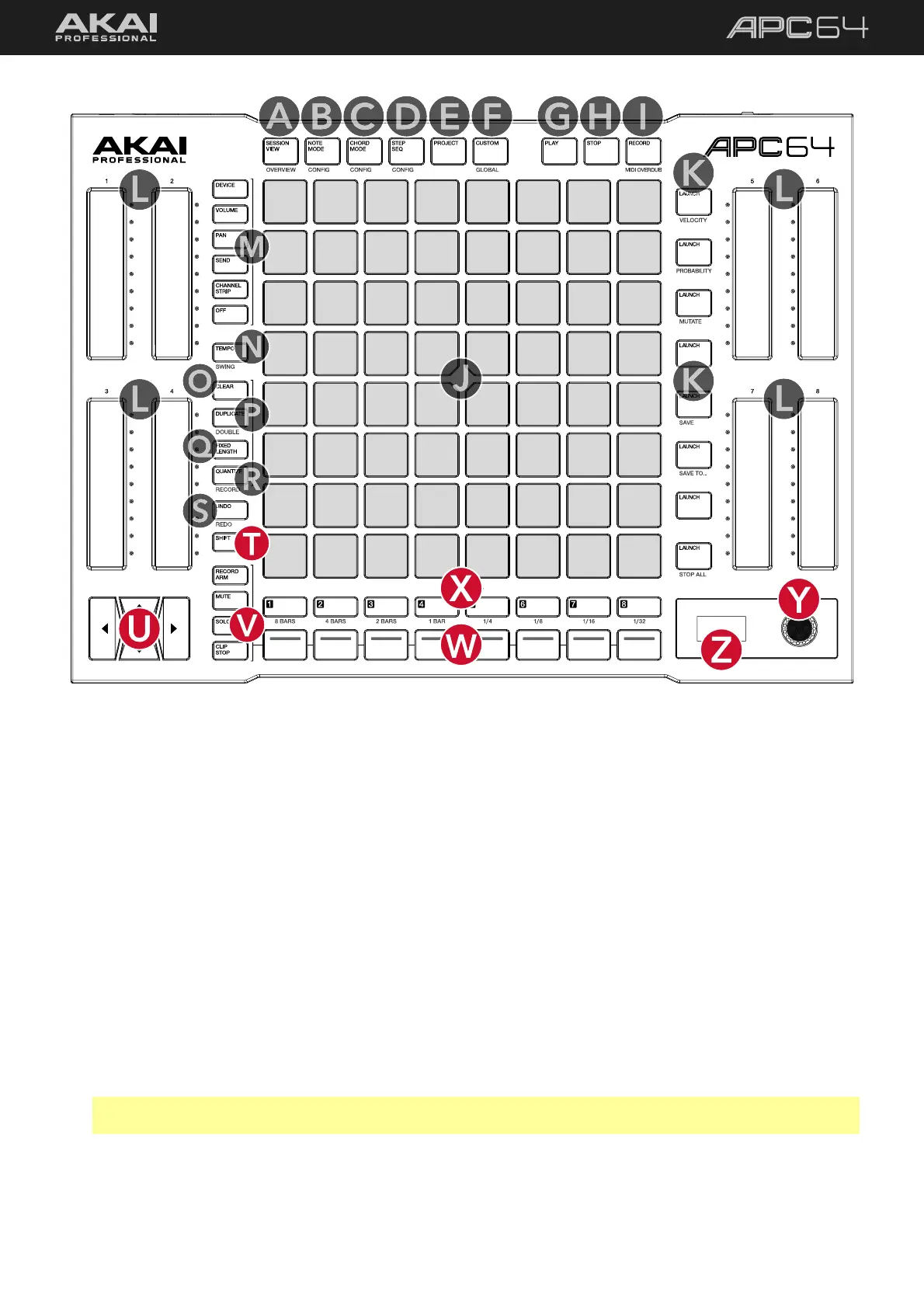

T. SHIFT: Press and hold this button to access secondary button functions, printed below the buttons.
U. Cursors: Use these directional buttons as a cursor to navigate tracks and scene banks on the Pad Grid, as
well as device parameters in DEVICE touch fader mode.
V. Control Row Function Select: Press one of these four buttons to set the function of the Control Row buttons:
RECORD ARM: Arm the selected track for recording.
MUTE: Mute the selected track.
SOLO: Solo the selected track.
CLIP STOP: Stop clips in the selected track.
W. Control Row: Press to perform selected Control Row Function on the corresponding track only.
X. TRACK SELECT: Press to select the corresponding track.
Press and hold SHIFT and press these buttons to set the launch quantization value.
Y. Encoder: Turn this knob to select options on the display screen and push it to select.
Note: When connected to Ableton Live, pressing this encoder will also enable or disable the metronome if
you are not in another editing menu.
Z. Display: This screen shows track and device information from your Ableton Live session and information
about the device’s controls.
