Akai S6000 User Manual

10 Version 1.21
INTRODUCTION s5000 / s6000

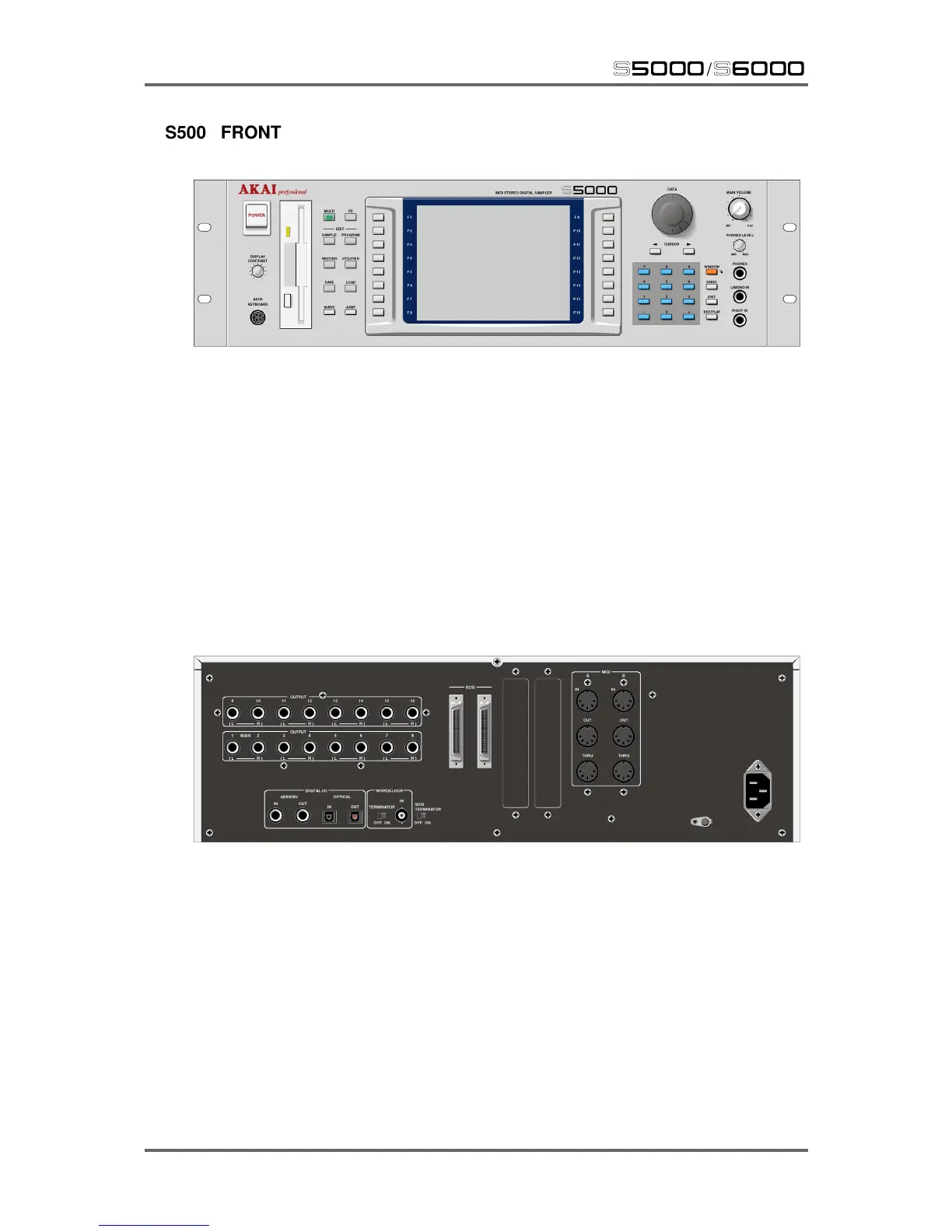

S5000 FRONT PANEL
Although laid out differently to accommodate the ergonomics of the S5000’s 3U panel, the keys
and controls on the S5000 are almost identical to the S6000’s except that the S5000 omits the
USER KEYS.
Another difference is that the S5000 does not have rear panel analogue audio inputs so the ones
found on the front of the S5000 are the main analogue record inputs.
It is also not possible to install an optional removable drive on the S5000’s front panel.
S5000 REAR PANEL
Again, the S5000’s rear panel is almost identical except that there are no balanced XLR inputs or
outputs and outputs 9-16 are optional.

Akai S6000 Specifications

General

Type	Sampler
Polyphony	128 voices
Bit Depth	16-bit
Filters	Multi-mode resonant filters
LFO	Yes
MIDI	In, Out, Thru
Storage	SCSI
Display	LCD
Connectivity	SCSI
Outputs	8 individual outputs, stereo out
Formats	WAV, AIFF, Akai S1000/S3000
Memory	Up to 256 MB
Inputs	2 analog
