INSTALLING EXTRA MEMORY (To Service Technicians)
To install extra memory, you must remove the top of the case.
** IMPORTANT NOTE **
Consult your AKAI professional dealer regarding installation of any options (including
memory) to the S5000 or S6000. Self-servicing or user installation of memory boards
and/or options may cause malfunction of components or the instrument itself.
AKAI professional does not guarantee against the unit’s malfunction, damage or any
loss caused by self-servicing, user installation of memory and or options or improper
operation.
Remove the top of the case by undoing the four large screws on top of the case and the smaller

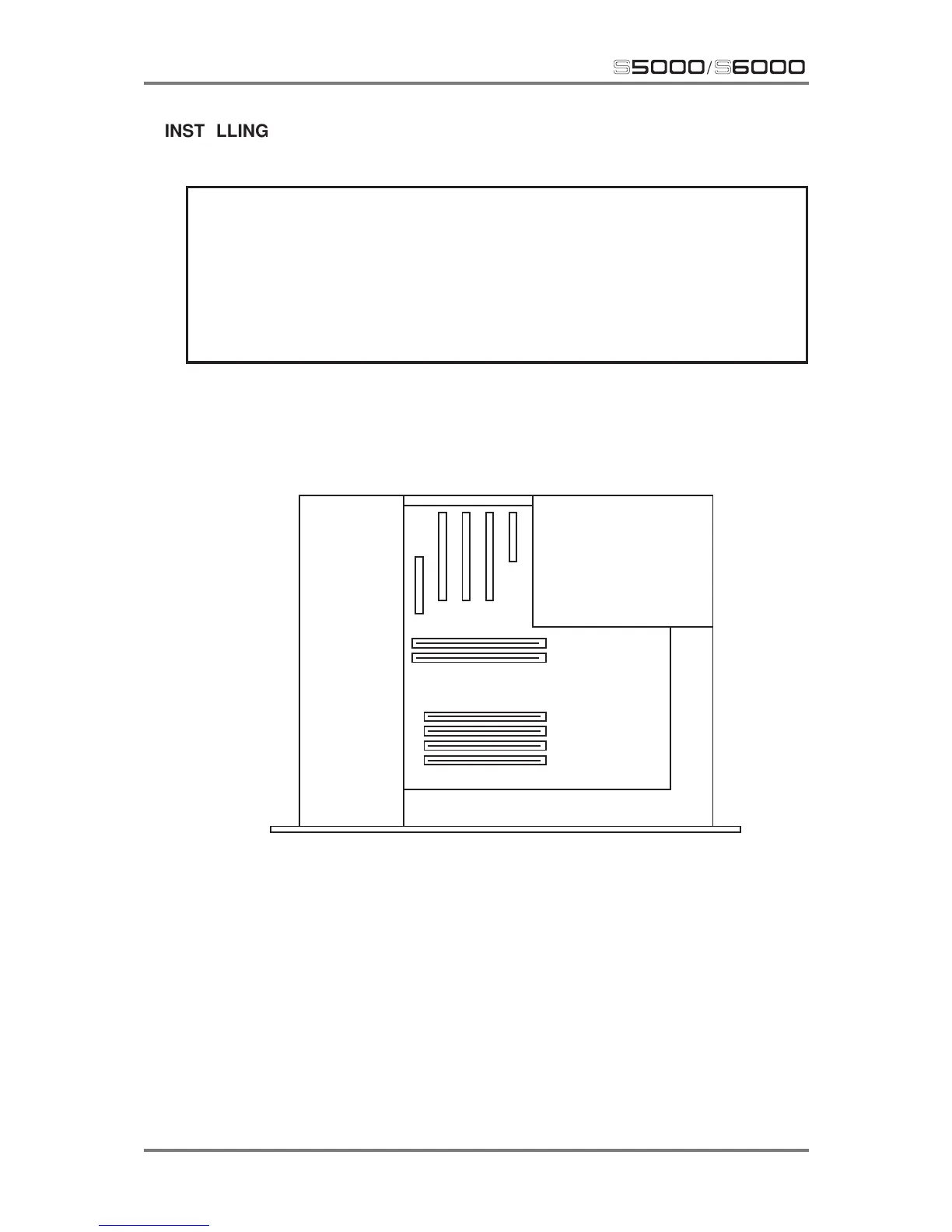

screw in the centre of the top of the rear panel. Looking inside the S5/6000, you will see something
like this:
Analogue Outputs
Option Slots
Voice Card Slots
SIMM Slots
1
2
4
3
Power Supply
Disk Drives
The S6000’s internal memory can be expanded to 256Mbytes. The S6000 comes with 8Mb of
memory ‘hardwired’ and there are four slots in which you can install SIMMs. Installation is fairly
simple. The SIMMs board is inserted at a slight angle and then pushed back where it clips into
place. Because SIMMs boards can differ, it is not possible to say “Install them with the components
facing the front of the S6000” or anything like that because some SIMMs boards have the memory
chips mounted on both sides sometimes. However, the boards can only be inserted one way so
you shouldn’t have any problems but be very careful not to force them into place otherwise they
may snap.
