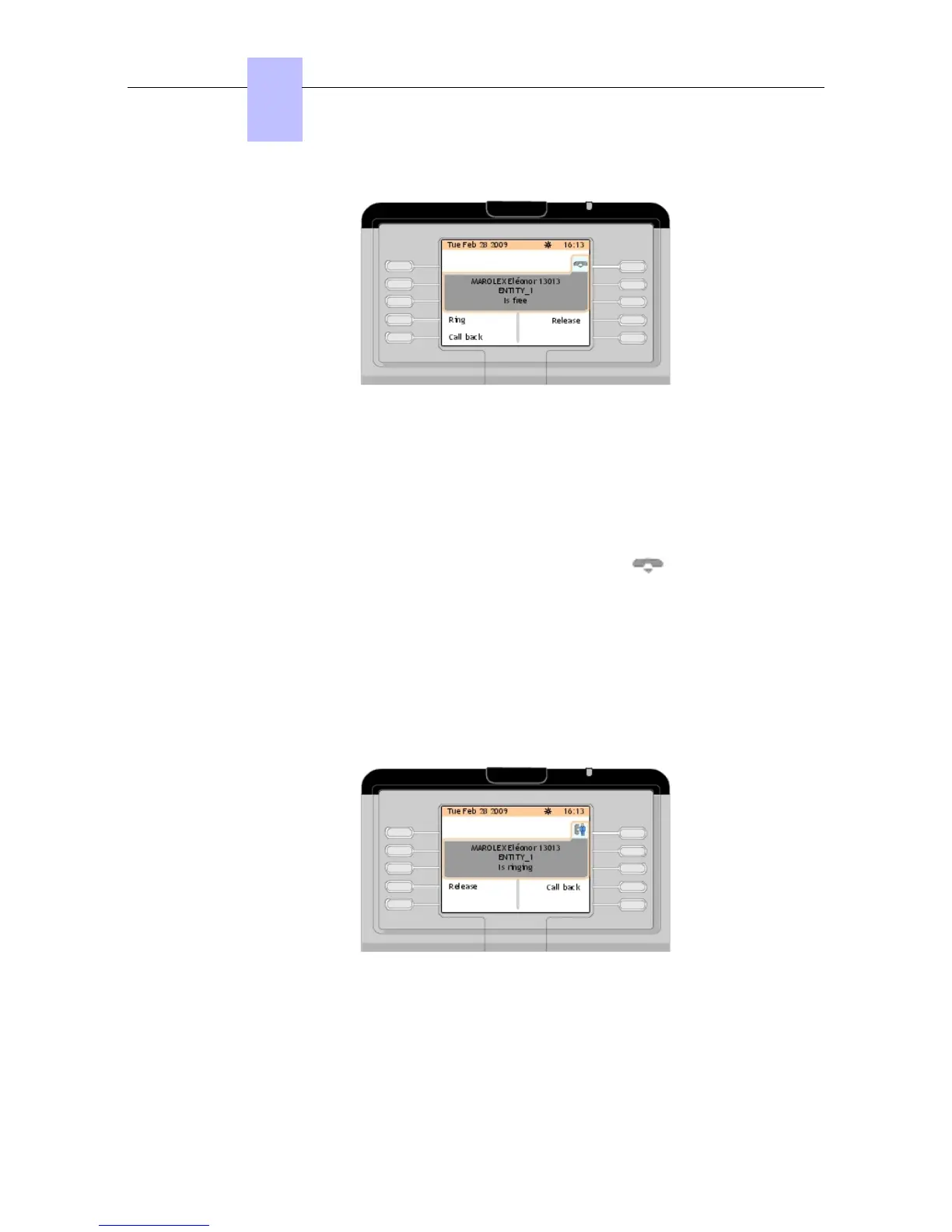

Figure 2.7: Telephone Area Example (the Called Set is Free)
The screen indicates:
- The name and first name of the called party, if known to the system
- The internal directory number of the called party
- The name of the entity to which the called party belongs
- That the selected set is free (also indicated by the symbol " " in the telephone area
tab)
The following softkeys are available:
Ring To activate ringing on the called set
Release To release this user
Call back To send a call-back request to this user
The user set is called by pressing the Ring softkey.
The screen then displays:
Figure 2.8: Call Screen Example
The user answers the call and the screen displays:
Chapter
2
#$ %!#
2-6
! "
