Allen-Bradley 1734-ADN - Chapter 1; Installing the Adapter

Publication 1734-UM002C-EN-P - July 2003
1-2 Installing the 1734-ADN(X) Adapter
Installing the Adapter
To install the adapter on the DIN rail prior to installing other base
units, proceed as follows.

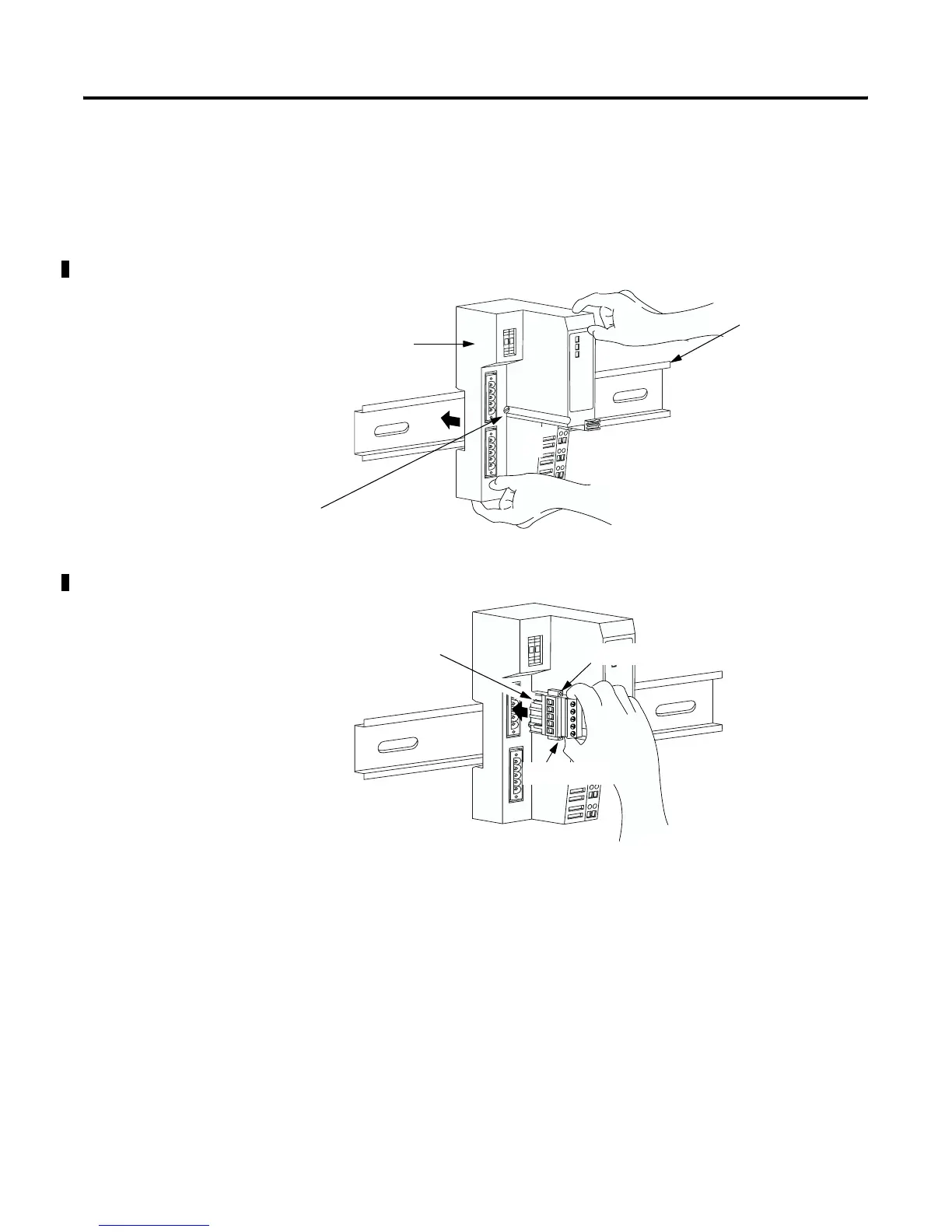

1. Position the adapter vertically in front of the DIN rail.
2. Press firmly to install the adapter on the DIN rail. The locking
mechanism locks the adapter to the DIN rail.
3. Insert the DeviceNet network plug and tighten the
holding screws.
31110-MC
1734-ADN(X) communication interface
DIN rail
Orange screw slot
31111-MC
DeviceNet network plug
Holding screw
Holding screw
