1734-ADNX Quick Start B-15
Browse the Subnet
Look at the Subnet at this point to make things more clear.
1. From the RSNetWorx for DeviceNet main menu, select File>New
and then select DeviceNet Configuration.
2. Click OK.
Now that you have a new DeviceNet project created.
3. Click the Online icon.
Last time you browsed to the 1756-DNB. This time you will
browse a little deeper.

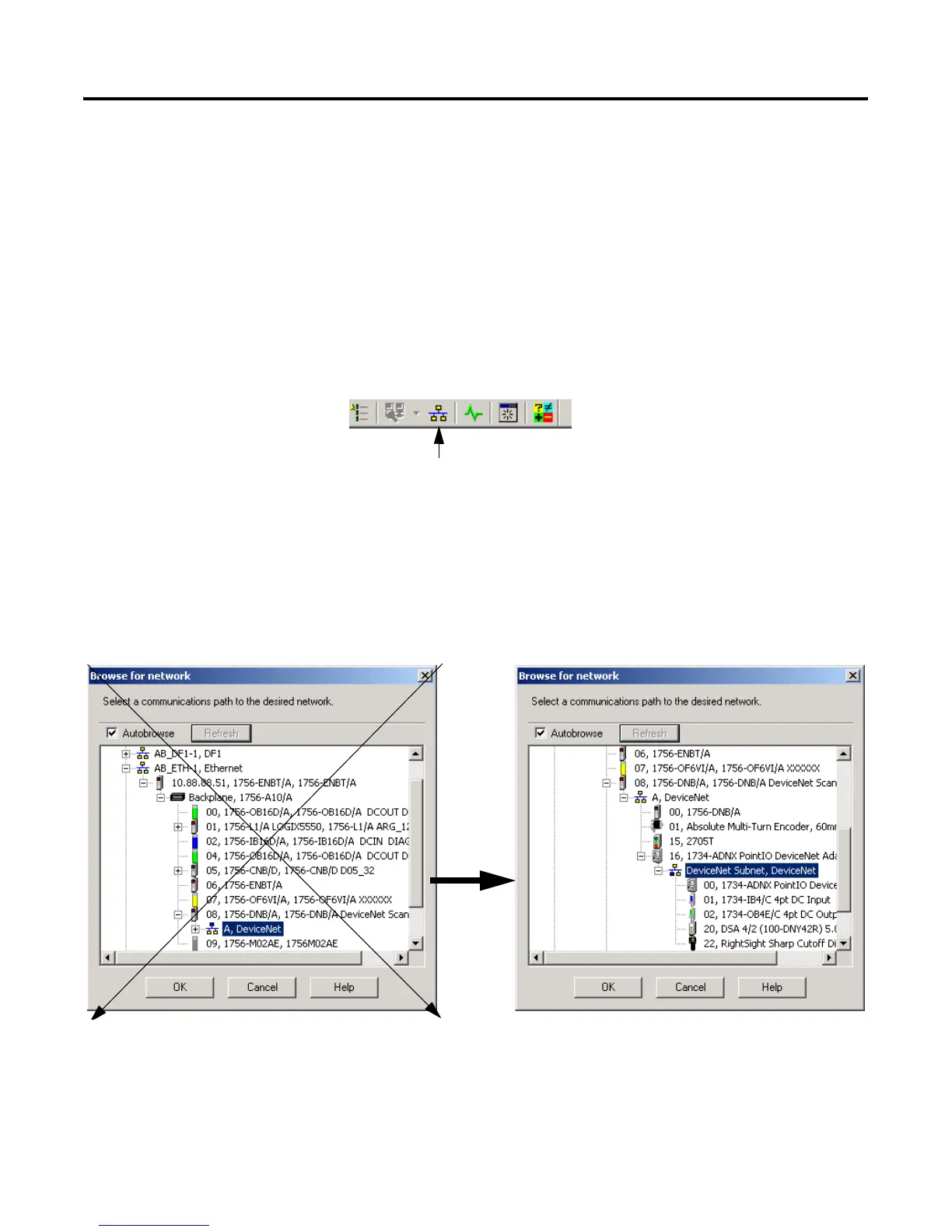

4. Drill down from Ethernet into your ControlLogix demo box
through the backplane to your 1756-DNB in slot 8, channel A,
1734-ADNX and select DeviceNet Subnet as shown below:
5. To go online, click OK to accept the path configuration and then
OK to the prompt.
Wait for the browse to complete.
Last time you browsed the main network This time we will browse the Subnet
To Next Page
