Publication 1734-UM002C-EN-P - July 2003
Configuring the 1734-ADN(X) Adapter’s SubNet 4-3

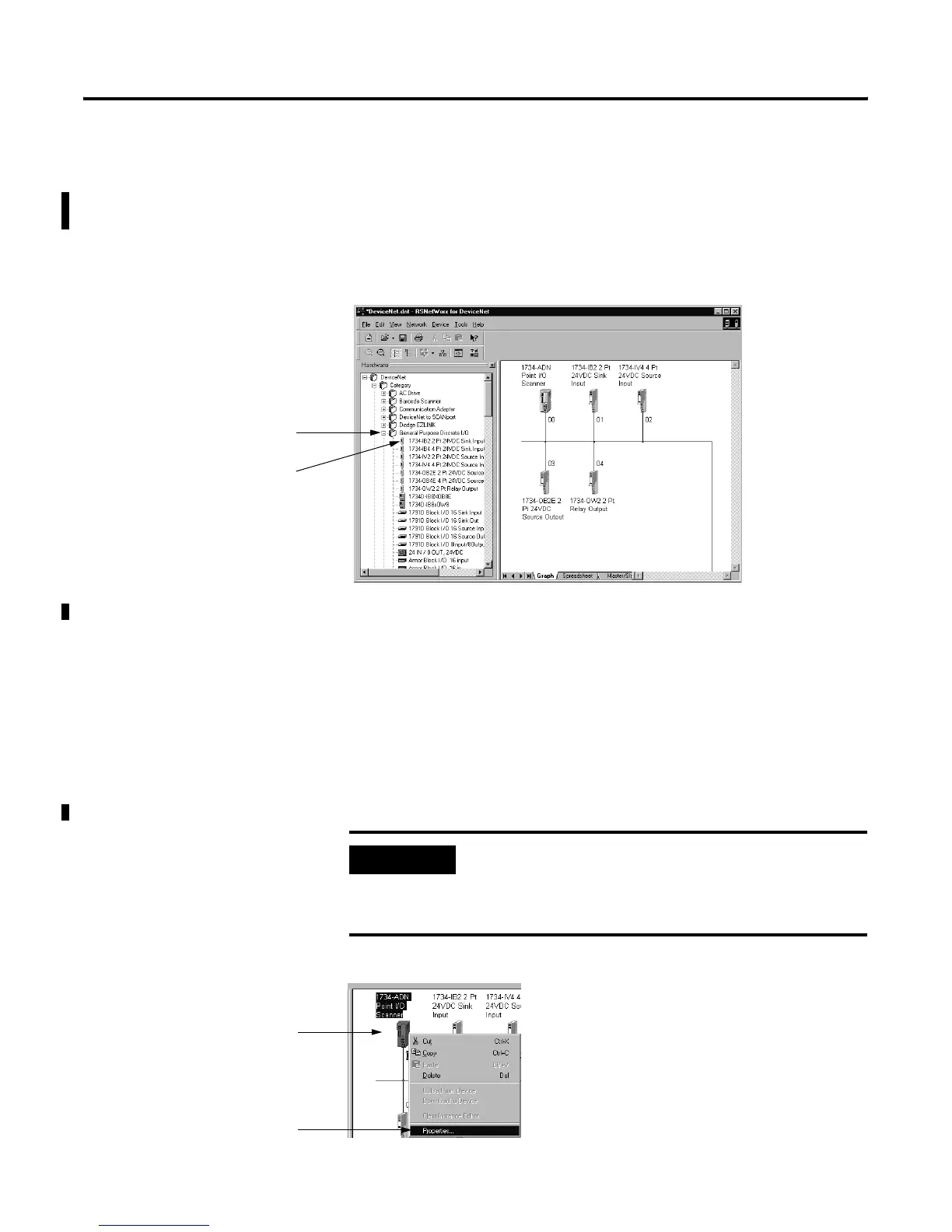

Adding I/O Modules to Your Network
After you add the scanner, you must add the modules connected to
the scanner on the Subnet. In the offline mode, I/O modules must be
added individually. Follow these steps:
1. Add modules as shown below.
You must configure the modules connected to the scanner. For more
information on how to configure POINT I/O modules, see the POINT
I/O Digital and Analog Modules and POINTBlock I/O Modules user
manual, publication 1734-UM001.
Setting the Scanner’s Parameters
After adding it to the network, you must configure the scanner for use
with I/O modules.
1. Configure the adapter as shown below.
1. Select the I/O module you
want to add to the network.
2. Double-click on the catalog
number to add the module.
TIP: You can also click and drag the
module name onto the network.
IMPORTANT
This chapter shows configuration in the offline
mode. Changes set in this mode do not take effect
until the adapter goes online. For more information
on how to go online, see page
4-8.
1. Right-click on the scanner.
2. Click on Properties to
configure your scanner.
TIP: You can also double-click on the scanner
to view the Properties menus.
To Next Page
