4-8 Configuring the 1734-ADN(X) Adapter’s SubNet
Going Online
After you set configuration parameters, your adapter must go online.
Follow these steps:
1. Use the Network pull-down to go online.
The software prompts you to save your configuration changes.
2. Choose your adapter’s network as shown below.
3. Apply the data to your adapter.
Chapter Summary and
What’s Next
In this chapter, you learned how to configure the adapter. Move to
Chapter 5 to learn how to add the 1734-ADN(X) to the DeviceNet
Scanner’s scanlist.

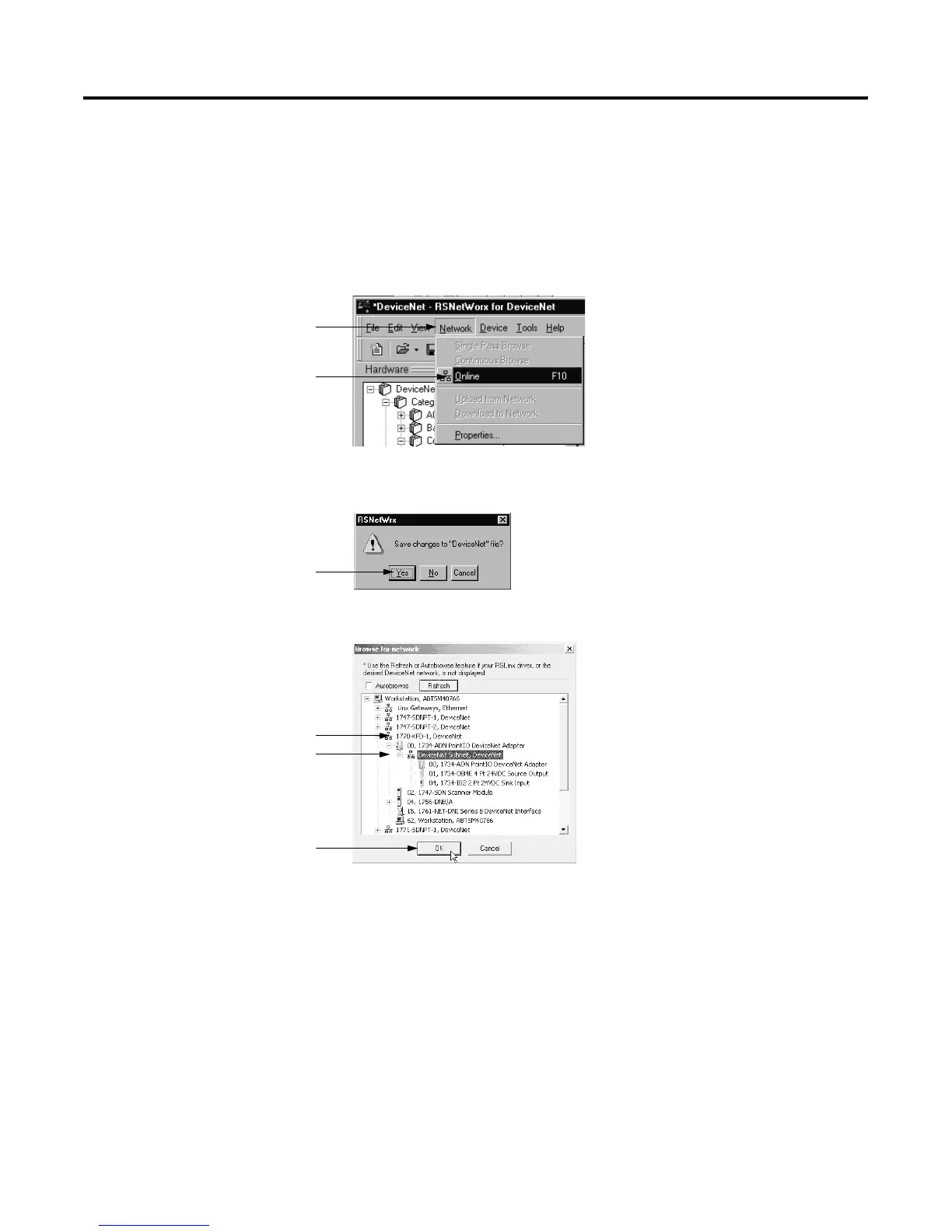

1. Click on Network.
2. Click on Online.
1. Click on Yes.
1. Select the DeviceNet
interface.
2. Select the DeviceNet
Network subnetwork.
This selection accesses
the PointBus to
configure the adapter on
the DeviceNet network.
3. Click here.
