Publication 1734-UM002C-EN-P - July 2003
B-14 1734-ADNX Quick Start

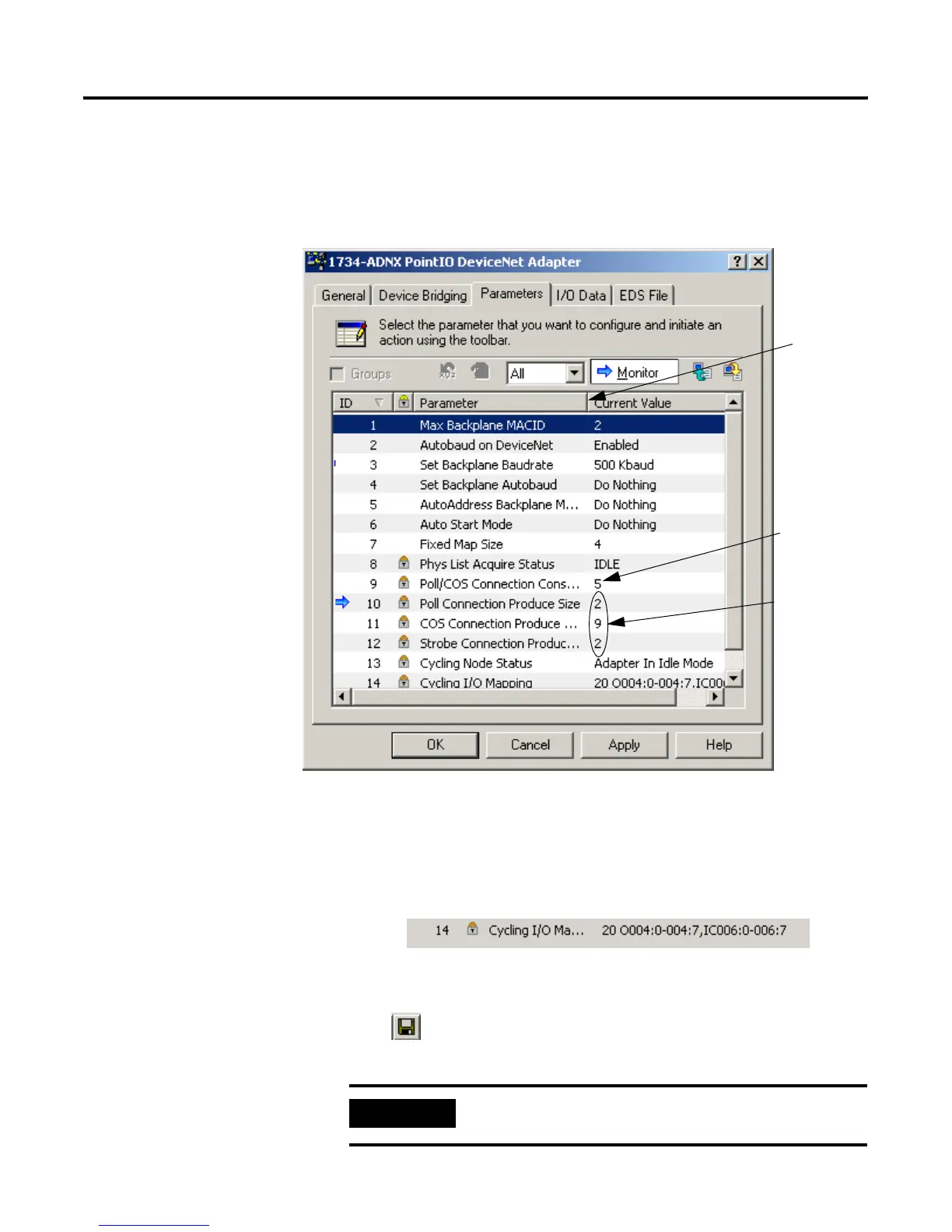

• Parameter 3: Verify the Backplane Baudrate is 500 Kbaud.
If it is not, you will need to find out why and make the
necessary corrections.
• Parameter 9, 10 11 and 12 have been filled in for you.
Note: You do not need to view the Subnet to determine where
the data has been mapped. You can go back to monitor mode
and view parameter 14. The help for this parameter states how
to use the parameter to determine mapping.
7. Press OK to close this window.
8. From the RSNetWorx for DeviceNet main menu, select
File>Save.
Expand the
column to
view all the
text.
Consume size
is data that the
adapter will
consume from
the scanner.
These are the
outputs being
sent from the
scanner to the
POINT I/O
adapter.
Produce size is
data the
1734-ADNX
adapter will
produce for the
1756-DNB
scanner. This
will be
discussed in
more detail
later in this
section.
IMPORTANT
You must save your work before moving on.
