92 Rockwell Automation Publication 2094-UM001J-EN-P - March 2017

Chapter 5 Connect the Kinetix 6000 Drive System

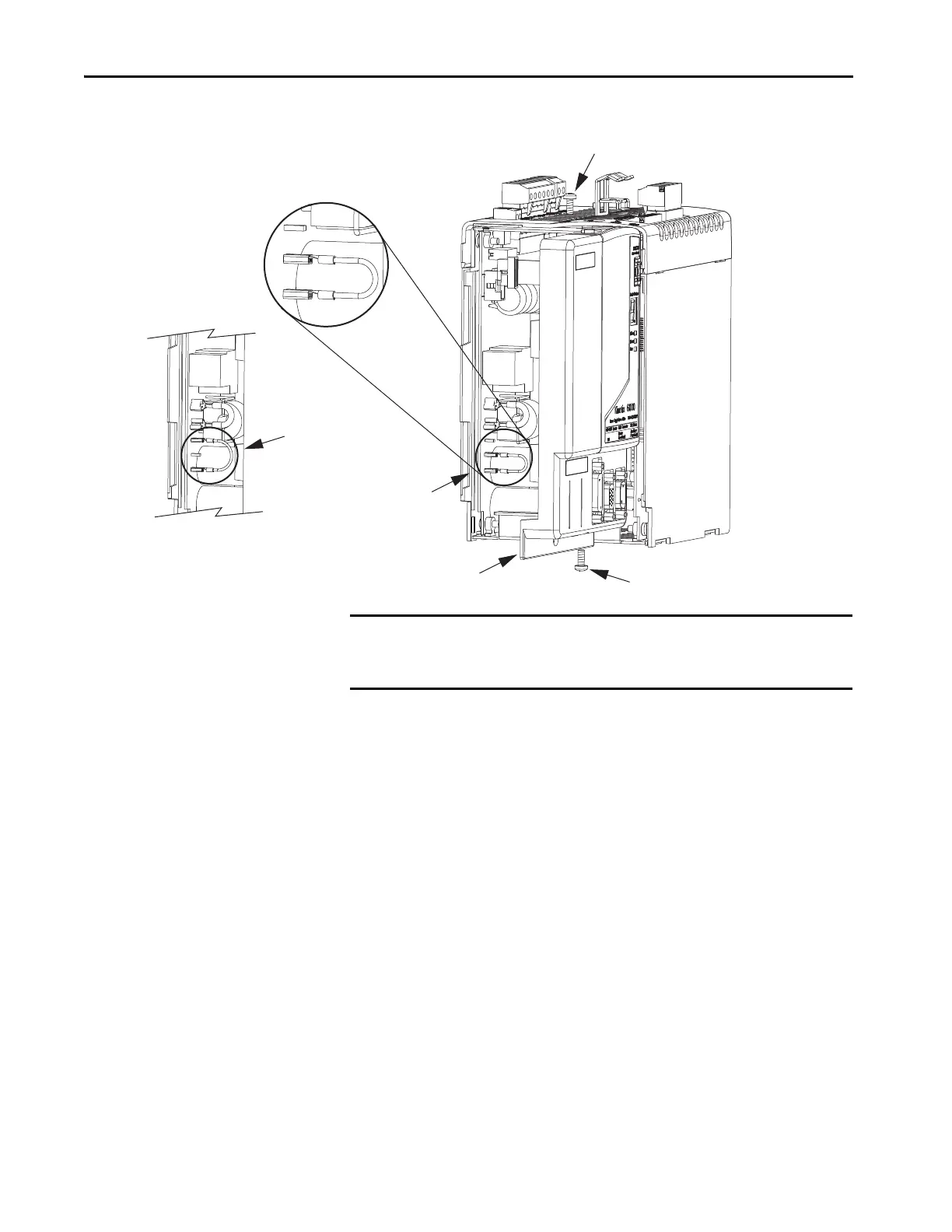

Figure 44 - Setting the Ground Jumper (230V Series A and C IAM modules)

P17

P16

P15

Top Screw

2094-ACxx-Mxx-x

IAM Module (230V)

Bottom Screw

Front Panel (opened)

Ground jumper set

for grounded configuration

(default setting).

Ground jumper set

for ungrounded configuration.

IMPORTANT Use the default jumper setting or remove the jumper entirely for grounded

power configurations. Move the jumper, as shown above, for ungrounded

power.
